TOYOTA CELICA RA64L-BCMSSA / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

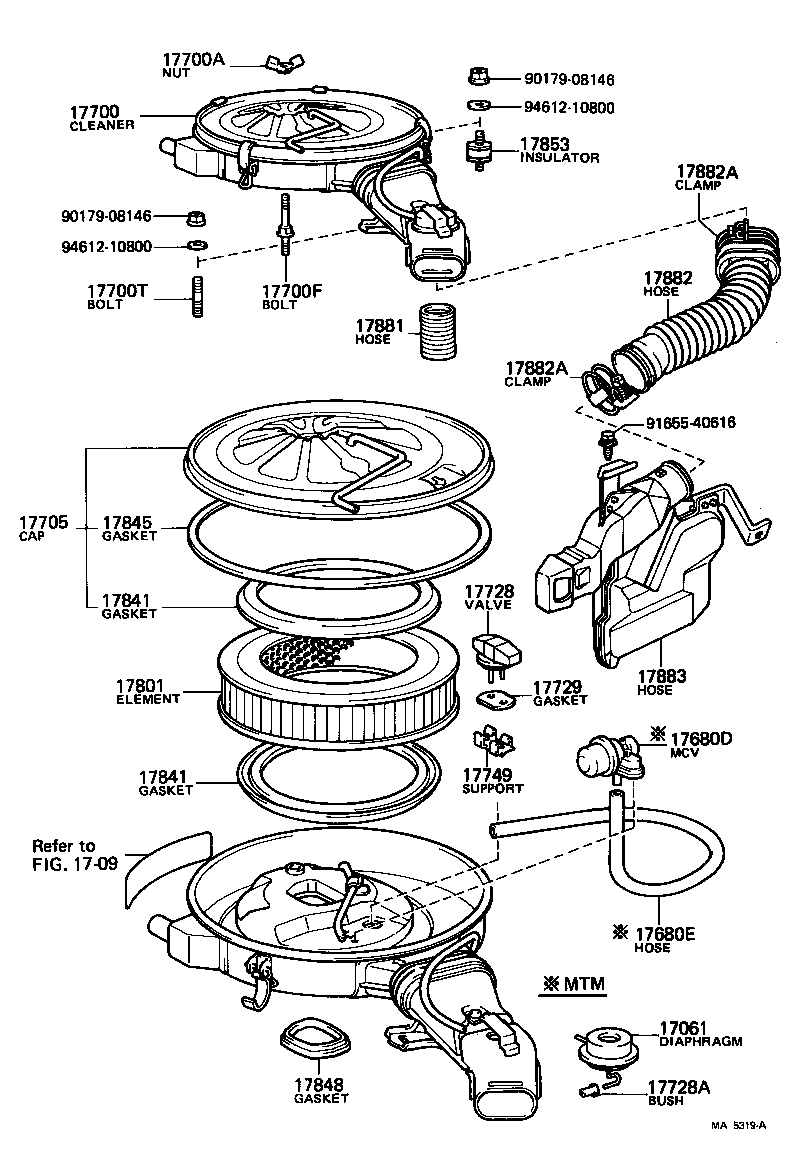

AIR CLEANER

(8108-8308)22R..USA

CELICA | AIR CLEANER 17061 - DIAPHRAGM SUB-ASSY ** Refer Fig 17680D - VALVE ASSY, MIXTURE CONTROL 17680E - HOSE, AIR(FOR MIXTURE CONTROL VALVE) 17700 - CLEANER ASSY, AIR 17700A - NUT, WING(FOR AIR CLEANER) 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) 17700T - BOLT, STUD(FOR AIR CLEANER) 17705 - CAP SUB-ASSY, AIR CLEANER 17728 - VALVE, THERMOSTATIC 17728A - BUSH 17729 - GASKET, THERMOSTAT VALVE 17749 - SUPPORT, THERMOSTAT VALVE 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17841 - GASKET, FILTER ELEMENT 17841 - GASKET, FILTER ELEMENT 17845 - GASKET, AIR CLEANER CAP 17848 - GASKET, AIR CLEANER TO CARBURETOR 17853 - INSULATOR, AIR CLEANER BRACKET 17881 - HOSE, AIR CLEANER, NO.1 17882 - HOSE, AIR CLEANER, NO.2 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17883 - HOSE, AIR CLEANER, NO.3 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
