TOYOTA SUPRA MA70L-BJMVFK / POWERTRAIN-CHASSIS / FRONT STEERING GEAR LINK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

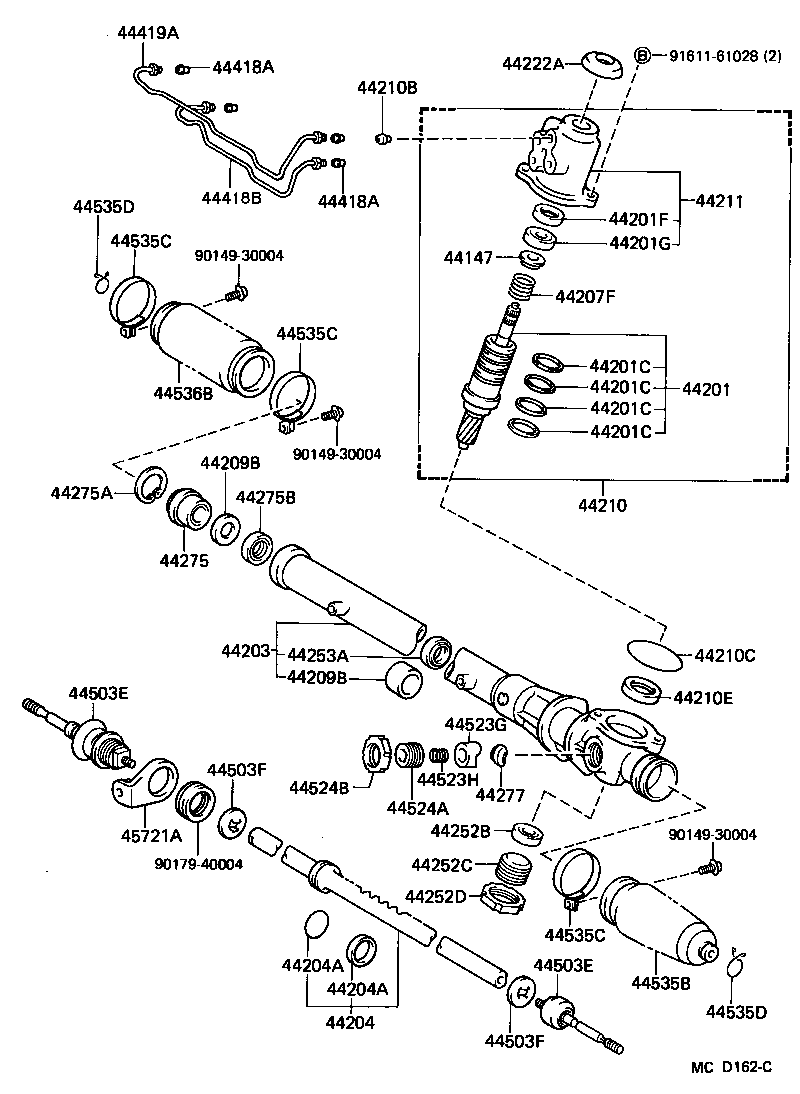

FRONT STEERING GEAR LINK

ILLUST NO. 2 OF 2(8601- )

SUPRA | FRONT STEERING GEAR LINK 44147 - SEAT, SPOOL VALVE SPRING 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201F - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) 44201G - BEARING(FOR POWER STEERING CONTROL VALVE) 44203 - HOUSING SUB-ASSY, POWER STEERING RACK 44204 - RACK SUB-ASSY, POWER STEERING 44204A - RING(FOR RACK STEERING PISTON) 44204A - RING(FOR RACK STEERING PISTON) 44207F - SPRING, CONICAL(FOR VALVE CAP SUB-ASSY) 44209B - SPACER(FOR POWER STEERING CYLINDER HOUSING) 44209B - SPACER(FOR POWER STEERING CYLINDER HOUSING) 44210 - VALVE ASSY, POWER STEERING CONTROL 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) 44211 - HOUSING, CONTROL VALVE 44222A - COVER, DUST(FOR POWER STEERING GEAR) 44252B - BEARING(FOR POWER STEERING PINION) 44252C - CAP(FOR POWER STEERING PINION) 44252D - NUT(FOR POWER STEERING PINION CAP) 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) 44275 - STOPPER, CYLINDER END 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) 44275B - SEAL, OIL(FOR CYLINDER END STOPPER) 44277 - SEAT, RACK GUIDE 44418A - TUBE, STEERING RIGHT TURN PRESSURE 44418A - TUBE, STEERING RIGHT TURN PRESSURE 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) 44419A - TUBE, STEERING LEFT TURN PRESSURE 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) 44523G - GUIDE, RACK(FOR POWER STEERING) 44523H - SPRING(FOR POWER STEERING RACK GUIDE) 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) 44535C - CLAMP(FOR POWER STEERING RACK BOOT) 44535C - CLAMP(FOR POWER STEERING RACK BOOT) 44535C - CLAMP(FOR POWER STEERING RACK BOOT) 44535D - CLIP(FOR POWER STEERING RACK BOOT) 44535D - CLIP(FOR POWER STEERING RACK BOOT) 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) 45721A - BRACKET, STEERING DAMPER, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
