TOYOTA T100 VCK20L-TRSREK / BODY / FRAME

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

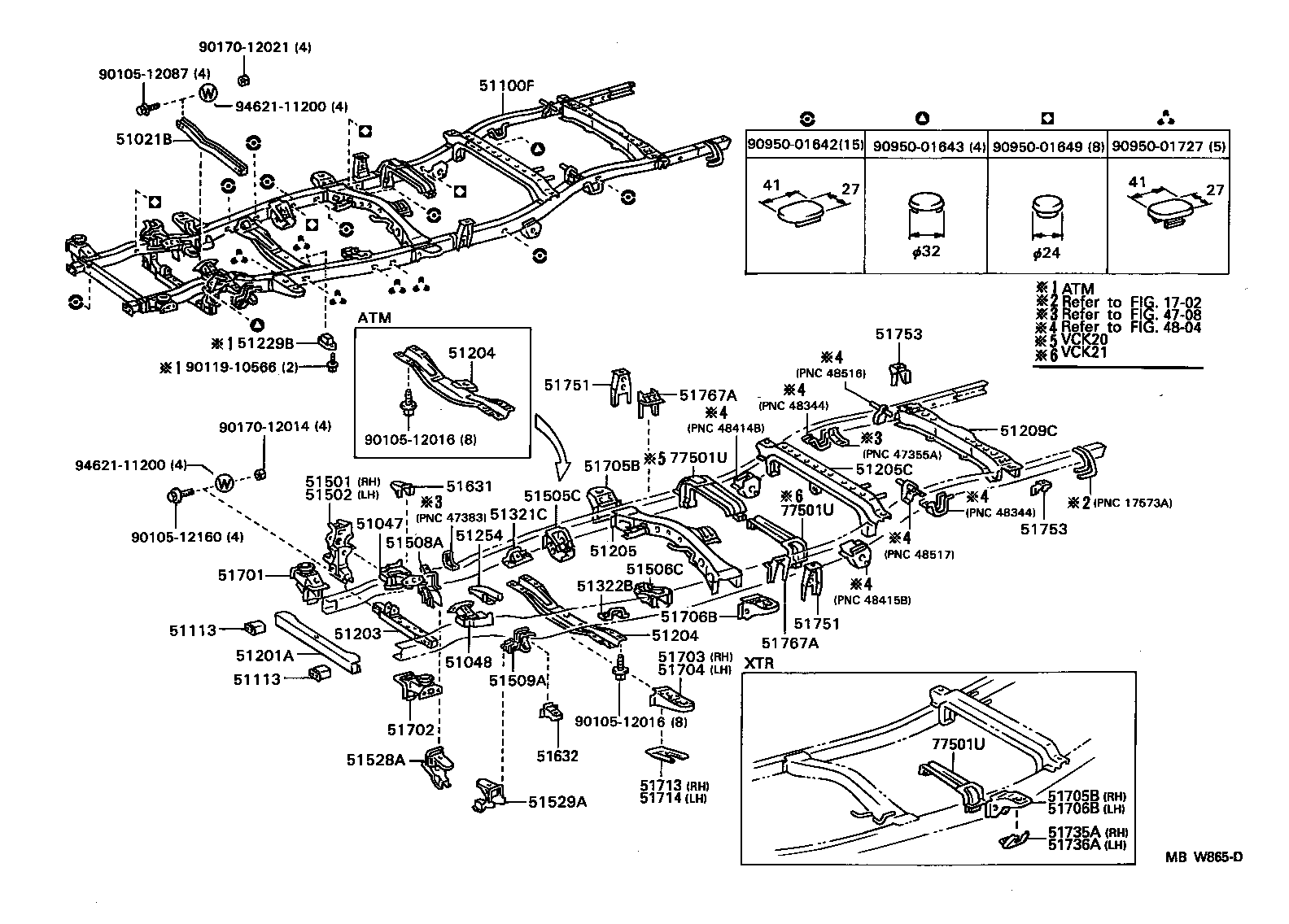

FRAME

(9208-9408)VCK20 ; (9408- )VCK21

T100 | FRAME ** Refer Fig ** Refer Fig ** Refer Fig 51021B - CROSSMEMBER SUB-ASSY, FRAME AUXILIARY 51047 - BRACKET SUB-ASSY, ENGINE MOUNTING & UPPER ARM, RH 51048 - BRACKET SUB-ASSY, ENGINE MOUNTING & UPPER ARM, LH 51100F - FRAME SUB-ASSY 51113 - EXTENSOIN, SIDE RAIL, FRONT 51113 - EXTENSOIN, SIDE RAIL, FRONT 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR 51229B - DUMPER, NO.2 FRAME CROSSMEMBER DYNAMIC 51254 - BRACKET, DIFFERENTIAL SUPPORT, LH 51321C - BRACKET, FRAME NO.2 CROSSMEMBER, RH 51322B - BRACKET, FRAME NO.2 CROSSMEMBER, LH 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH 51505C - SUPPORT SUB-ASSY, ANCHOR ARM, RH 51506C - SUPPORT SUB-ASSY, ANCHOR ARM, LH 51508A - BRACKET SUB-ASSY, LOWER ARM, RH 51509A - BRACKET SUB-ASSY, LOWER ARM, LH 51528A - REINFORCEMENT, LOWER ARM BRACKET, RH 51529A - REINFORCEMENT, LOWER ARM BRACKET, LH 51631 - STOPPER, FRONT SUSPENSION REBOUND, RH 51632 - STOPPER, FRONT SUSPENSION REBOUND, LH 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH 51705B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH 51705B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH 51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH 51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH 51713 - CAP, CAB FRONT MOUNTING BRACKET 51714 - BRACKET, BODY MOUNTING, NO.2 51735A - REINFORCEMENT, CAB REAR MOUNTING, RH 51736A - REINFORCEMENT, CAB REAR MOUNTING, LH 51751 - BRACKET, BODY SUPPORT, NO.1 51751 - BRACKET, BODY SUPPORT, NO.1 51753 - BRACKET, BODY SUPPORT, NO.2 51753 - BRACKET, BODY SUPPORT, NO.2 51767A - BRACKET, FRAME BODY MOUNTING, NO.8 RH 51767A - BRACKET, FRAME BODY MOUNTING, NO.8 RH 77501U - BRACKET SUB-ASSY, FUEL TANK 77501U - BRACKET SUB-ASSY, FUEL TANK 77501U - BRACKET SUB-ASSY, FUEL TANK ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
