TOYOTA T100 VCK20L-TRSREK / POWERTRAIN-CHASSIS / TRANSFER CASE EXTENSION HOUSING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

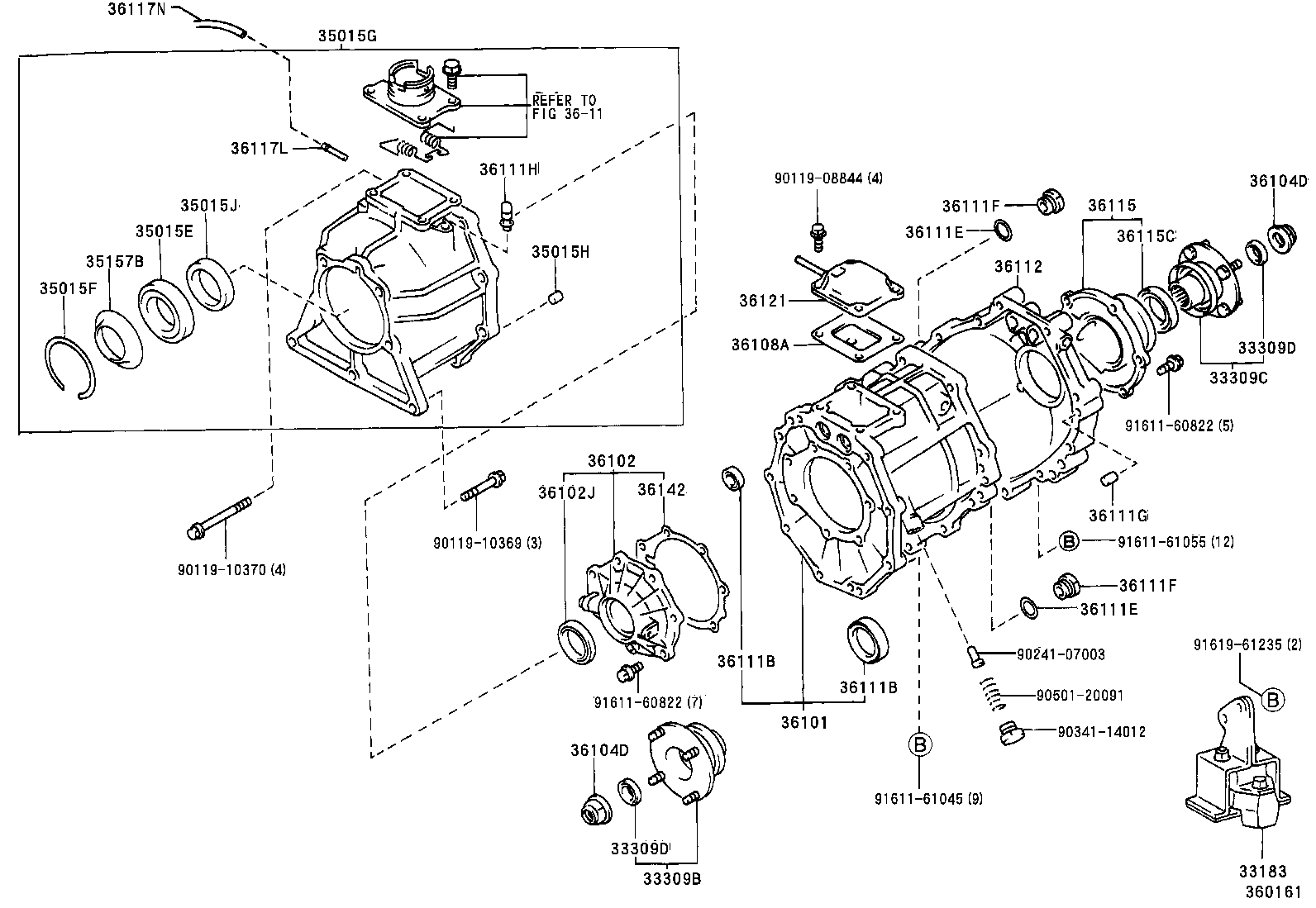

TRANSFER CASE EXTENSION HOUSING

(9208-9601)VCK2#..ATM

T100 | TRANSFER CASE EXTENSION HOUSING 33183 - DAMPER, TRANSFER DYNAMIC 33309B - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION 33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) 35015E - BEARING, RADIAL BALL(FOR TRANSFER CASE ADAPTER) 35015F - RING, HOLE SNAP(FOR TRANSFER ADAPTER) 35015G - ADAPTER, TRANSFER, REAR 35015H - PIN, RING(FOR TRANSFER CASE) 35015J - SEAL, OIL(FOR TRANSFER CASE ADAPTER REAR) 35157B - RECEIVER, TRANSFER CASE REAR ADAPTER OIL 36101 - CASE SUB-ASSY, TRANSFER 36102 - COVER SUB-ASSY, TRANSFER CASE 36102J - SEAL, TYPE T OIL (FOR TRANSFER COVER) 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) 36108A - DEFLECTOR SUB-ASSY, BREATHER OIL ** Refer Fig 36111B - SEAL, OIL (FOR TRANSFER CASE) 36111B - SEAL, OIL (FOR TRANSFER CASE) 36111E - GASKET (FOR TRANSFER CASE) 36111E - GASKET (FOR TRANSFER CASE) 36111F - PLUG (FOR TRANSFER CASE) 36111F - PLUG (FOR TRANSFER CASE) 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) 36111H - PLUG, BREATHER (FOR TRANSFER CASE) 36112 - CASE, TRANSFER, REAR 36115 - HOUSING, TRANSFER EXTENSION 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) 36117L - TUBE(FOR TRANSFER ADAPTER) 36117N - HOSE(FOR TRANSFER ADAPTER) 36121 - COVER, TRANSFER CASE, NO.1 36142 - GASKET, TRANSFER COVER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
