TOYOTA T100 VCK20L-TRSREK / POWERTRAIN-CHASSIS / REAR SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR SPRING SHOCK ABSORBER

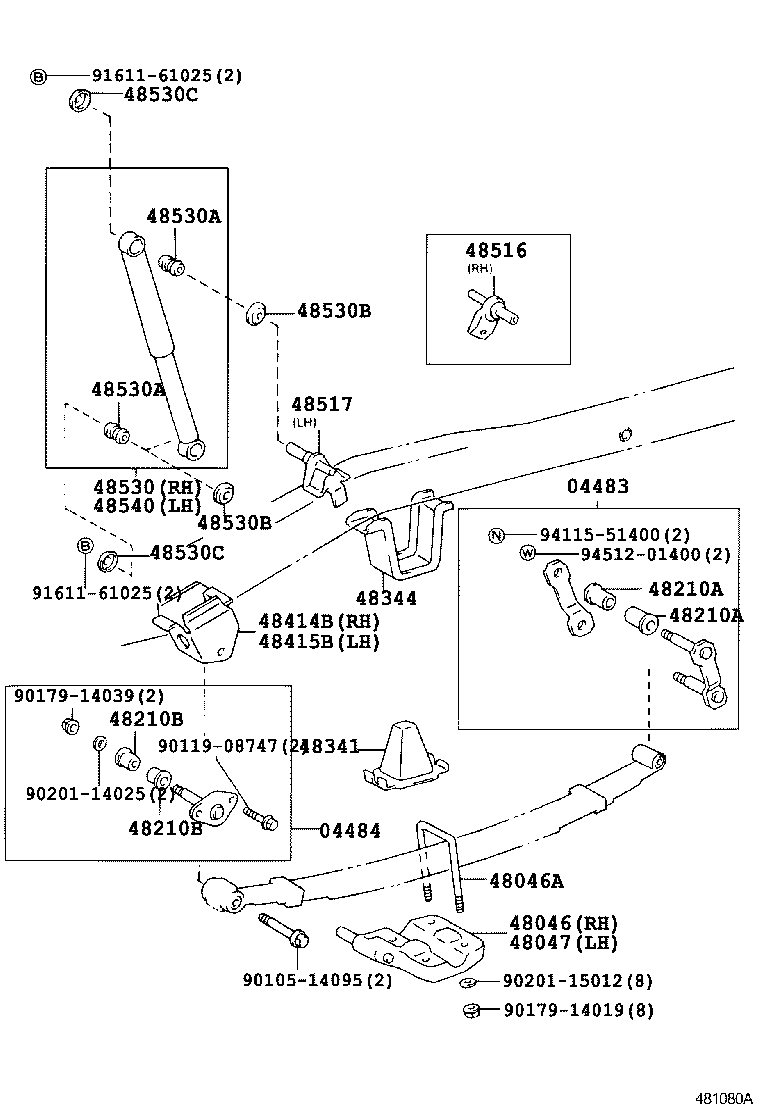

ILLUST NO. 1 OF 2(9208-9508)VCK2#..RCB

T100 | REAR SPRING SHOCK ABSORBER 04483 - SHACKLE KIT, REAR SPRING 04484 - PIN KIT, REAR SPRING 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH 48046A - BOLT, U(FOR REAR SPRING) 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) 48210B - BUSH(FOR REAR SPRING PIN) 48210B - BUSH(FOR REAR SPRING PIN) 48341 - BUMPER, REAR SPRING 48344 - STOPPER, BUMPER, REAR 48414B - BRACKET, SPRING, NO.3 RH 48415B - BRACKET, SPRING, NO.3 LH 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH 48530 - ABSORBER ASSY, SHOCK, REAR RH 48530A - BUSH(FOR REAR SHOCK ABSORBER) 48530A - BUSH(FOR REAR SHOCK ABSORBER) 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 48540 - ABSORBER ASSY, SHOCK, REAR LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
