TOYOTA LAND CRUISER 70 HZJ75RP-MRN / TOOL-ENGINE-FUEL / INJECTION PUMP BODY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

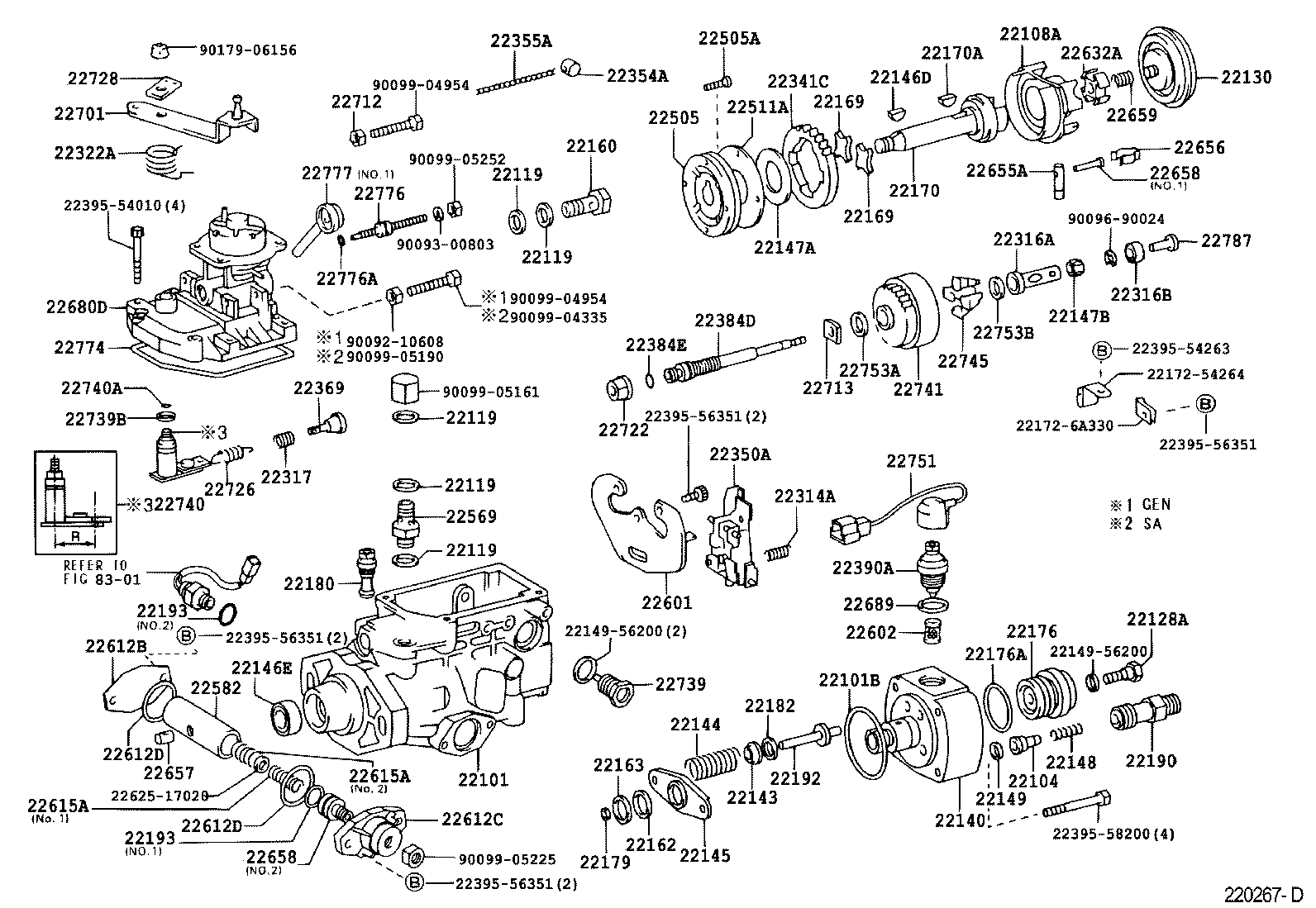

INJECTION PUMP BODY

0..LX ; (9501-9805)1HZ..HZJ75..SA

LAND CRUISER 70 | INJECTION PUMP BODY 22101 - HOUSING SUB-ASSY, INJECTION PUMP 22101B - RING, O(FOR INJECTION PUMP HOUSING) 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY 22108A - RING SUB-ASSY, ROLLER 22119 - WASHER, AIR BLEEDER NIPPLE 22119 - WASHER, AIR BLEEDER NIPPLE 22119 - WASHER, AIR BLEEDER NIPPLE 22119 - WASHER, AIR BLEEDER NIPPLE 22119 - WASHER, AIR BLEEDER NIPPLE 22128A - BOLT, DISTRIBUTIVE HEAD 22130 - CAMPLATE SUB-ASSY, FACE 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP 22143 - SEAT, SPRING UPPER 22144 - SPRING, PUMP PLUNGER 22145 - SEAT, SPRING, LOWER 22146D - KEY(FOR DRIVE GEAR) 22146E - SEAL(FOR DRIVE SHAFT) 22147A - WASHER, DRIVE SHAFT 22147B - RING, GOVERNOR SLEEVE 22148 - SPRING, DELIVERY VALVE 22149 - GASKET, DELIVERY VALVE ** Std Part ** Std Part 22160 - SCREW SUB-ASSY, OVERFLOW 22162 - PLATE, PLUNGER UPPER 22163 - PLATE, PLUNGER LOWER 22169 - JOINT, RUBBER 22169 - JOINT, RUBBER 22170 - SHAFT SUB-ASSY, DRIVE 22170A - KEY(FOR DRIVE SHAFT) ** Std Part ** Std Part 22176 - PLUG, DISTRIBUTIVE HEAD 22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG) 22179 - SHIM, PLUNGER ADJUSTING 22180 - VALVE SUB-ASSY, REGULATOR 22182 - PLATE, TAPPET ADJUSTING SHIM 22190 - VALVE SUB-ASSY, SNUBBER 22192 - GUIDE SUB-ASSY, PLUNGER SPRING 22193 - RING, O(FOR LEVER CONNECTING PIN) 22193 - RING, O(FOR LEVER CONNECTING PIN) 22314A - SPRING, LEVER SUPPORT 22316A - SLEEVE, GOVERNOR 22316B - BEARING, BALL(FOR GOVERNOR SLEEVE) 22317 - SPRING, GOVERNOR DOMPER 22322A - SPRING, RETURN 22341C - GEAR, GOVERNOR DRIVE 22350A - GOVERNOR ASSY, TORQUE CONTROL 22354A - SEAL, ROD 22355A - WIRE, GOVERNOR HOUSING SEAL 22369 - SEAT, GOVERNOR SPRING 22384D - SHAFT, GOVERNOR 22384E - RING, O(FOR GOVERNOR MAIN SHAFT) 22390A - SOLENOID ASSY, FUEL CUT ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 22505 - PUMP SUB-ASSY, FUEL FEED 22505A - SCREW(FOR FUEL FEED PUMP) 22511A - COVER, FEED PUMP 22569 - SCREW, OVERFLOW 22582 - PISTON ASSY, TIMER 22601 - BRACKET SUB-ASSY, IDLE UP 22602 - FILTER SUB-ASSY, FUEL INJECTION PUMP 22612B - COVER, TIMER 22612C - COVER, TIMER 22612D - RING, O(FOR TIMER COVER) 22612D - RING, O(FOR TIMER COVER) 22615A - SPRING, TIMER OUTER 22615A - SPRING, TIMER OUTER ** Std Part 22632A - COUPLING, INJECTION PUMP 22655A - PIN, TIMER SLIDE 22656 - CLIP, TIMER 22657 - CLIP, TIMER 22658 - STOPPER, TIMER 22658 - STOPPER, TIMER 22659 - SPRING, COUPLING 22680D - BELLOWS ASSY, PNEUMATIC 22689 - WASHER(FOR SWIVEL NIPPLE) 22701 - LEVER SUB-ASSY, ADJUSTING 22712 - NUT, ROCK 22713 - WASHER, GOVERNOR GEAR ADJUSTING 22722 - NUT, GOVERNOR SHAFT ROCK 22726 - SPRING, SPEED CONTROL 22728 - GUIDE, RETURN SPRING 22739 - BOLT, GOVERNOR LINK SUPPORT 22739B - WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2) 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) 22741 - HOLDER SUB-ASSY, FLYWEIGHT 22745 - FLYWEIGHT, DISTRIBUTIVE PUMP 22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID 22753A - WASHER, FLYWEIGHT, NO.1 22753B - WASHER, FLYWEIGHT, NO.2 22774 - GASKET, GOVERNOR COVER 22776 - SCREW, SMOKE SET ADJUSTING 22776A - RING, O(FOR SMOKE SET SCREW) 22777 - CAP, RUBBER(FOR BELLOWS) 22787 - PLUG, GOVERNOR SLEEVE ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
