TOYOTA LAND CRUISER 70 KZJ77RV-MNX / TOOL-ENGINE-FUEL / MANIFOLD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

MANIFOLD

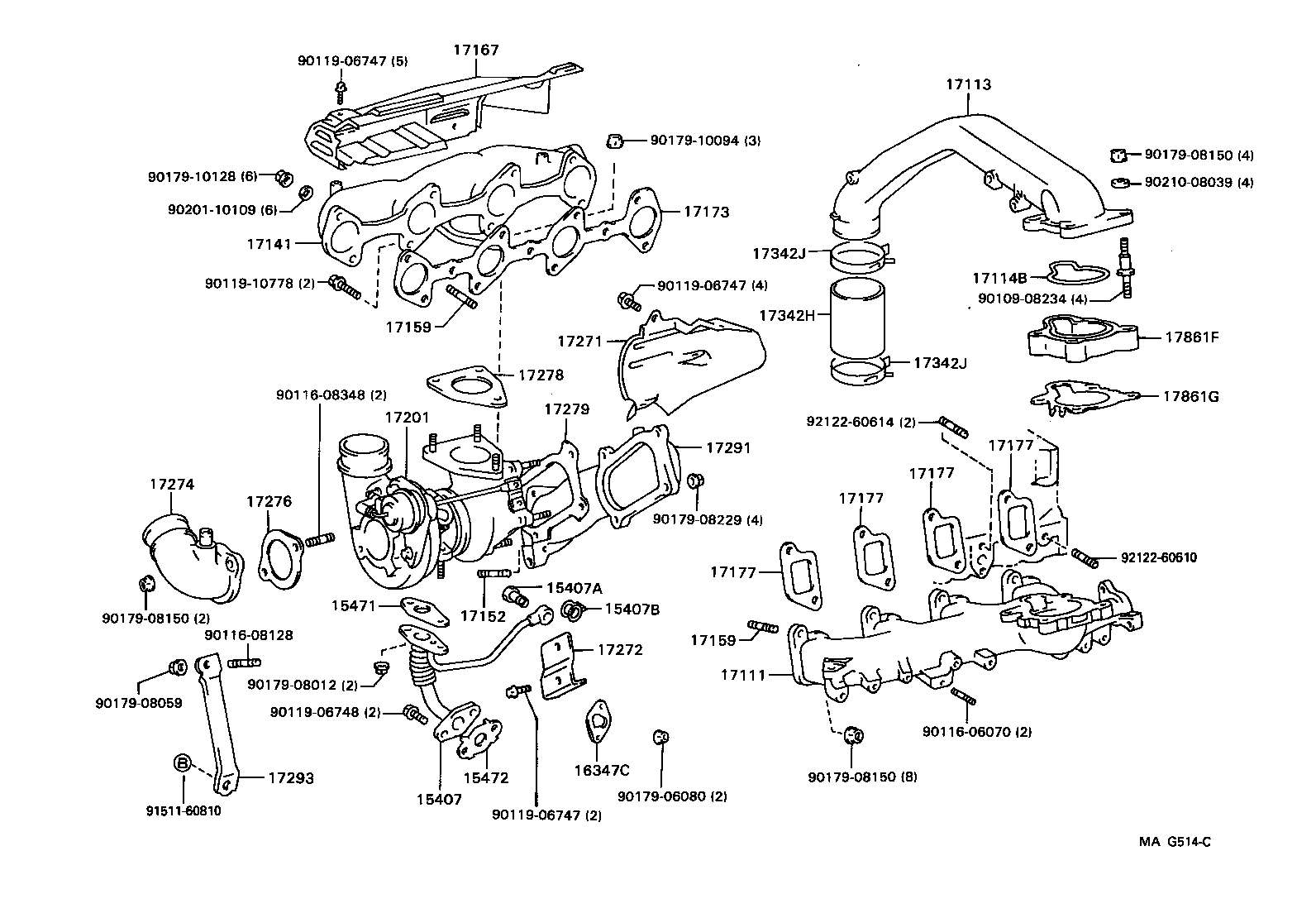

ILLUST NO. 1 OF 2(9305-9604)1KZT

LAND CRUISER 70 | MANIFOLD 15407 - PIPE SUB-ASSY, TURBO OIL INLET 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) 15407B - GASKET(FOR TURBO OIL INLET PIPE) 15471 - GASKET, TURBO OIL INLET 15472 - GASKET, TURBO OIL OUTLET, NO.1 16347C - GASKET(FOR TURBO WATER PIPE) 17111 - MANIFOLD, INTAKE 17113 - PIPE, INTAKE 17114B - GASKET, INTAKE FLANGE 17141 - MANIFOLD, EXHAUST 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 17173 - GASKET, EXHAUST MANIFOLD TO HEAD 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 17201 - TURBOCHARGER SUB-ASSY 17271 - INSULATOR, TURBO, NO.1 17272 - INSULATOR, TURBO, NO.2 17274 - ELBOW, COMPRESSOR INLET 17276 - GASKET, COMPRESSOR INLET 17278 - GASKET, TURBO TO EXHAUST MANIFOLD 17279 - GASKET, TURBINE OUTLET ELBOW 17291 - ELBOW, TURBINE OUTLET 17293 - STAY, TURBOCHARGER 17342H - HOSE, AIR, NO.2(FOR TURBOCHARGER) 17342J - CLIP, HOSE(FOR INTAKE PIPE) 17342J - CLIP, HOSE(FOR INTAKE PIPE) 17861F - CONNECTOR, INTAKE AIR 17861G - GASKET, INTAKE AIR CONNECTOR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
