TOYOTA RAV4 ACA21L-AWPNKA / POWERTRAIN-CHASSIS / REAR AXLE HOUSING DIFFERENTIAL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

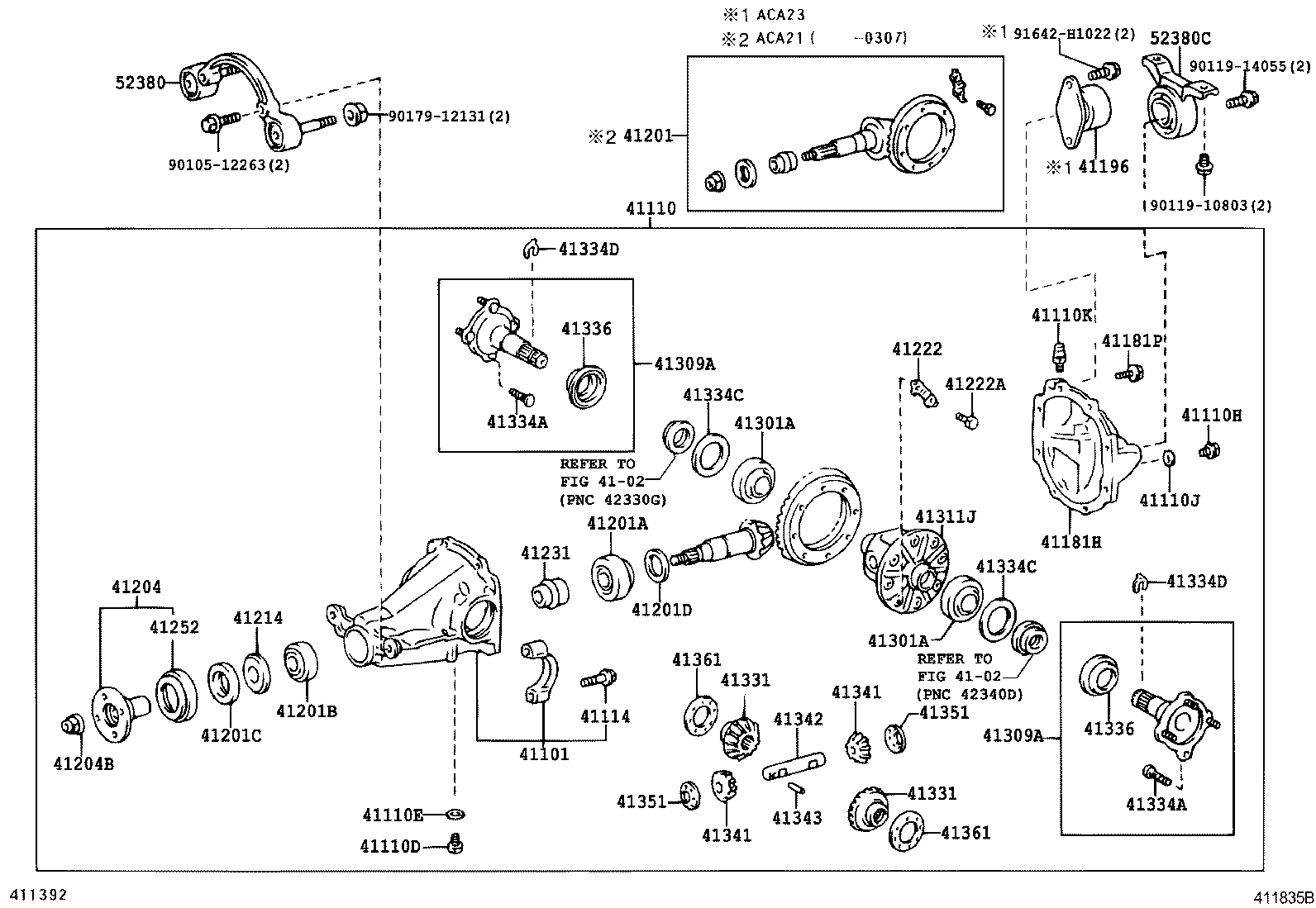

REAR AXLE HOUSING DIFFERENTIAL

(0008- )ACA21,23

RAV4 | REAR AXLE HOUSING DIFFERENTIAL ** Refer Fig ** Refer Fig 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR 41110 - CARRIER ASSY, DIFFERENTIAL, REAR 41110D - PLUG (FOR REAR DIFFERENTIAL DRAIN) 41110E - GASKET (FOR REAR DIFFERENTIAL DRAIN PLUG) 41110H - PLUG (FOR REAR DIFFERENTIAL FILLER) 41110J - GASKET (FOR REAR DIFFERENTIAL FILLER PLUG) 41110K - PLUG, BREATHER (FOR REAR DIFFERENTIAL) 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP 41181H - COVER, REAR DIFFERENTIAL CARRIER 41181P - BOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING) 41196 - DAMPER, REAR DIFFERENTIAL DYNAMIC 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR 41201A - BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION REAR) 41201B - BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION FRONT) 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR 41204B - NUT (FOR REAR DRIVE PINION) 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) 41309A - SHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR 41309A - SHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR 41311J - CASE, REAR DIFFERENTIAL 41331 - GEAR, REAR DIFFERENTIAL SIDE 41331 - GEAR, REAR DIFFERENTIAL SIDE 41334A - BOLT, SERRATION (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41334A - BOLT, SERRATION (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41334D - RING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41334D - RING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41336 - COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41336 - COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41341 - PINION, REAR DIFFERENTIAL 41341 - PINION, REAR DIFFERENTIAL 41342 - SHAFT, REAR DIFFERENTIAL PINION 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 52380 - SUPPORT, REAR DIFFERENTIAL, NO.1 52380C - SUPPORT, REAR DIFFERENTIAL, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
