TOYOTA SEQUOIA UCK35L-GKSSKA / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL INJECTION SYSTEM

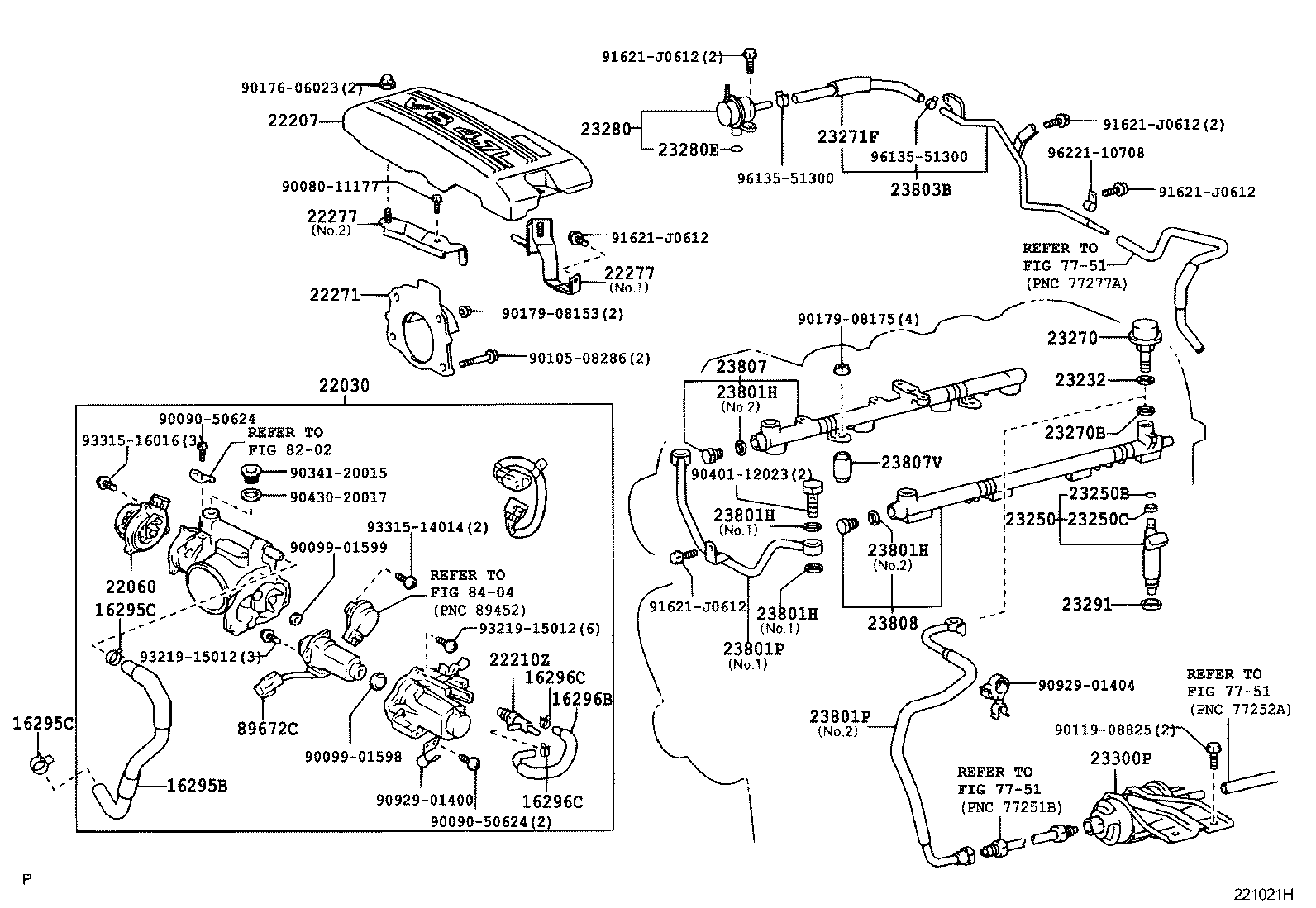

ILLUST NO. 1 OF 2(0009-0208)

SEQUOIA | FUEL INJECTION SYSTEM 16295B - HOSE, WATER BY-PASS, NO.7 16295C - CLIP(FOR WATER BY-PASS HOSE NO.7) 16295C - CLIP(FOR WATER BY-PASS HOSE NO.7) 16296B - HOSE, WATER BY-PASS, NO.8 16296C - CLIP(FOR WATER BY-PASS HOSE NO.8) 16296C - CLIP(FOR WATER BY-PASS HOSE NO.8) 22030 - BODY ASSY, THROTTLE W/MOTOR 22060 - LEVER ASSY, THROTTLE W/SENSOR 22207 - COVER SUB-ASSY, THROTTLE BODY 22210Z - THERMOSTAT, MANIFOLD 22271 - GASKET, THROTTLE BODY 22277 - BRACKET, THROTTLE BODY COVER 22277 - BRACKET, THROTTLE BODY COVER 23232 - GASKET(FOR FUEL PUMP HOSE) 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23250C - GROMMET(FOR FUEL INJECTOR) 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION 23270B - GASKET(FOR PULSATION DAMPER HOSE) 23271F - HOSE, FUEL 23280 - REGULATOR ASSY, FUEL PRESSURE 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) 23291 - INSULATOR, INJECTOR VIBRATION 23300P - FILTER, FUEL(FOR EFI) 23801H - GASKET(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801P - PIPE SUB-ASSY, FUEL, NO.1 23801P - PIPE SUB-ASSY, FUEL, NO.1 23803B - PIPE SUB-ASSY, FUEL, NO.3 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23807V - SPACER, NO.1(FOR DELIVERY PIPE) 23808 - PIPE SUB-ASSY, FUEL DELIVERY, NO.2 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 89672C - MOTOR, THROTTLE CONTROL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
