TOYOTA SOLARA ACV20L-GCPNKA / POWERTRAIN-CHASSIS / THROTTLE LINK VALVE LEVER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

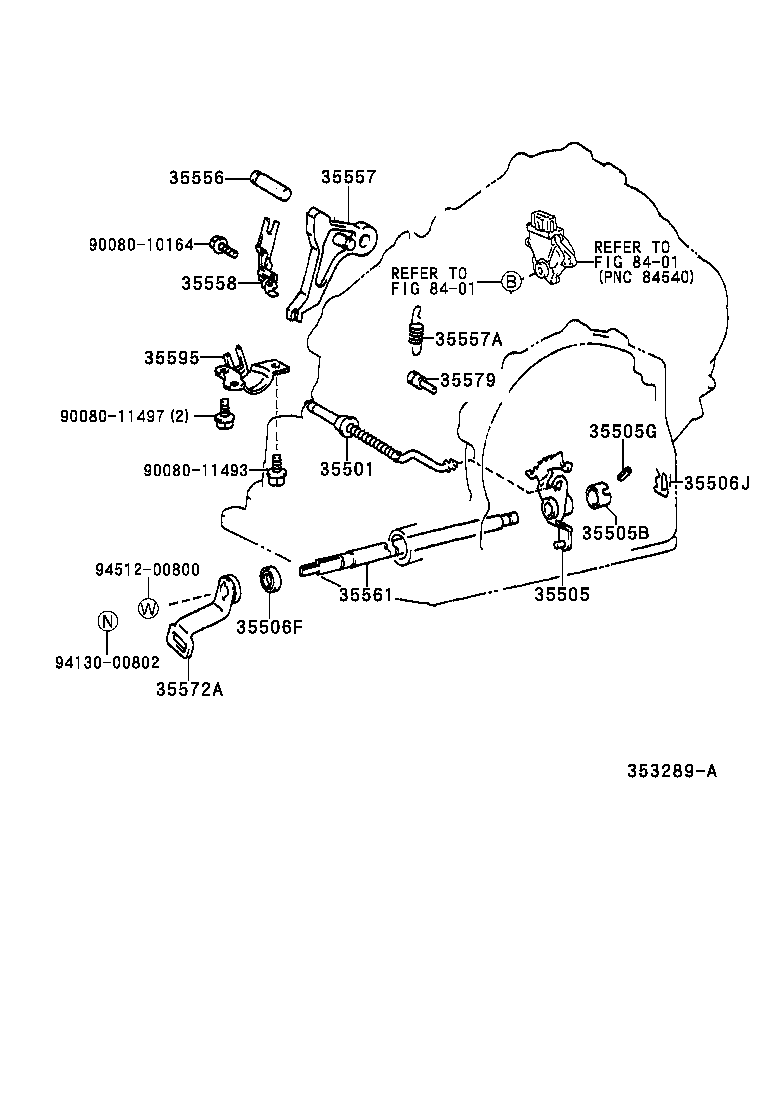

THROTTLE LINK VALVE LEVER ATM

U241E (0107- )ACV20..ATM

SOLARA | THROTTLE LINK VALVE LEVER ATM 35501 - ROD SUB-ASSY, PARKING LOCK 35505 - LEVER SUB-ASSY, MANUAL VALVE 35505B - SPACER (FOR MANUAL VALVE LEVER) 35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER) 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) 35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT) 35556 - SHAFT, PARKING LOCK PAWL 35557 - PAWL, PARKING LOCK 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) 35558 - CLAMP, PAWL SHAFT 35561 - SHAFT, MANUAL VALVE LEVER 35572A - LEVER, TRANSMISSION CONTROL SHAFT 35579 - PIN, PARKING LOCK PAWL 35595 - BRACKET, PARKING LOCK PAWL ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
