TOYOTA HIGHLANDER MCU25L-BWPNKA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

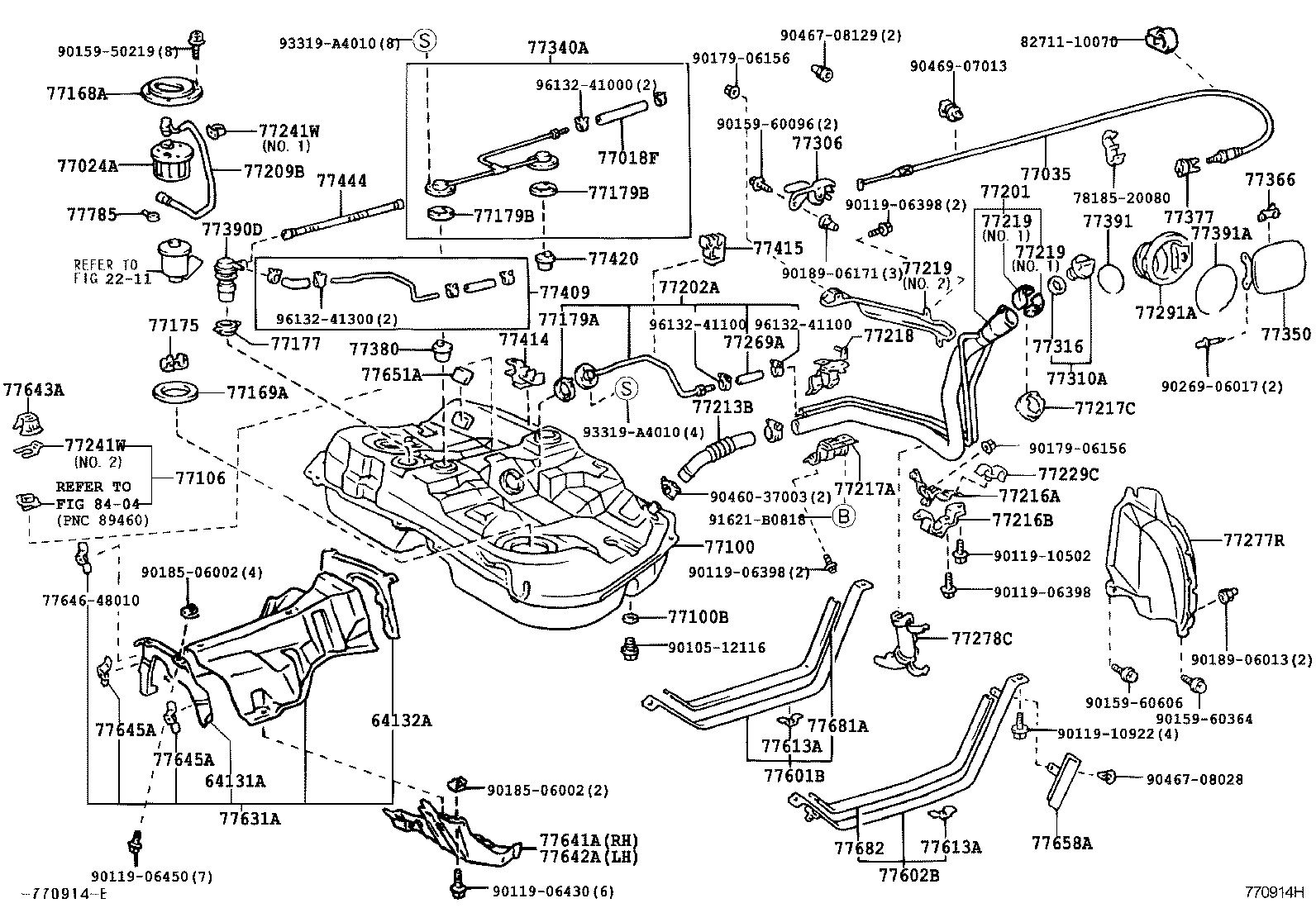

FUEL TANK ILLUST NO. 1 OF 2(0011-0308)

HIGHLANDER | FUEL TANK TUBE ** Refer Fig 64131A - BRACKET, FUEL TANK PROTECTOR, UPPER NO.1 64132A - BRACKET, FUEL TANK PROTECTOR, UPPER NO.2 77018F - HOSE, FUEL TANK EVAPORATION VENT 77024A - PLATE SUB-ASSY, FUEL SUCTION 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77100 - TANK ASSY, FUEL 77100B - GASKET(FOR FUEL TANK) 77106 - PLATE SUB-ASSY, FUEL TANK SIDE, REAR 77168A - PLATE, FUEL TANK VENT TUBE SET 77169A - GASKET, FUEL SUCTION TUBE SET 77175 - SUPPORT, FUEL SUCTION, NO.2 77177 - GASKET, CHECK VALVE 77179A - GASKET, FUEL TANK BREATHER TUBE 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) 77209B - TUBE SUB-ASSY, FUEL PUMP 77213B - HOSE, FUEL TANK TO FILLER PIPE 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77216B - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77218 - PLATE, FUEL INLET PIPE SET 77219 - COVER, FUEL TANK FILLER PIPE 77219 - COVER, FUEL TANK FILLER PIPE 77219 - COVER, FUEL TANK FILLER PIPE 77229C - CLAMP, BREATHER TUBE 77241W - CLIP, TUBE JOINT 77241W - CLIP, TUBE JOINT 77269A - HOSE, FUEL TANK BREATHER 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 77291A - SHIELD, FUEL TANK FILLER PIPE 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77340A - VALVE ASSY, FUEL CUT OFF W/TUBE 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77380 - VALVE ASSY, FUEL CUT OFF 77390D - VALVE ASSY, FUEL TANK OVER FILL CHECK 77391 - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77409 - HOSE SUB-ASSY, FUEL, NO.3 77414 - SUPPORT, FUEL TUBE GROMMET, NO.4 77415 - SUPPORT, FUEL TUBE GROMMET, NO.5 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 77444 - HOSE, FUEL TANK VENT 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH 77613A - BRACKET, FUEL TANK BAND, NO.1 77613A - BRACKET, FUEL TANK BAND, NO.1 77631A - PROTECTOR, FUEL TANK, LOWER CENTER 77641A - PROTECTOR, FUEL TANK, NO.1 77642A - PROTECTOR, FUEL TANK, NO.2 77643A - PROTECTOR, FUEL TANK, NO.3 77645A - RETAINER, FUEL TANK PROTECTOR 77645A - RETAINER, FUEL TANK PROTECTOR ** Std Part 77651A - CUSHION, FUEL TANK, NO.1 77658A - PROTECTOR, FUEL TANK EDGE, NO.1 77681A - SEAT, FUEL TANK BAND 77682 - SEAT, FUEL TANK BAND, LH 77785 - HARNESS, FUEL PUMP ** Std Part ** Std Part ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
