TOYOTA CAMRY NAP MCV31L-CEASKA / POWERTRAIN-CHASSIS / FRONT STEERING GEAR LINK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

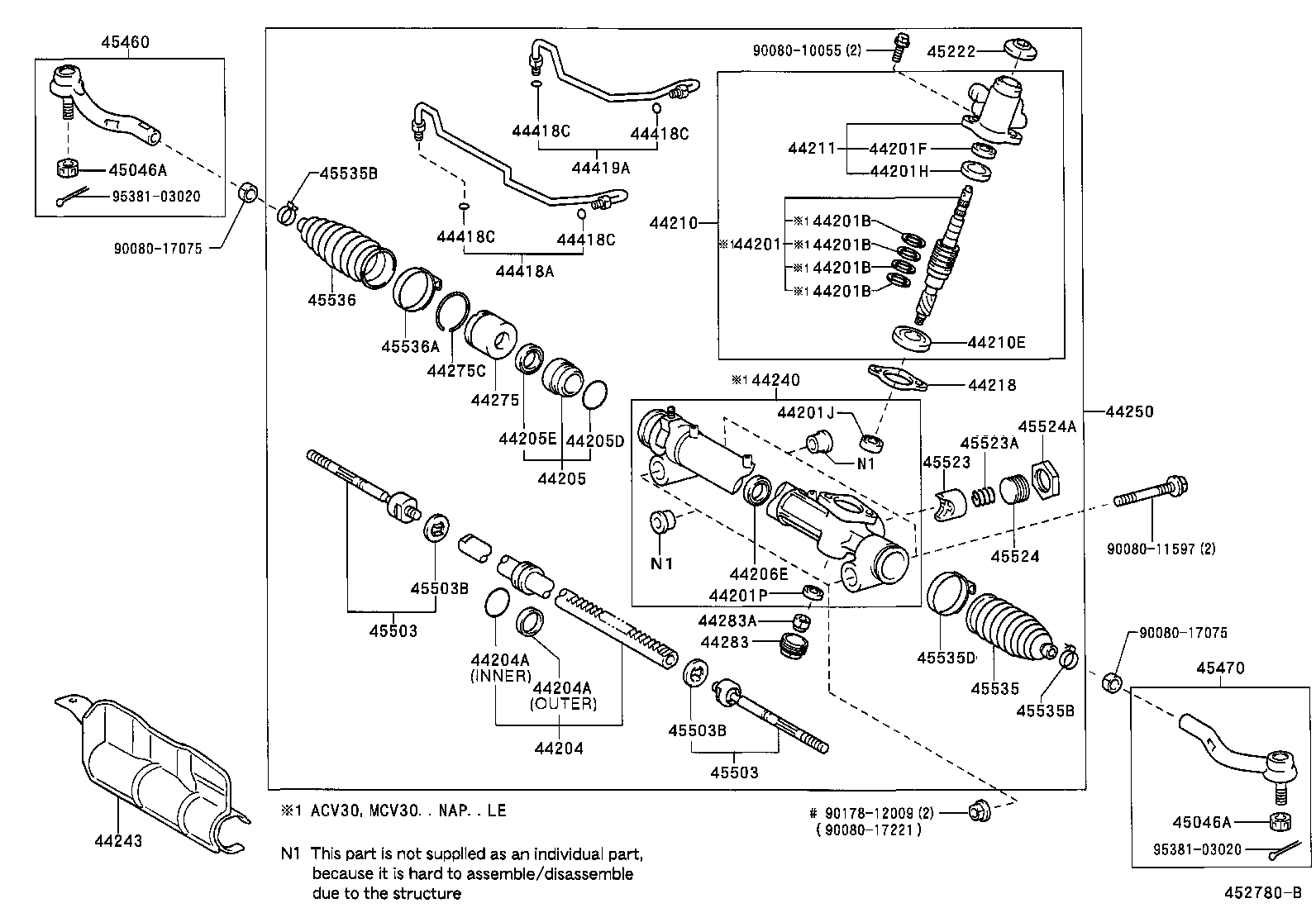

FRONT STEERING GEAR LINK

ILLUST NO. 1 OF 2(0107- )NAP

CAMRY NAP | FRONT STEERING GEAR LINK 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) 44201F - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) 44201J - BEARING(FOR POWER STEERING CONTROL VALVE CENTER) 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) 44204 - RACK SUB-ASSY, POWER STEERING 44204A - RING(FOR RACK STEERING PISTON) 44204A - RING(FOR RACK STEERING PISTON) 44205 - STOPPER SUB-ASSY, CYLINDER END 44205D - RING, O(FOR POWER STEERING RACK BUSH) 44205E - SEAL, OIL(FOR POWER STEERING RACK BUSH) 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) 44210 - VALVE ASSY, POWER STEERING CONTROL 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) 44211 - HOUSING, CONTROL VALVE 44218 - GASKET, VALVE HOUSING 44240 - HOUSING ASSY, POWER STEERING RACK 44243 - INSULATOR, POWER STEERING RACK HOUSING HEAT 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) 44275 - STOPPER, CYLINDER END 44275C - WIRE(FOR CYLINDER END STOPPER) 44283 - CAP, RACK HOUSING 44283A - NUT(FOR RACK HOUSING CAP) 44418A - TUBE, STEERING RIGHT TURN PRESSURE 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) 44419A - TUBE, STEERING LEFT TURN PRESSURE 45046A - NUT, CASTLE(FOR TIE ROD END) 45046A - NUT, CASTLE(FOR TIE ROD END) 45222 - COVER, STEERING GEAR DUST 45460 - ROD ASSY, TIE, RH 45470 - ROD ASSY, TIE, LH 45503 - END SUB-ASSY, STEERING RACK 45503 - END SUB-ASSY, STEERING RACK 45503B - WASHER, CLAW(FOR STEERING RACK END) 45503B - WASHER, CLAW(FOR STEERING RACK END) 45523 - GUIDE, RACK(FOR STEERING GEAR) 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) 45524 - CAP, STEERING RACK GUIDE SPRING 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) 45535 - BOOT, STEERING RACK, NO.1 45535B - CLIP(FOR STEERING RACK BOOT) 45535B - CLIP(FOR STEERING RACK BOOT) 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) 45536 - BOOT, STEERING RACK, NO.2 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
