TOYOTA ECHO NCP13L-AGMRKK / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

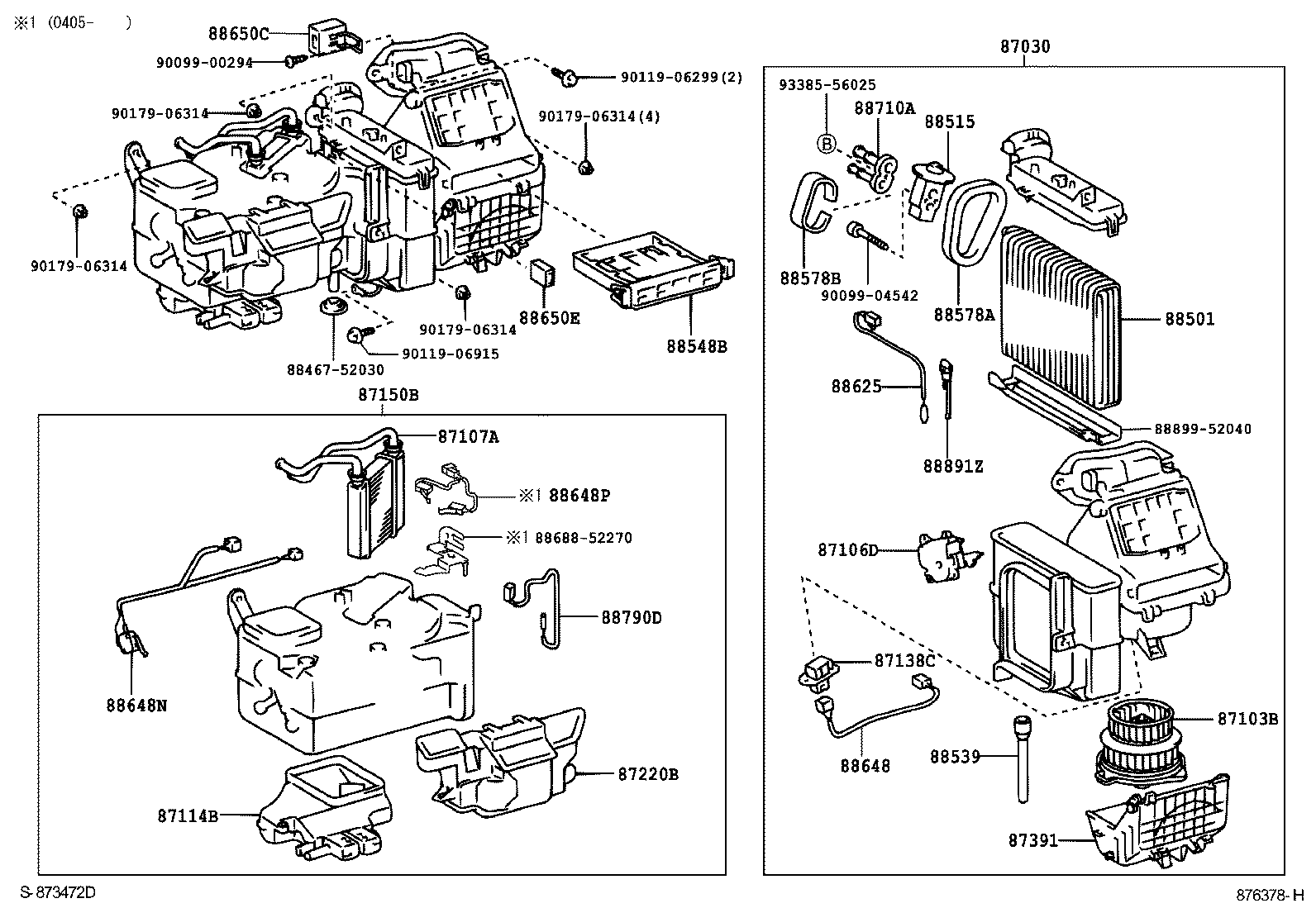

HEATING AIR CONDITIONING COOLER UNIT

ILLUST NO. 1 OF 2(0306- )

ECHO | HEATING AIR CONDITIONING COOLER UNIT 87030 - BLOWER ASSY, AIR CONDITIONER 87103B - MOTOR SUB-ASSY, BLOWER W/FAN 87106D - SERVO SUB-ASSY, DAMPER, NO.1 87107A - UNIT SUB-ASSY, HEATER RADIATOR 87114B - COVER, HEATER 87138C - RESISTOR, BLOWER 87150B - RADIATOR ASSY, HEATER 87220B - DUCT ASSY, AIR 87391 - COVER, BLOWER MOTOR ** Std Part 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 88515 - VALVE, COOLER EXPANSION 88539 - HOSE, COOLER UNIT DRAIN, NO.1 88548B - CASE, AIR FILTER 88578A - PACKING, COOLER STABILIZER AMPLIFIER 88578B - PACKING, COOLING UNIT, NO.1 88625 - THERMISTOR, COOLER, NO.1 88648 - WIRING, COOLER, NO.1 88648N - WIRING, COOLER, NO.2 88648P - WIRE,AIR CONDITIONER,NO.1 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 ** Std Part 88710A - TUBE ASSY, AIRCONDITIONER 88790D - THERMISTOR ASSY 88891Z - BRACKET, COOLER THERMISTOR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
