TOYOTA PRIUS NHW20L-AHEEBK / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

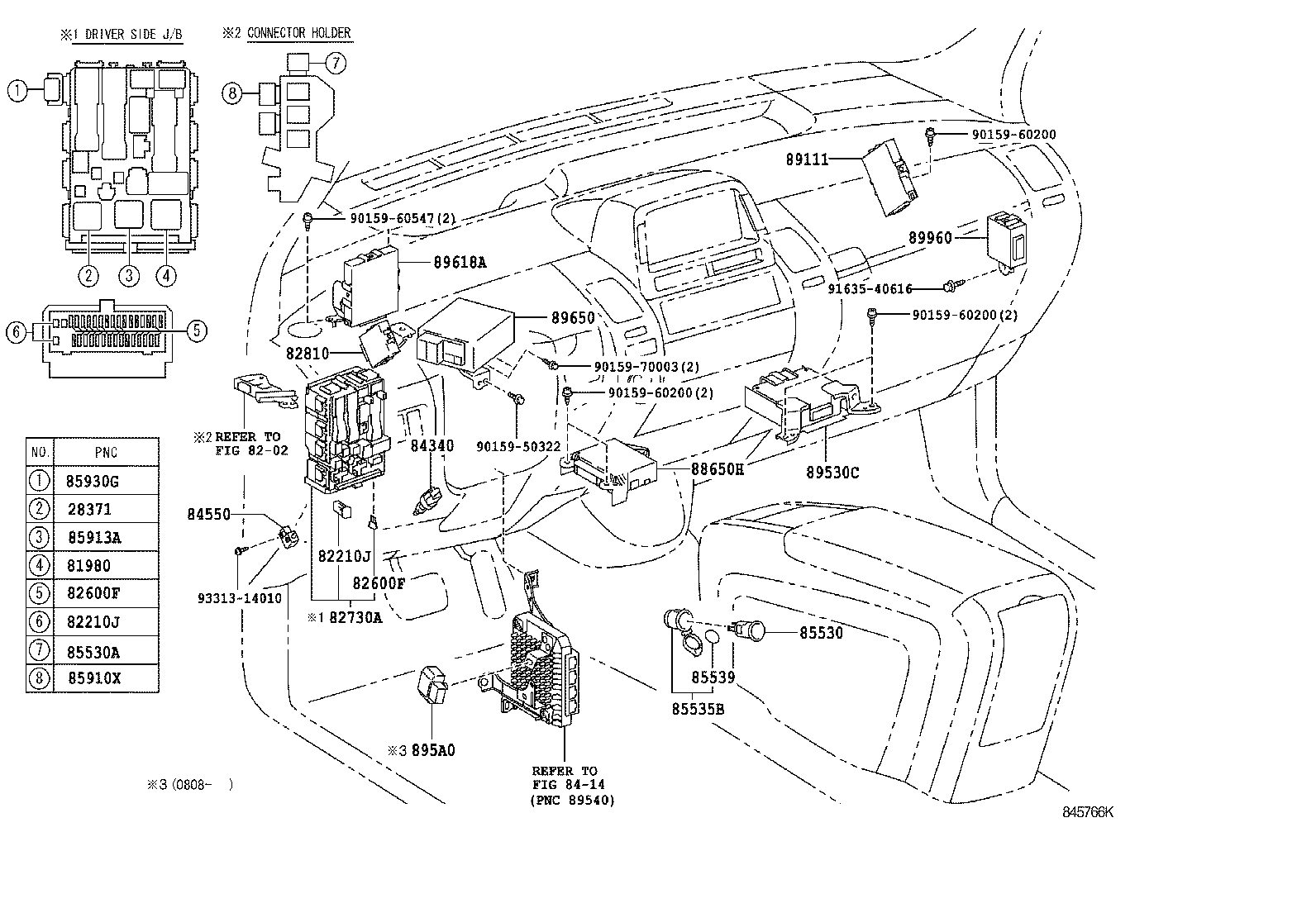

COWL ILLUST NO. 3 OF 6(0308- )

 PRIUS |  SWITCH RELAY COMPUTER 28371 - RELAY, IGNITION, NO.1 81980 - FLASHER ASSY, TURN SIGNAL 82210J - FUSIBLE LINK 82210J - FUSIBLE LINK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION 82810 - RELAY ASSY, RUNNING LIGHT ** Refer Fig 84340 - SWITCH ASSY, STOP LAMP 84550 - SWITCH ASSY, PARKING BRAKE 85530 - SOCKET ASSY, POWER OUTLET, NO.1 85530A - RELAY, POWER OUTLET SOCKET 85535B - COVER, POWER OUTLET SOCKET, NO.1 85539 - LABEL, POWER OUTLET NOTICE 85910X - RELAY, HEATER MIRROR 85913A - RELAY, HEATER CONTROL 85930G - RELAY, ACC 88650H - AMPLIFIER ASSY, AIR CONDITIONER 89111 - COMPUTER, NETWORK GATEWAY 89530C - COMPUTER ASSY, TRANSMISSION CONTROL 895A0 - RELAY ASSY, STOP LAMP CONTROL 89618A - COMPUTER, POWER SOURCE CONTROL 89650 - COMPUTER ASSY, POWER STEERING 89960 - COMPUTER ASSY, HEADLAMP LEVELING  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
