TOYOTA PRIUS NHW20L-AHEEBK / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

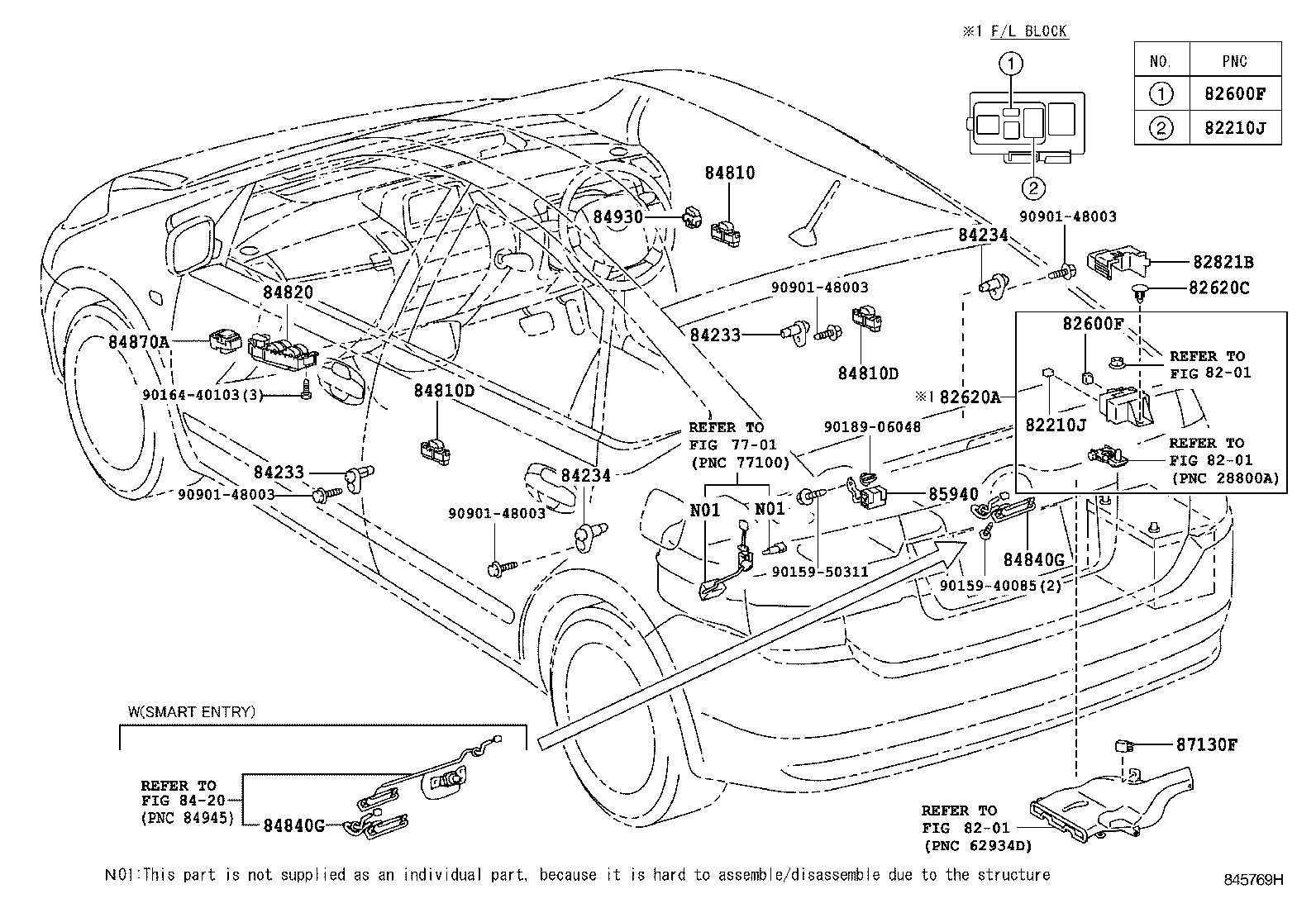

DOOR,ROOF,FLOOR & LUGGAGE ILLUST NO. 6 OF 6(0308- )

 PRIUS |  SWITCH RELAY COMPUTER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 82210J - FUSIBLE LINK 82210J - FUSIBLE LINK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82620A - BLOCK ASSY, FUSIBLE LINK 82620C - CLIP 82821B - COVER, CONNECTOR ** Refer Fig 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 84810 - SWITCH ASSY, POWER WINDOW REGULATOR 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR 84840G - SWITCH ASSY, BACK DOOR OPENER 84840G - SWITCH ASSY, BACK DOOR OPENER 84870A - SWITCH ASSY, OUTER MIRROR 84930 - SWITCH ASSY, DOOR CONTROL 85940 - RELAY ASSY, WINDSHIELD WIPER 87130F - RELAY, BATTERY BLOWER, NO.1  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
