TOYOTA SCION TC ANT10L-ALPGKA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

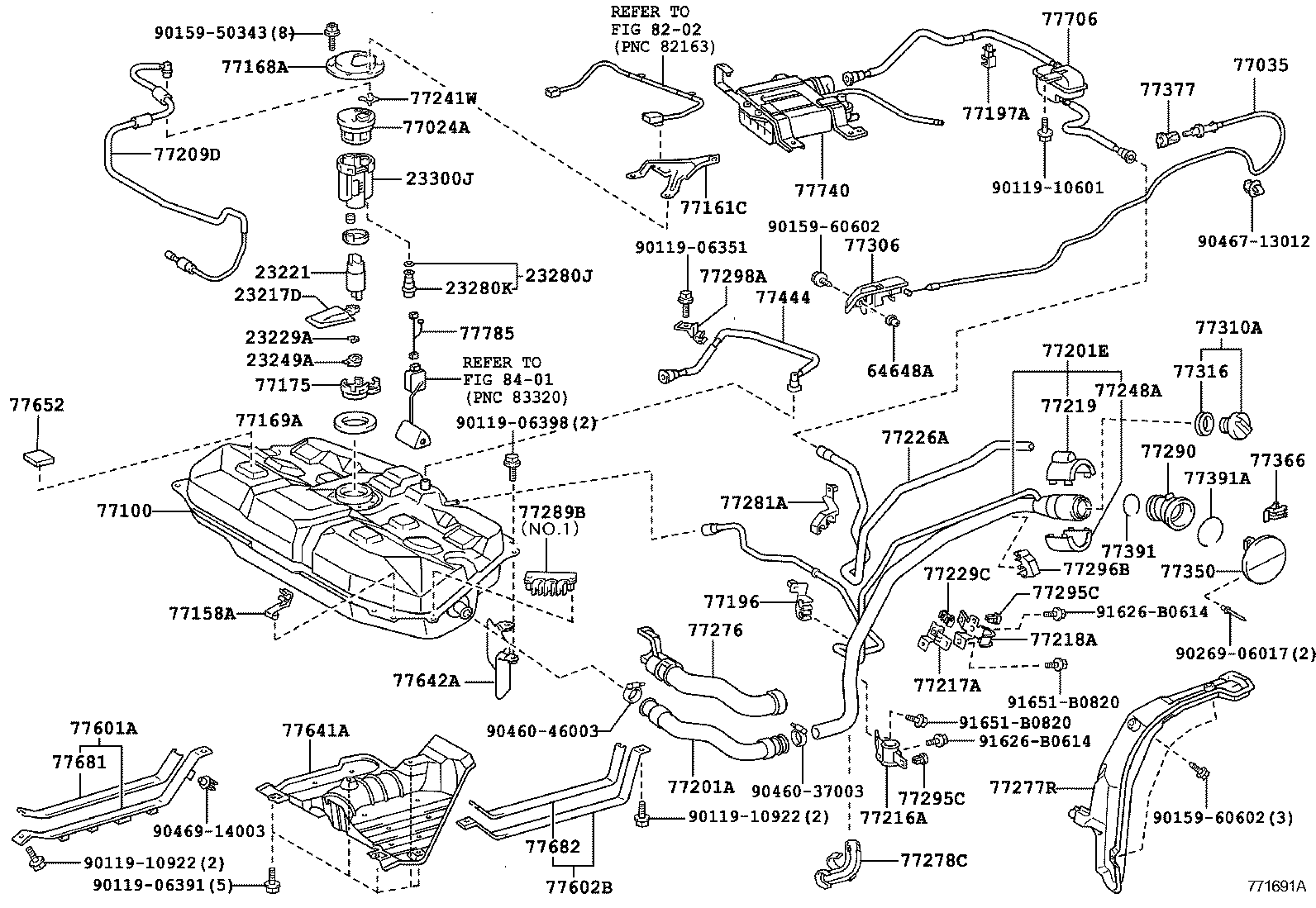

FUEL TANK ILLUST NO. 1 OF 2(0405- )

SCION TC | FUEL TANK TUBE 23217D - FILTER, FUEL PUMP 23221 - PUMP, FUEL 23229A - CLIP(FOR FUEL PUMP FILTER) 23249A - RUBBER, CUSHION(FOR FUEL PUMP) 23280J - REGULATOR ASSY, FUEL PRESSURE 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23300J - FILTER ASSY, FUEL 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER 77024A - PLATE SUB-ASSY, FUEL SUCTION 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77100 - TANK ASSY, FUEL 77158A - SUPPORT, TANK SUCTION TUBE 77161C - PROTECTOR, FUEL TANK, LOWER 77168A - PLATE, FUEL TANK VENT TUBE SET 77169A - GASKET, FUEL SUCTION TUBE SET 77175 - SUPPORT, FUEL SUCTION, NO.2 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) 77201E - PIPE SUB-ASSY, FUEL TANK FILLER 77209D - TUBE SUB-ASSY, FUEL TANK MAIN 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 77219 - COVER, FUEL TANK FILLER PIPE 77226A - TUBE, FUEL TANK BREATHER, NO.6 77229C - CLAMP, BREATHER TUBE 77241W - CLIP, TUBE JOINT 77248A - HOLDER, FUEL TANK FILLER PIPE COVER 77276 - PROTECTOR, FUEL HOSE 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 77281A - CLAMP, FUEL FILLER PIPE 77289B - CLAMP, FUEL TUBE, NO.3 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE 77295C - GROMMET, FUEL TUBE 77295C - GROMMET, FUEL TUBE 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 77298A - CLAMP, FUEL TUBE, NO.4 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77391 - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77444 - HOSE, FUEL TANK VENT 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH 77641A - PROTECTOR, FUEL TANK, NO.1 77642A - PROTECTOR, FUEL TANK, NO.2 77652 - CUSHION, FUEL TANK, NO.1 77681 - SEAT, FUEL TANK BAND, RH 77682 - SEAT, FUEL TANK BAND, LH 77706 - FILTER SUB-ASSY, CHARCOAL CANISTER 77740 - CANISTER ASSY, CHARCOAL 77785 - HARNESS, FUEL PUMP ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
