TOYOTA SEQUOIA UCK35L-GKBLKA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

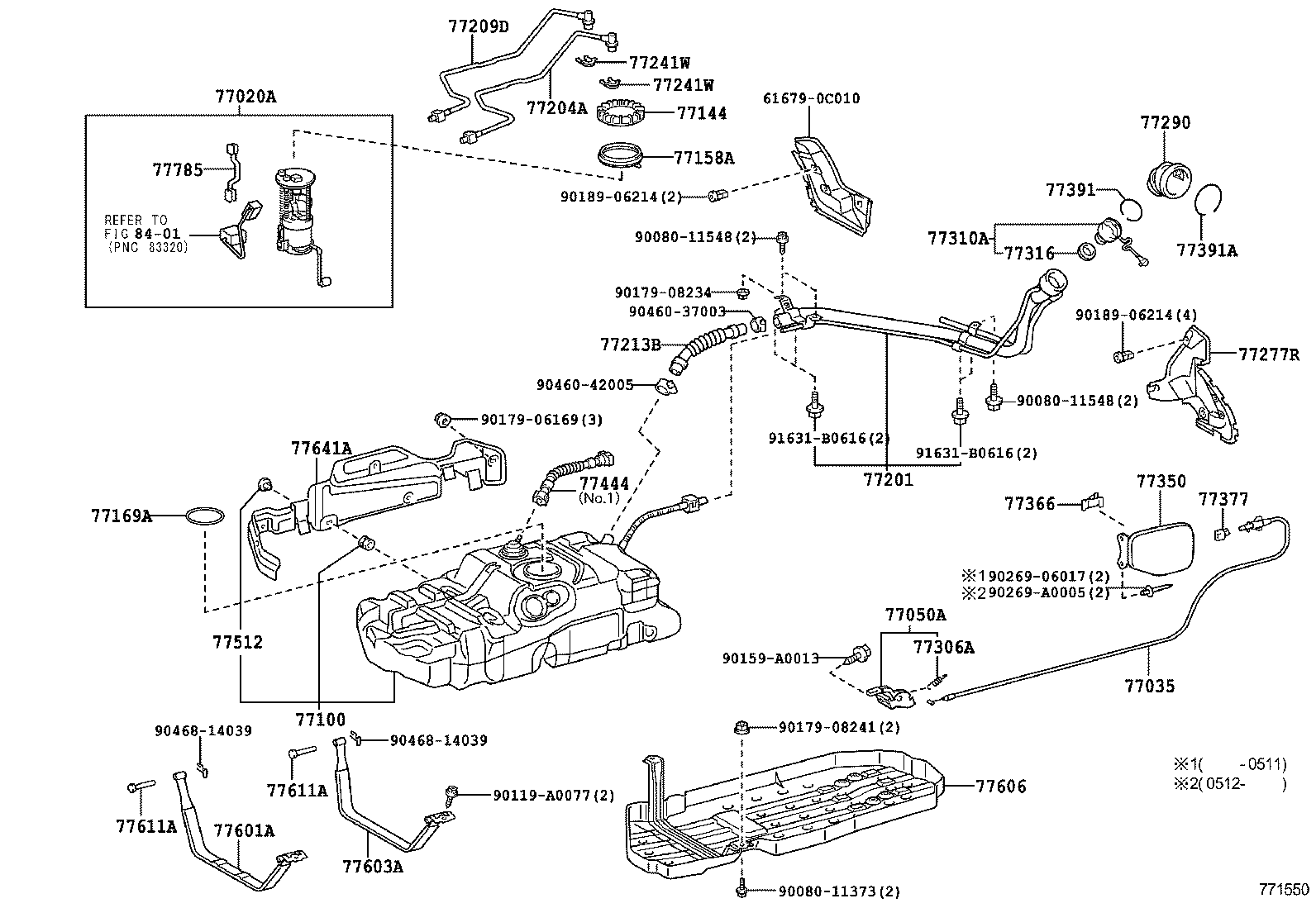

ILLUST NO. 1 OF 2(0408- )

SEQUOIA | FUEL TANK TUBE ** Std Part 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77050A - CONTROL OPENER ASSY, FUEL LID LOCK 77100 - TANK ASSY, FUEL 77144 - RETAINER, FUEL PUMP GAUGE 77158A - SUPPORT, TANK SUCTION TUBE 77169A - GASKET, FUEL SUCTION TUBE SET 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77204A - TUBE, FUEL TANK RETURN 77209D - TUBE SUB-ASSY, FUEL TANK MAIN 77213B - HOSE, FUEL TANK TO FILLER PIPE 77241W - CLIP, TUBE JOINT 77241W - CLIP, TUBE JOINT 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE 77306A - SPRING, FUEL LID OPEN LEVER 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77391 - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77444 - HOSE, FUEL TANK VENT 77512 - BRACKET, FUEL TANK, REAR 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77611A - PIN (FOR FUEL TANK BAND) 77611A - PIN (FOR FUEL TANK BAND) 77641A - PROTECTOR, FUEL TANK, NO.1 77785 - HARNESS, FUEL PUMP ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
