TOYOTA TUNDRA UCK31L-PRSLKA / POWERTRAIN-CHASSIS / REAR SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

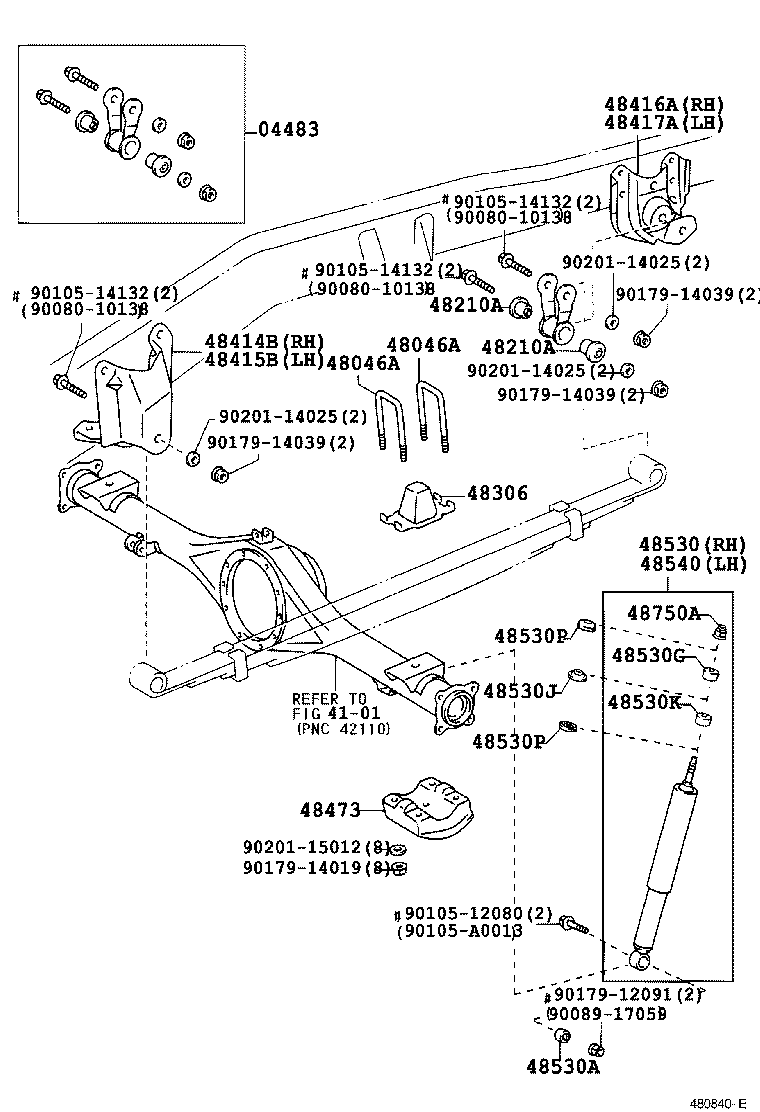

REAR SPRING SHOCK ABSORBER

ILLUST NO. 1 OF 3(9902- )

TUNDRA | REAR SPRING SHOCK ABSORBER 04483 - SHACKLE KIT, REAR SPRING ** Refer Fig 48046A - BOLT, U(FOR REAR SPRING) 48046A - BOLT, U(FOR REAR SPRING) 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) 48306 - BUMPER SUB-ASSY, REAR SPRING 48414B - BRACKET, SPRING, NO.3 RH 48415B - BRACKET, SPRING, NO.3 LH 48416A - BRACKET, SPRING, NO.4 RH 48417A - BRACKET, SPRING, NO.4 LH 48473 - SEAT, REAR SPRING U BOLT 48530 - ABSORBER ASSY, SHOCK, REAR RH 48530A - BUSH(FOR REAR SHOCK ABSORBER) 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER) 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER) 48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER) 48540 - ABSORBER ASSY, SHOCK, REAR LH 48750A - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
