TOYOTA CAMRY JPP ACV40L-AEANKA / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

RADIATOR WATER OUTLET

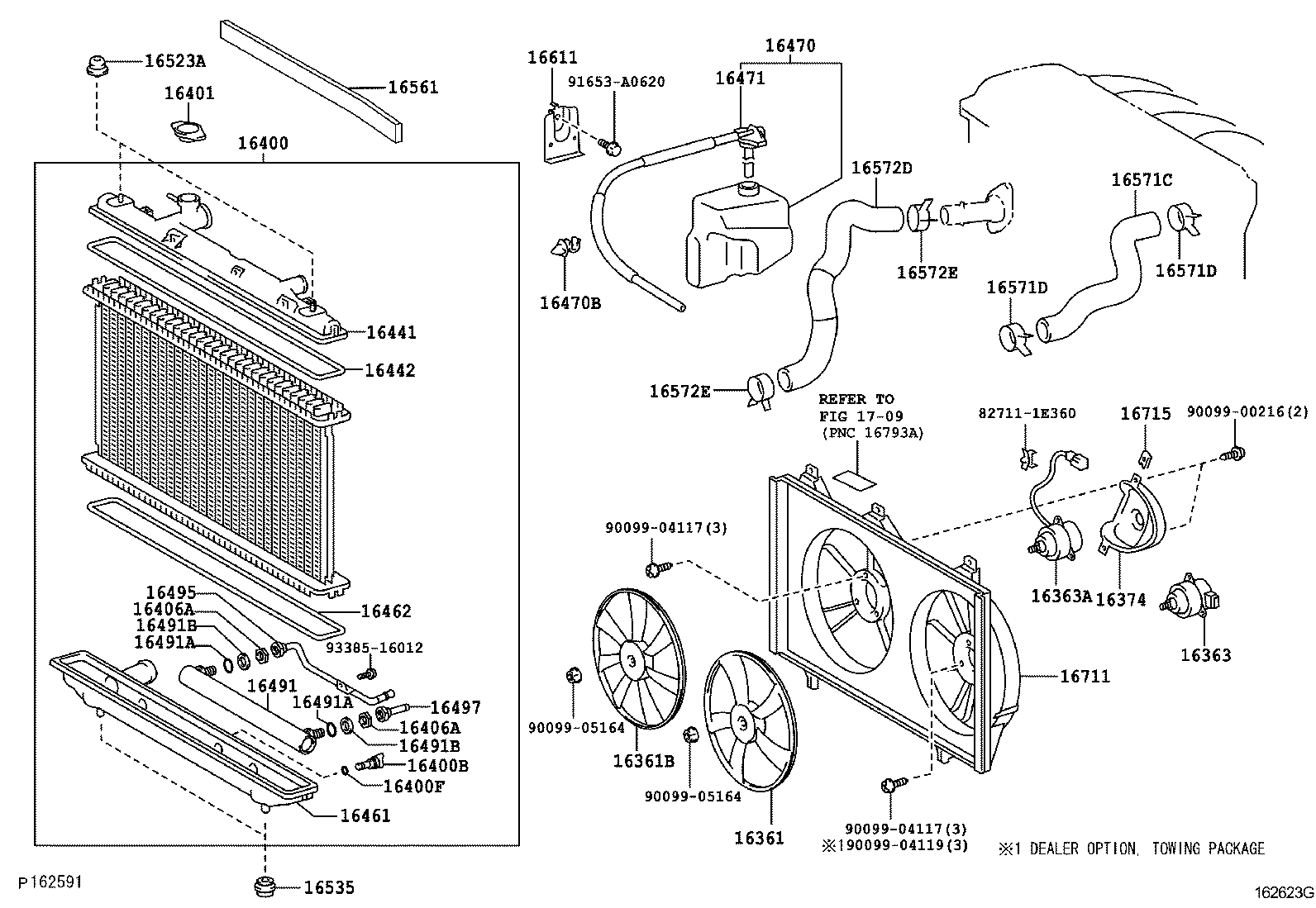

ILLUST NO. 1 OF 2(0601-0901)2AZFE..JPP

CAMRY JPP | RADIATOR WATER OUTLET 16361 - FAN 16361B - FAN, NO.2 16363 - MOTOR, COOLING FAN 16363A - MOTOR, COOLING FAN, NO.2 16374 - INSULATOR, COOLING FAN MOTOR 16400 - RADIATOR ASSY 16400B - PLUG, RADIATOR DRAIN COCK 16400F - PACKING(FOR RADIATOR DRAIN COCK) 16401 - CAP SUB-ASSY, RADIATOR 16406A - SUPPORT(FOR OIL COOLER) 16406A - SUPPORT(FOR OIL COOLER) 16441 - TANK, RADIATOR, UPPER 16442 - RING, O(FOR RADIATOR UPPER TANK) 16461 - TANK, RADIATOR, LOWER 16462 - RING, O(FOR RADIATOR LOWER TANK) 16470 - TANK ASSY, RADIATOR RESERVE 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16471 - CAP SUB-ASSY, RESERVE TANK 16491 - COOLER, OIL(FOR ATM) 16491A - RING, O(FOR ATM OIL COOLER) 16491A - RING, O(FOR ATM OIL COOLER) 16491B - WASHER, PLATE(FOR ATM OIL COOLER) 16491B - WASHER, PLATE(FOR ATM OIL COOLER) 16495 - NUT, FLARE(FOR ATM OIL COOLER) 16497 - INLET SUB-ASSY 16523A - CUSHION, RADIATOR SUPPORT 16535 - SUPPORT, RADIATOR, LOWER 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16571C - HOSE, RADIATOR, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16572D - HOSE, RADIATOR, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16611 - BRACKET, RADIATOR RESERVE TANK 16711 - SHROUD, FAN 16715 - BRACKET, FAN SHROUD ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
