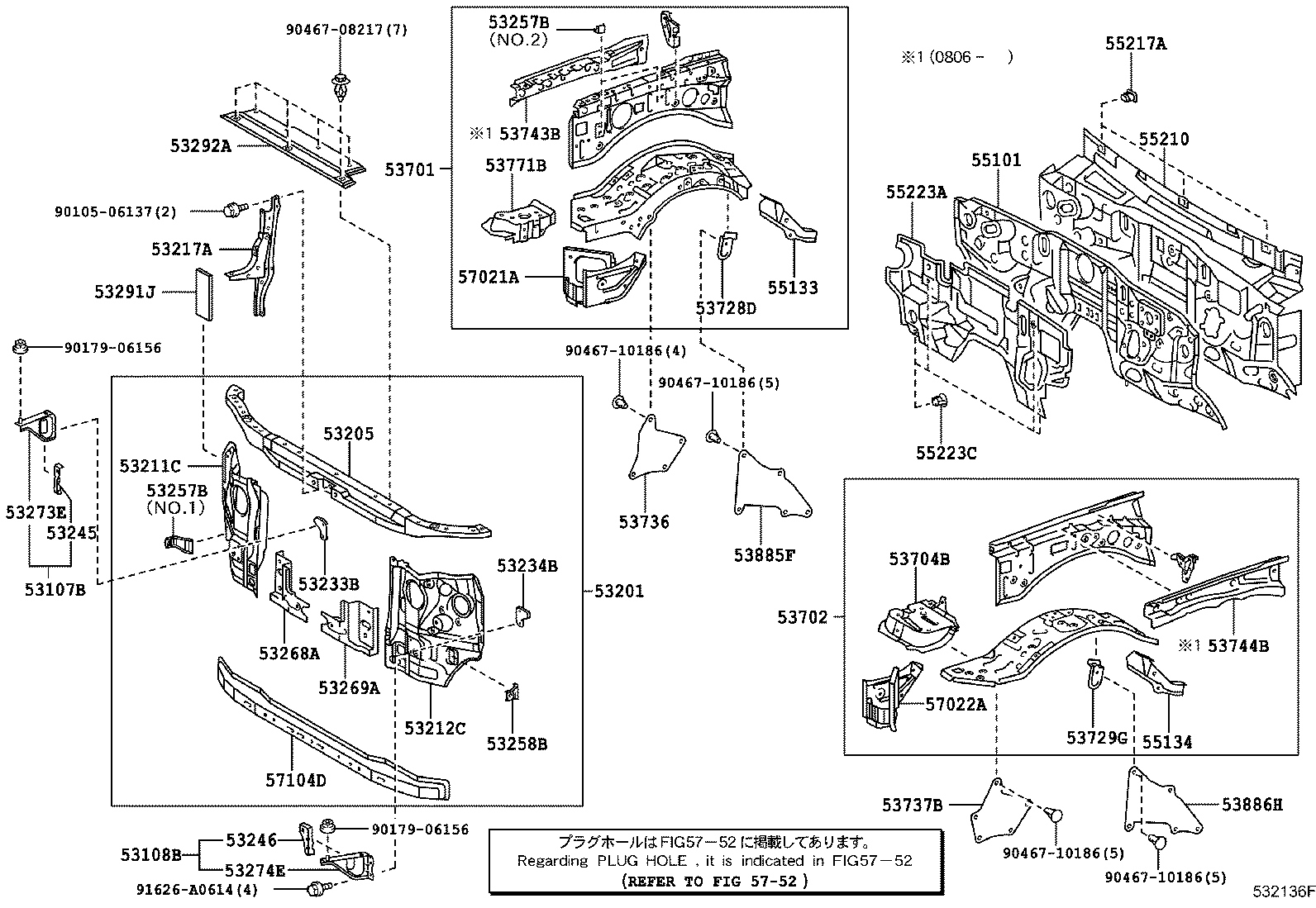

TOYOTA FJ CRUISER GSJ15L-GKASKA / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT FENDER APRON DASH PANEL

(0601-0908)

FJ CRUISER | FRONT FENDER APRON DASH PANEL 53107B - BRACKET SUB-ASSY, RADIATOR GRILLE, LOWER RH 53108B - BRACKET SUB-ASSY, RADIATOR GRILLE, LOWER LH 53201 - SUPPORT SUB-ASSY, RADIATOR 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER 53211C - SUPPORT, RADIATOR, RH 53212C - SUPPORT, RADIATOR, LH 53217A - BRACE, HOOD LOCK SUPPORT 53233B - BRACKET, HEADLAMP, INNER RH 53234B - BRACKET, HEADLAMP, INNER LH 53245 - BRACKET, HEADLAMP, RH 53246 - BRACKET, HEADLAMP, LH 53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER 53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER 53258B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH 53268A - REINFORCEMENT, RADIATOR MOUNTING, RH 53269A - REINFORCEMENT, RADIATOR MOUNTING, LH 53273E - BRACKET, FRONT BUMPER ARM MOUNTING, RH 53274E - BRACKET, FRONT BUMPER ARM MOUNTING, LH 53291J - SEAL, RADIATOR SUPPORT 53292A - SEAL, RADIATOR SUPPORT, UPPER 53701 - APRON SUB-ASSY, FRONT FENDER, RH 53702 - APRON SUB-ASSY, FRONT FENDER, LH 53704B - SUPPORT SUB-ASSY, BATTERY, LH 53728D - BRACKET, FENDER APRON, RH 53729G - BRACKET, FENDER APRON, LH 53736 - SEAL, FRONT FENDER APRON, RH 53737B - SEAL, FRONT FENDER APRON, LH 53743B - REINFORCEMENT, FRONT FENDER APRON, FRONT RH 53744B - REINFORCEMENT, FRONT FENDER APRON, FRONT LH 53771B - SUPPORT, BATTERY CARRIER, RH 53885F - SHIELD, FRONT FENDER SPLASH, REAR RH 53886H - SHIELD, FRONT FENDER SPLASH, REAR LH 55101 - PANEL SUB-ASSY, DASH 55133 - PLATE, FRONT FENDER APRON SET, LOWER RH 55134 - PLATE, FRONT FENDER APRON SET, LOWER LH 55210 - INSULATOR ASSY, DASH PANEL 55217A - RETAINER, DASH PANEL SILENCER 55223A - INSULATOR, DASH PANEL, OUTER 55223C - CLIP 57021A - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH 57022A - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH 57104D - MEMBER SUB-ASSY, FRONT CROSS ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
