TOYOTA FJ CRUISER GSJ15L-GKASKA / BODY / REAR FLOOR PANEL REAR FLOOR MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR FLOOR PANEL REAR FLOOR MEMBER

(0601- )

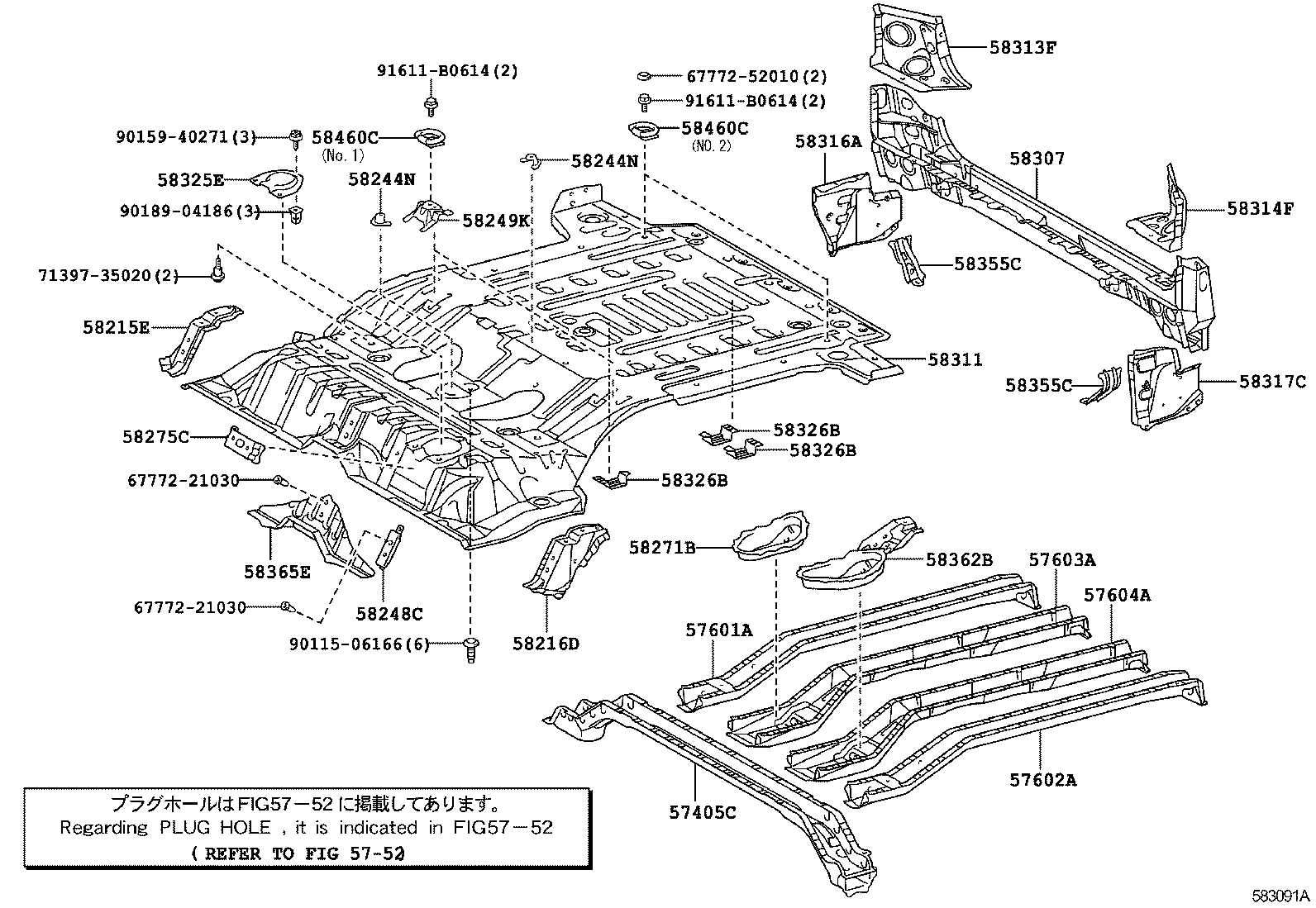

FJ CRUISER | REAR FLOOR PANEL REAR FLOOR MEMBER 57405C - MEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR ** Refer Fig 57601A - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH 57602A - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH 58215E - BRACKET, REAR SEAT MOUNTING, RH 58216D - BRACKET, REAR SEAT MOUNTING, LH 58244N - STOPPER, REAR SEAT CUSHION BRACKET 58244N - STOPPER, REAR SEAT CUSHION BRACKET 58248C - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH 58249K - BRACKET, CENTER FLOOR BOARD SUPPORT 58271B - PLATE, FLOOR SIDE, REAR, RH 58275C - BRACKET, WIRE HARNESS PROTECTOR 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH 58316A - EXTENSION, REAR FLOOR SIDE PANEL, REAR RH 58317C - EXTENSION, REAR FLOOR SIDE PANEL, REAR LH 58325E - COVER, REAR FLOOR SERVICE HOLE 58326B - BRACKET, FLEXIBLE HOSE MOUNTING 58326B - BRACKET, FLEXIBLE HOSE MOUNTING 58326B - BRACKET, FLEXIBLE HOSE MOUNTING 58355C - BRACKET, REAR BUMPER ARM 58355C - BRACKET, REAR BUMPER ARM 58362B - REINFORCEMENT, REAR FLOOR PANEL, NO.1 LH 58365E - REINFORCEMENT, REAR FLOOR PANEL, CENTER 58460C - STRIKER ASSY, LUGGAGE HOLD BELT 58460C - STRIKER ASSY, LUGGAGE HOLD BELT ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
