TOYOTA FJ CRUISER GSJ15L-GKASKA / POWERTRAIN-CHASSIS / BRAKE PEDAL BRACKET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

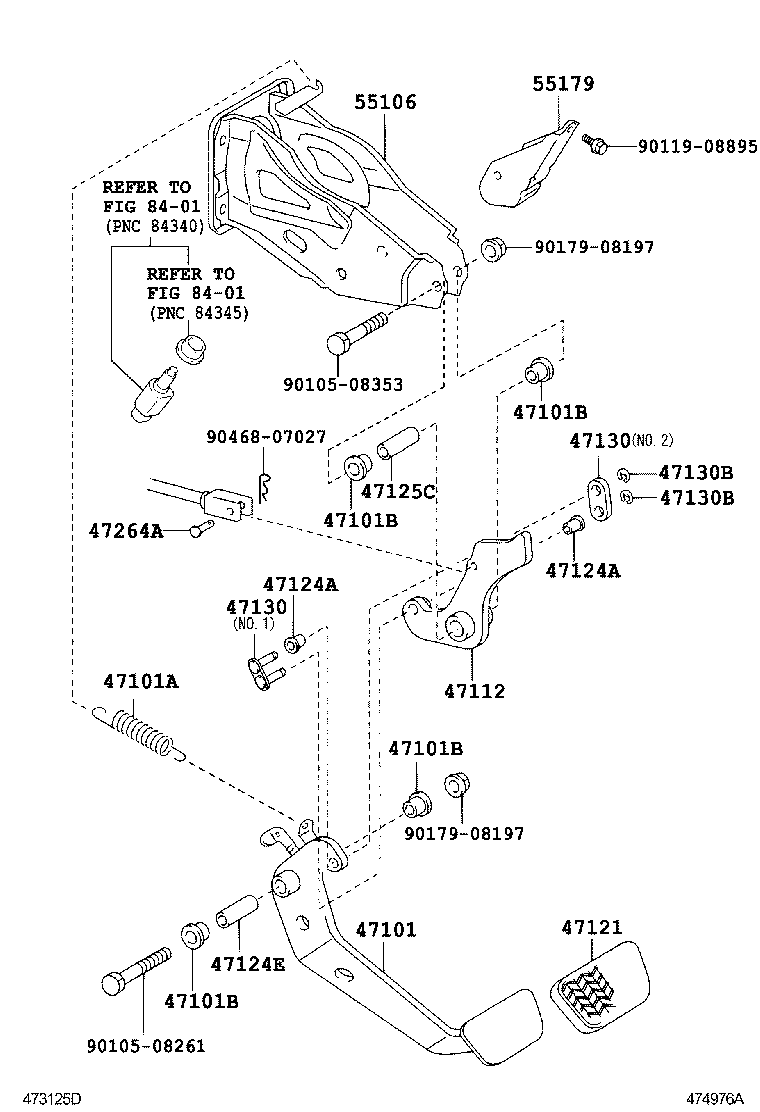

BRAKE PEDAL BRACKET

(0601-1001)

FJ CRUISER | BRAKE PEDAL BRACKET 47101 - PEDAL SUB-ASSY, BRAKE 47101A - SPRING(FOR BRAKE PEDAL RETURN) 47101B - BUSH(FOR BRAKE PEDAL) 47101B - BUSH(FOR BRAKE PEDAL) 47101B - BUSH(FOR BRAKE PEDAL) 47101B - BUSH(FOR BRAKE PEDAL) 47112 - LEVER, BRAKE PEDAL 47121 - PAD, BRAKE PEDAL 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) 47124E - COLLAR, BRAKE PEDAL SHAFT, NO.2 47125C - COLLAR(FOR BRAKE PEDAL BRACKET) 47130 - LINK ASSY, BRAKE PEDAL 47130 - LINK ASSY, BRAKE PEDAL 47130B - RING E, BRAKE PEDAL LINK PIN 47130B - RING E, BRAKE PEDAL LINK PIN 47264A - PIN(FOR PUSH ROD) 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL 55179 - REINFORCEMENT, BRAKE PEDAL SUPPORT ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
