TOYOTA SEQUOIA USK60L-GKTSKA / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

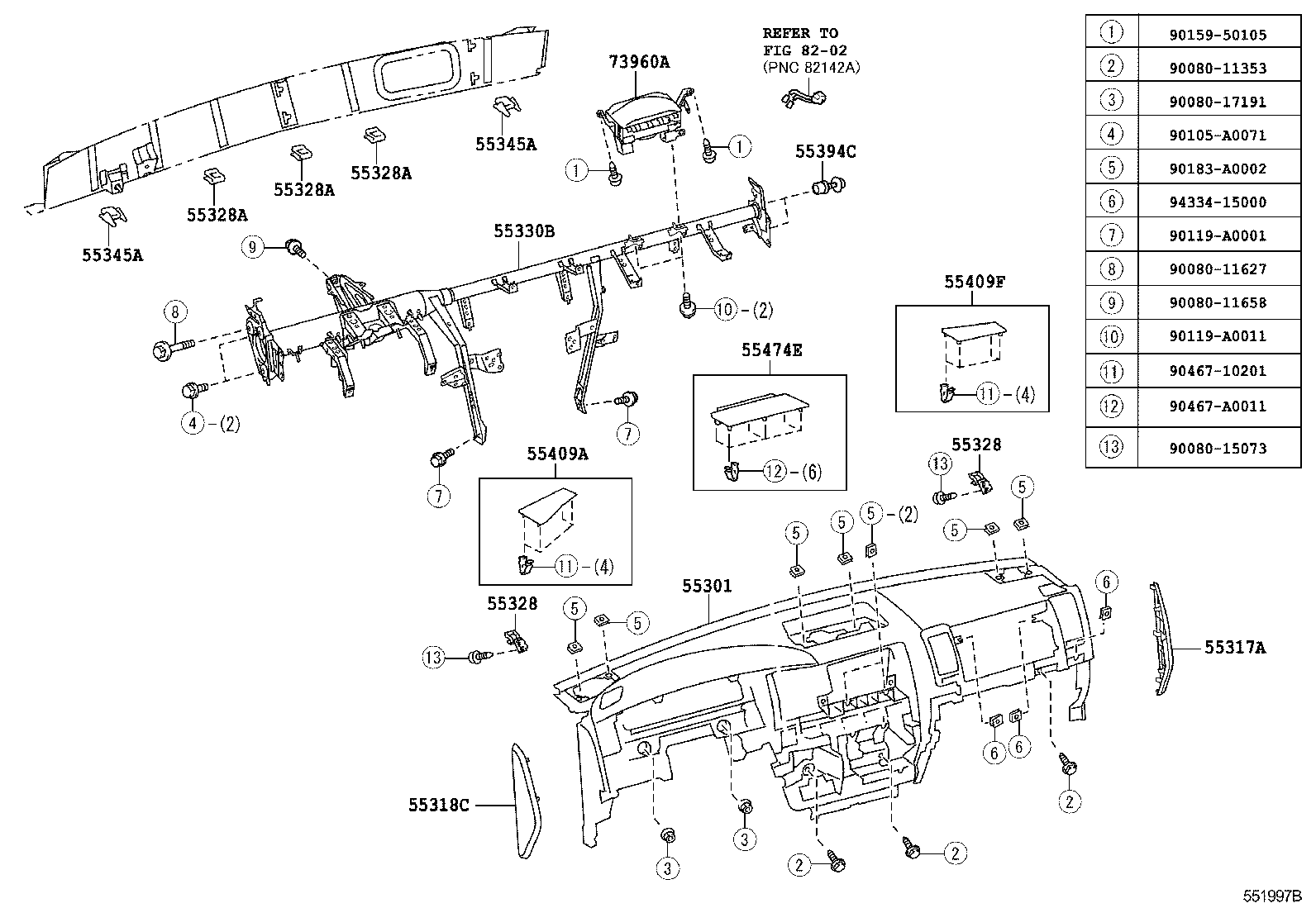

INSTRUMENT PANEL GLOVE COMPARTMENT

ILLUST NO. 1 OF 2(0711- )

SEQUOIA | INSTRUMENT PANEL GLOVE COMPARTMENT 55301 - PANEL SUB-ASSY, INSTRUMENT 55317A - PANEL, INSTRUMENT SIDE, RH 55318C - PANEL, INSTRUMENT SIDE, LH 55328 - PIN, INSTRUMENT PANEL, NO.1 55328 - PIN, INSTRUMENT PANEL, NO.1 55328A - STAY, INSTRUMENT PANEL, NO.3 55328A - STAY, INSTRUMENT PANEL, NO.3 55328A - STAY, INSTRUMENT PANEL, NO.3 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL 55345A - CLIP, INSTRUMENT PANEL, NO.1 55345A - CLIP, INSTRUMENT PANEL, NO.1 55394C - BOLT, INSTRUMENT PANEL 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 55474E - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.3 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
