TOYOTA SEQUOIA USK60L-GKTSKA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

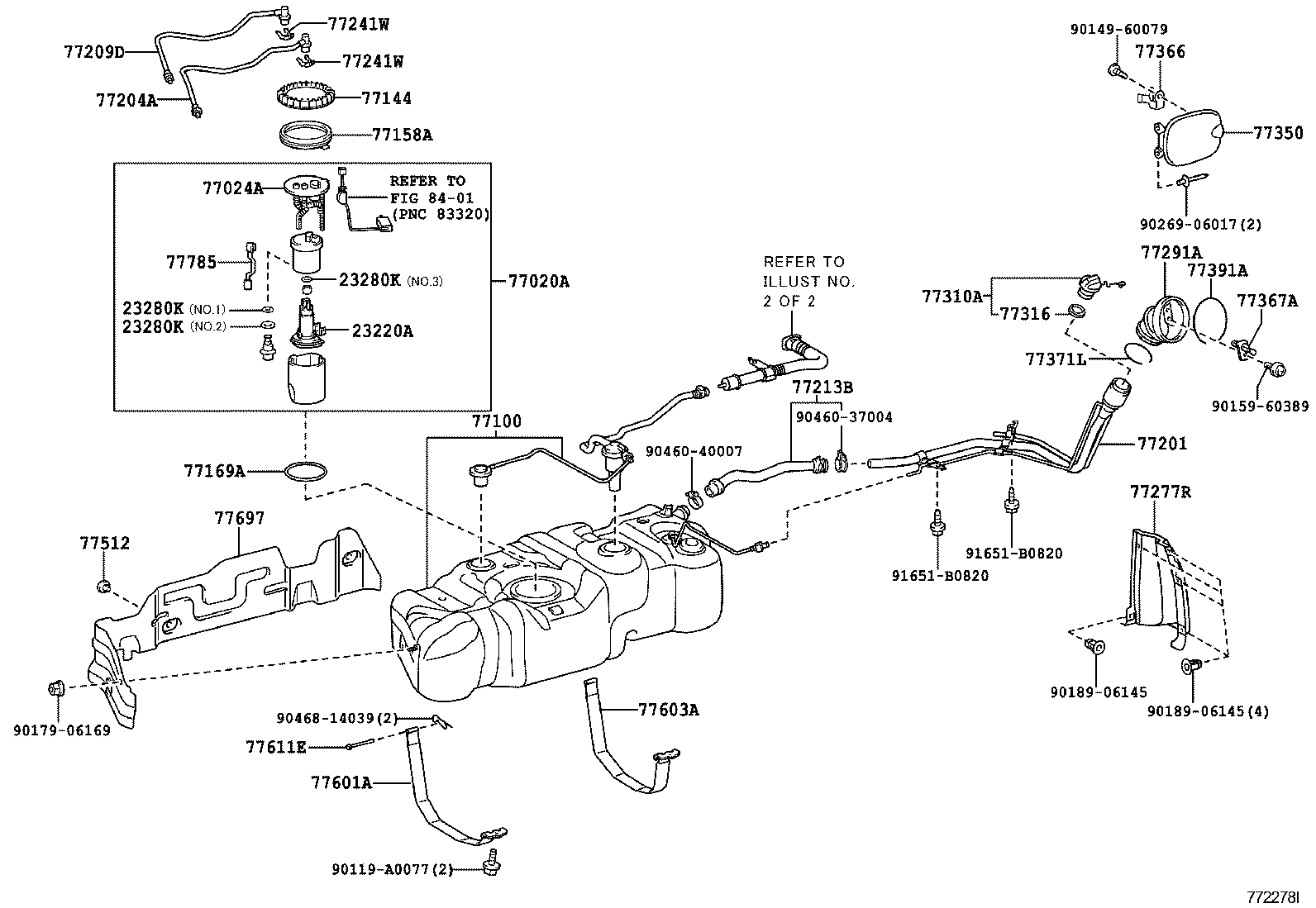

FUEL TANK ILLUST NO. 1 OF 2(0711- )UPK6#,USK6#..HTWC

SEQUOIA | FUEL TANK TUBE 23220A - PUMP ASSY, FUEL W/FILTER 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE 77024A - PLATE SUB-ASSY, FUEL SUCTION 77100 - TANK ASSY, FUEL 77144 - RETAINER, FUEL PUMP GAUGE 77158A - SUPPORT, TANK SUCTION TUBE 77169A - GASKET, FUEL SUCTION TUBE SET 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77204A - TUBE, FUEL TANK RETURN 77209D - TUBE SUB-ASSY, FUEL TANK MAIN 77213B - HOSE, FUEL TANK TO FILLER PIPE 77241W - CLIP, TUBE JOINT 77241W - CLIP, TUBE JOINT 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77291A - SHIELD, FUEL TANK FILLER PIPE 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77367A - CLAMP, FUEL FILLER LID PIN, NO.1 77371L - RING, FUEL TANK FILLER PIPE SHIELD 77391A - RING, FUEL INLET BOX 77512 - BRACKET, FUEL TANK, REAR 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 77611E - PIN, FUEL TANK BAND 77697 - INSULATOR, FUEL TANK HEAT, NO.1 77785 - HARNESS, FUEL PUMP ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
