TOYOTA 4RUNNER UZN215L-GKAZKA / POWERTRAIN-CHASSIS / FRONT AXLE HOUSING DIFFERENTIAL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT AXLE HOUSING DIFFERENTIAL

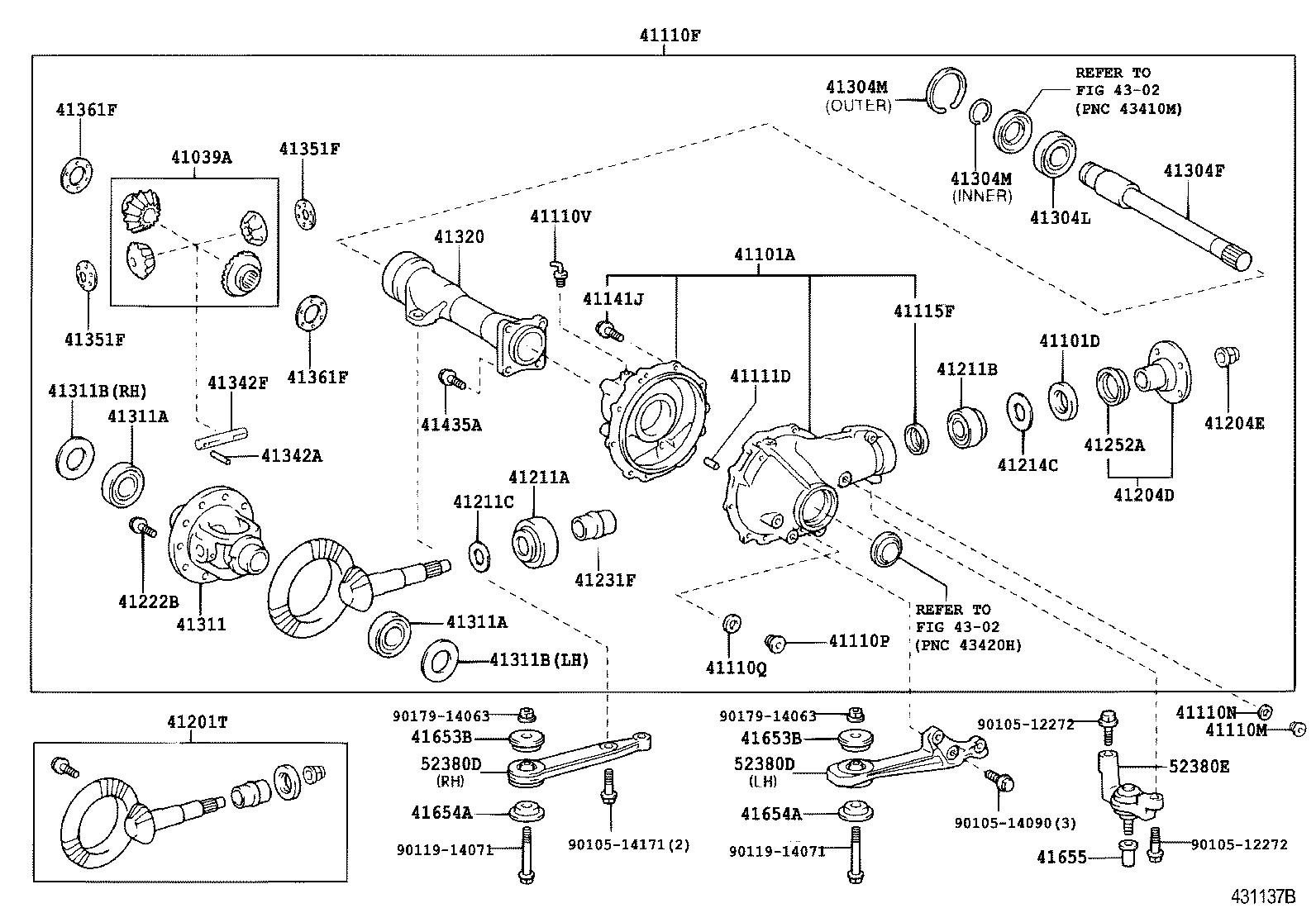

ILLUST NO. 1 OF 2(0208- )UZN215

4RUNNER | FRONT AXLE HOUSING DIFFERENTIAL 41039A - GEAR KIT, DIFFERENTIAL 41101A - CARRIER SUB-ASSY, DIFFERENTIAL, FRONT 41101D - SEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER) 41110F - CARRIER ASSY, DIFFERENTIAL, FRONT 41110M - PLUG, FRONT DIFFERENTIAL FILLER 41110N - GASKET, FRONT DIFFERENTIAL FILLER PLUG 41110P - PLUG, FRONT DIFFERENTIAL DRAIN 41110Q - GASKET, FRONT DIFFERENTIAL DRAIN PLUG 41110V - UNION (FOR FRONT DIFFERENTIAL) 41111D - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER) 41115F - RING, FRONT DIFFERENTIAL OIL STORAGE 41141J - BOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) 41201T - FINAL GEAR KIT, DIFFERENTIAL, FRONT 41204D - FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT 41204E - NUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT) 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) 41211C - GEAR, DIFFERENTIAL RING 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING 41252A - DEFLECTOR, DUST (FOR FRONT DIFFERENTIAL) 41304F - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH 41304L - BEARING (FOR FRONT DIFFERNTIAL SIDE GEAR SHAFT RH) 41304M - RING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH) 41304M - RING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH) 41311 - CASE, FRONT DIFFERENTIAL 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) 41320 - TUBE ASSY, FRONT DIFFERENTIAL 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 41435A - BOLT (FOR DIFFERENTIAL CLUTCH CASE SETTING) 41653B - STOPPER, DIFFERENTIAL MOUNT, UPPER 41653B - STOPPER, DIFFERENTIAL MOUNT, UPPER 41654A - STOPPER, DIFFERENTIAL MOUNT, LOWER 41654A - STOPPER, DIFFERENTIAL MOUNT, LOWER 41655 - NUT, FRONT DIFFERENTIAL MOUNT, NO.1 ** Refer Fig ** Refer Fig 52380D - SUPPORT ASSY, FRONT DIFFERENTIAL 52380D - SUPPORT ASSY, FRONT DIFFERENTIAL 52380E - SUPPORT ASSY, DIFFERENTIAL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
