TOYOTA 4RUNNER UZN215L-GKAZKA / POWERTRAIN-CHASSIS / PARKING BRAKE CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

PARKING BRAKE CABLE

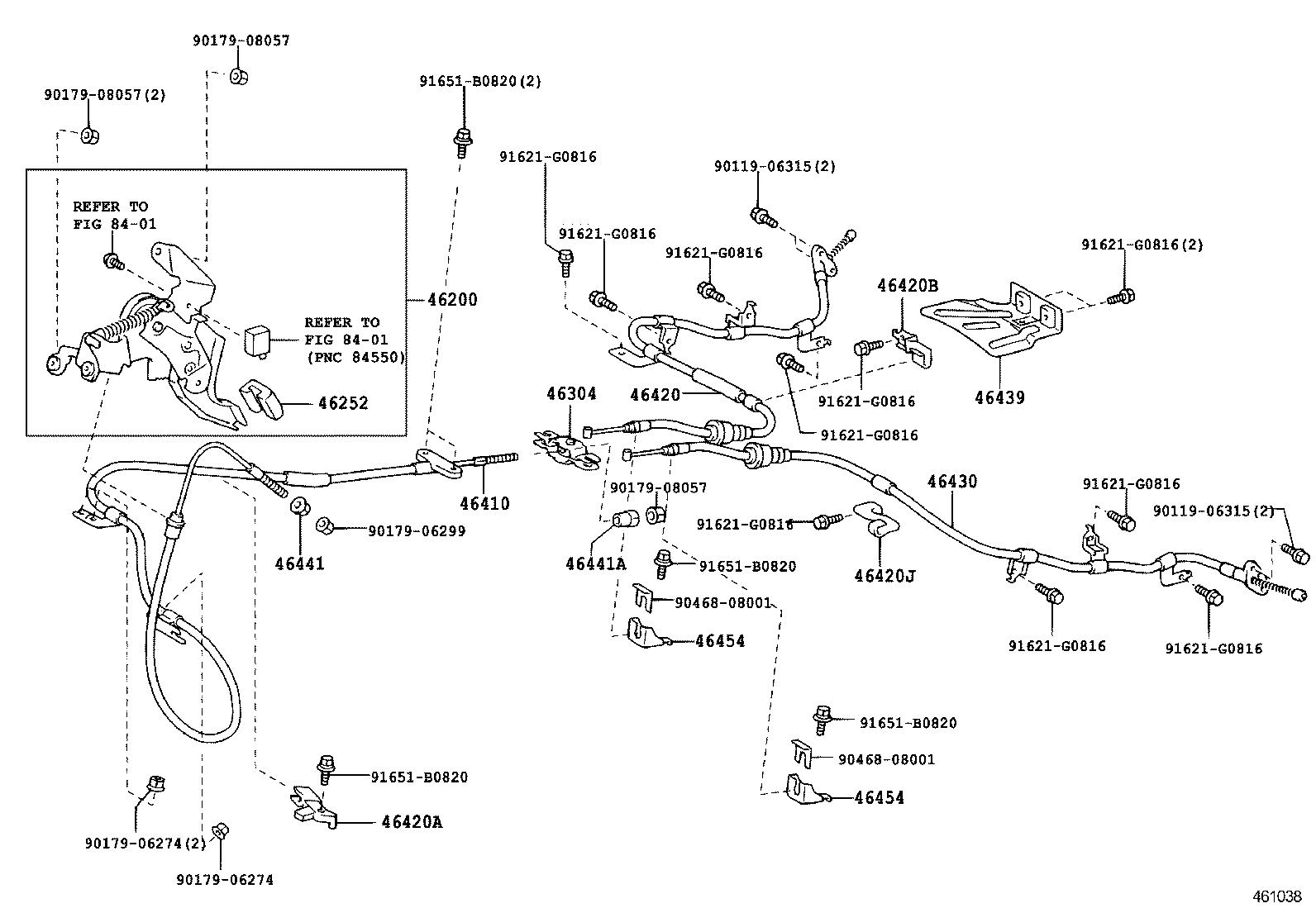

ILLUST NO. 1 OF 2(0802- )

 4RUNNER |  PARKING BRAKE CABLE 46200 - PEDAL ASSY, PARKING BRAKE CONTROL 46252 - PAD, PARKING PEDAL 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE 46410 - CABLE ASSY, PARKING BRAKE, NO.1 46420 - CABLE ASSY, PARKING BRAKE, NO.2 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) 46430 - CABLE ASSY, PARKING BRAKE, NO.3 46439 - INSULATOR, PARKING BRAKE CABLE HEAT 46441 - NUT, WIRE ADJUSTING, NO.1 46441A - NUT, WIRE ADJUSTING, NO.2 46454 - BRACKET, CABLE RETAINER, FRONT 46454 - BRACKET, CABLE RETAINER, FRONT ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
