TOYOTA HIGHLANDER JPP ASU40L-BRTNKA / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL INJECTION SYSTEM

(0811- )1ARFE

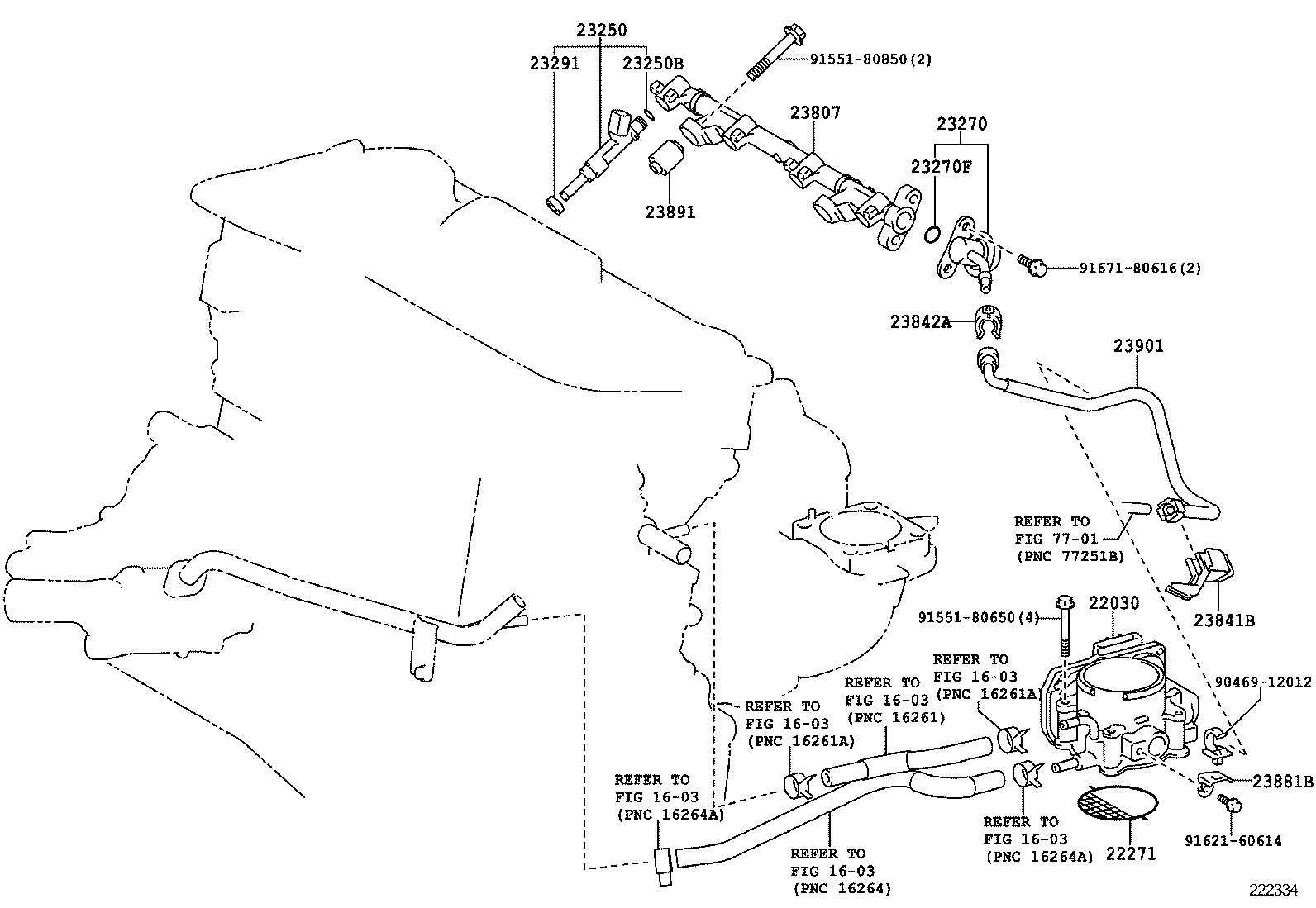

HIGHLANDER JPP | FUEL INJECTION SYSTEM ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 22030 - BODY ASSY, THROTTLE W/MOTOR 22271 - GASKET, THROTTLE BODY 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION 23270F - RING, O(FOR PULSATION DAMPER) 23291 - INSULATOR, INJECTOR VIBRATION 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) 23881B - BRACKET, FUEL HOSE 23891 - SPACER, FUEL DELIVERY 23901 - TUBE SUB-ASSY, FUEL ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
