TOYOTA VENZA AGV10L-AWTGKA / BODY / ROOF PANEL BACK WINDOW GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

ROOF PANEL BACK WINDOW GLASS

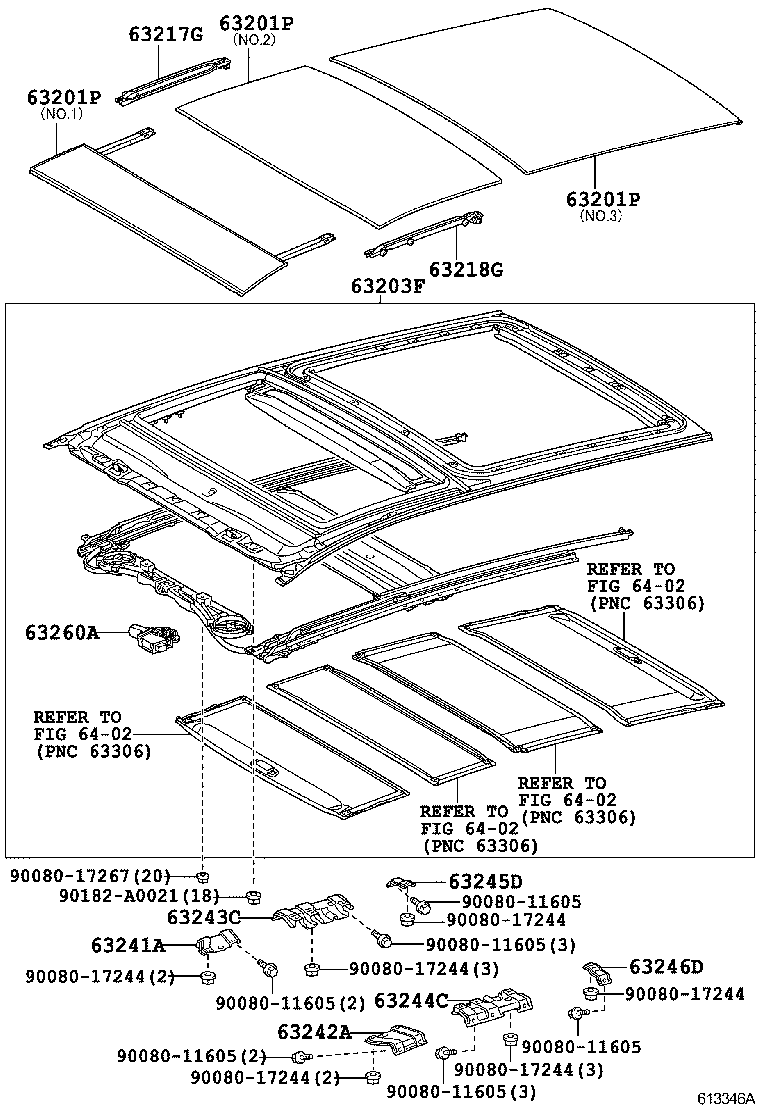

SLIDING ROOF ILLUST NO. 2 OF 2(0811- )

VENZA | ROOF PANEL BACK WINDOW GLASS 63201P - GLASS SUB-ASSY, SLIDING ROOF 63201P - GLASS SUB-ASSY, SLIDING ROOF 63201P - GLASS SUB-ASSY, SLIDING ROOF 63203F - HOUSING SUB-ASSY, SLIDING ROOF 63217G - GARNISH, SLIDING ROOF SIDE, RH 63218G - GARNISH, SLIDING ROOF SIDE, LH 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH 63244C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH 63246D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
