TOYOTA VENZA AGV10L-AWTGKA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

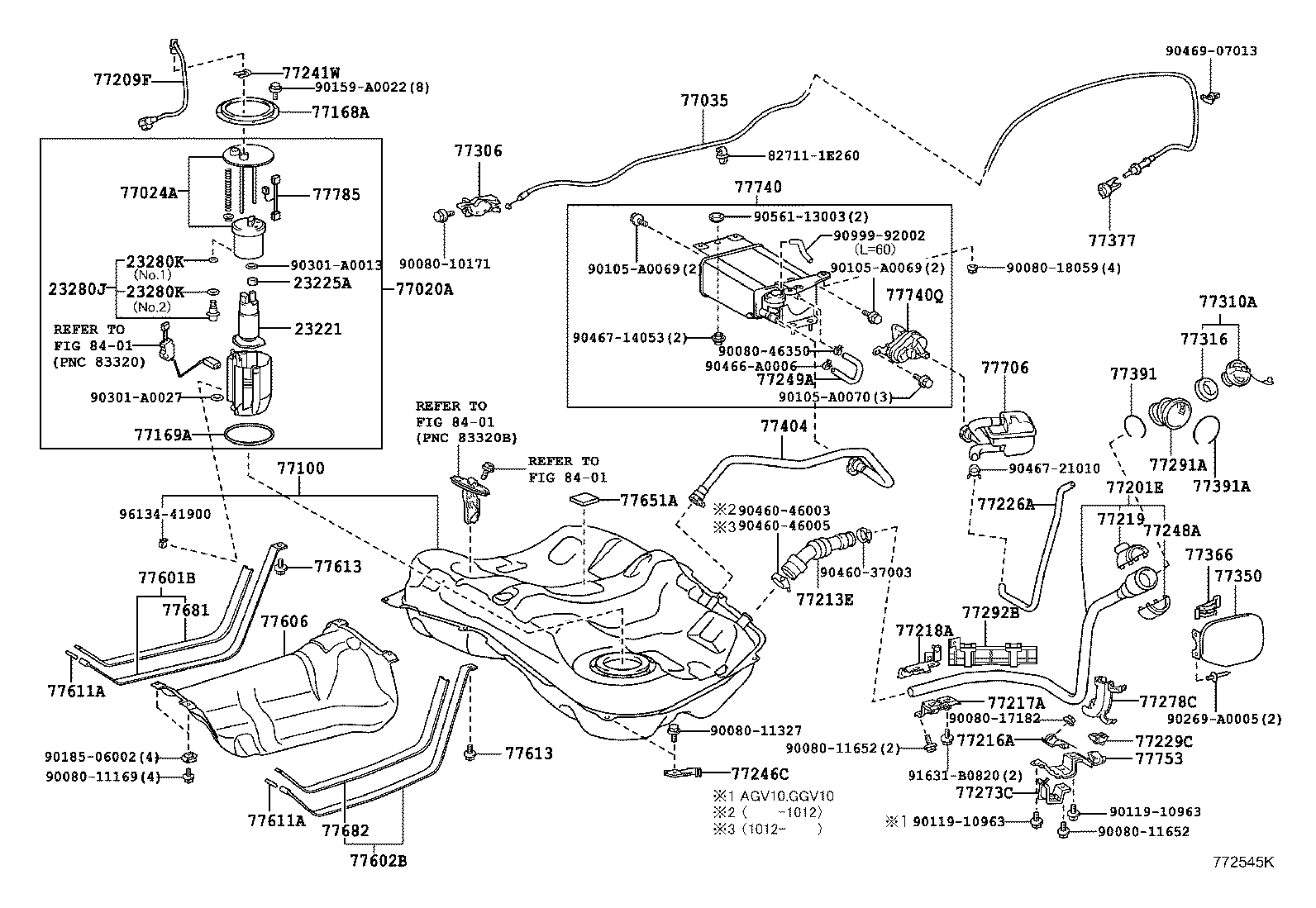

FUEL TANK ILLUST NO. 1 OF 2(0811-1205)

VENZA | FUEL TANK TUBE 23221 - PUMP, FUEL 23225A - SPACER, FUEL PUMP 23280J - REGULATOR ASSY, FUEL PRESSURE 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE 77024A - PLATE SUB-ASSY, FUEL SUCTION 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77100 - TANK ASSY, FUEL 77168A - PLATE, FUEL TANK VENT TUBE SET 77169A - GASKET, FUEL SUCTION TUBE SET 77201E - PIPE SUB-ASSY, FUEL TANK FILLER 77209F - TUBE SUB-ASSY, FUEL TANK MAIN 77213E - HOSE, FUEL TANK TO FILLER PIPE 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 77219 - COVER, FUEL TANK FILLER PIPE 77226A - TUBE, FUEL TANK BREATHER, NO.6 77229C - CLAMP, BREATHER TUBE 77241W - CLIP, TUBE JOINT 77246C - SUPPORT, FUEL MAIN TUBE 77248A - HOLDER, FUEL TANK FILLER PIPE COVER 77249A - HOSE, FUEL EMISSION 77273C - SUPPORT, BREATHER TUBE, NO.2 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 77291A - SHIELD, FUEL TANK FILLER PIPE 77292B - SHIELD, FUEL TANK DRAIN PLUG 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77391 - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77404 - HOSE SUB-ASSY, FUEL TANK VENT 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77611A - PIN (FOR FUEL TANK BAND) 77611A - PIN (FOR FUEL TANK BAND) 77613 - BOLT, FUEL TANK BAND SET 77613 - BOLT, FUEL TANK BAND SET 77651A - CUSHION, FUEL TANK, NO.1 77681 - SEAT, FUEL TANK BAND, RH 77682 - SEAT, FUEL TANK BAND, LH 77706 - FILTER SUB-ASSY, CHARCOAL CANISTER 77740 - CANISTER ASSY, CHARCOAL 77740Q - LEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER 77753 - BRACKET, CHARCOAL CANISTER, NO.3 77785 - HARNESS, FUEL PUMP ** Std Part ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
