TOYOTA YARIS FRP KSP90R-CGMRKW / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

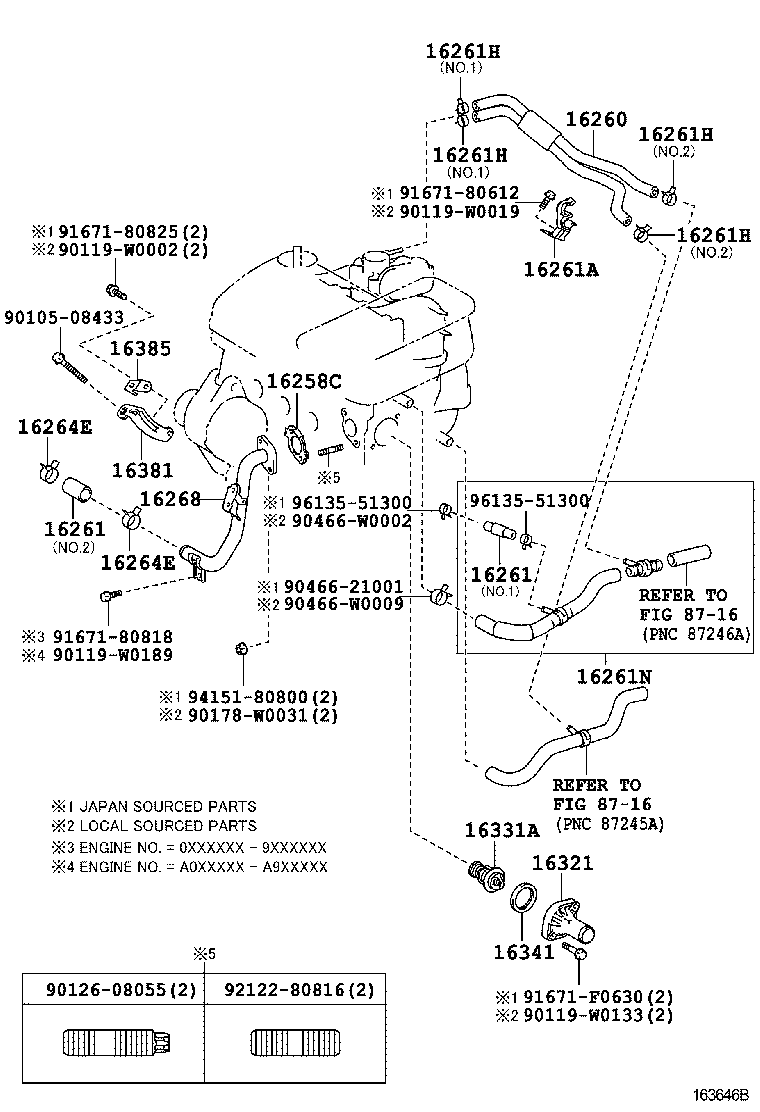

RADIATOR WATER OUTLET

ILLUST NO. 2 OF 2(0811- )1KRFE..FRP

YARIS FRP | RADIATOR WATER OUTLET 16258C - GASKET(FOR WATER BY-PASS PIPE) 16260 - HOSE ASSY, WATER BY-PASS 16261 - HOSE, WATER BY-PASS 16261 - HOSE, WATER BY-PASS 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) 16261N - HOSE, WATER BY-PASS, NO.2 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) 16268 - PIPE, WATER BY-PASS, NO.1 16321 - INLET, WATER 16331A - THERMOSTAT 16341 - GASKET, WATER OUTLET 16381 - BAR, FAN BELT ADJUSTING 16385 - SLIDER, FAN BELT ADJUSTING ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
