TOYOTA MATRIX AZE146L-DHMSKK / BODY / REAR BUMPER BUMPER STAY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

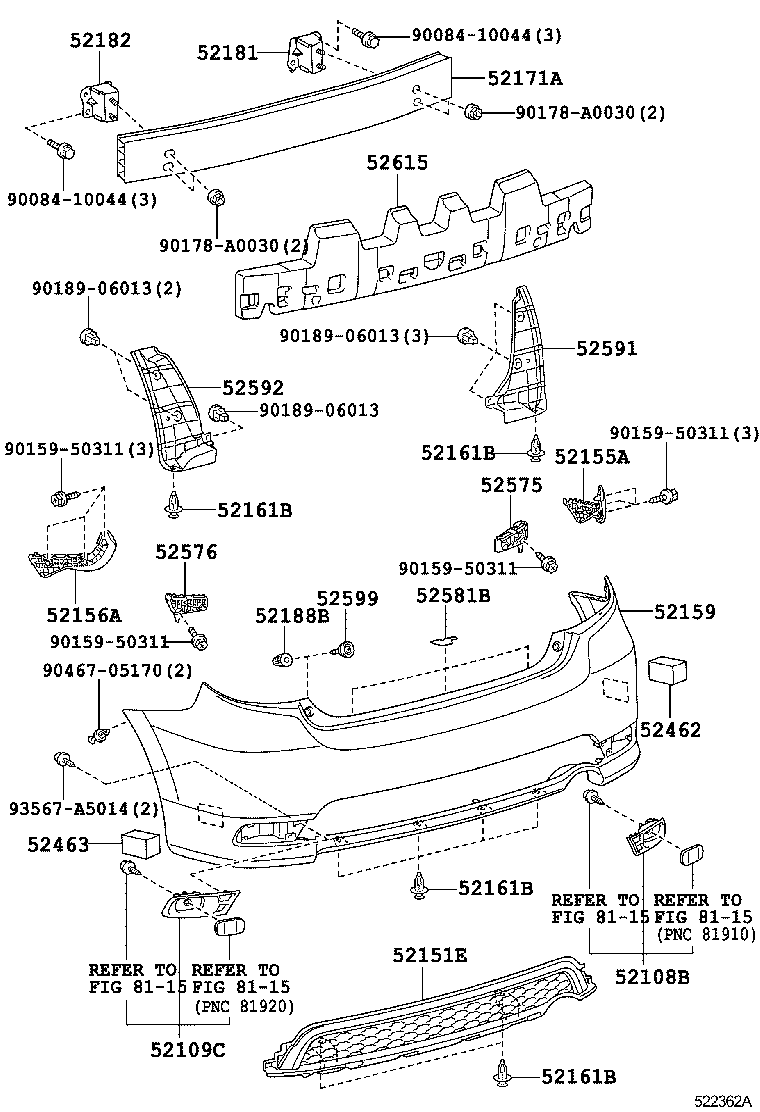

REAR BUMPER BUMPER STAY

(1012- )AZE146

 MATRIX |  REAR BUMPER BUMPER STAY 52108B - EXTENSION SUB-ASSY, REAR BUMPER SIDE, RH 52109C - EXTENSION SUB-ASSY, REAR BUMPER SIDE, LH 52151E - BAR, REAR BUMPER 52155A - SUPPORT, REAR BUMPER SIDE, RH 52156A - SUPPORT, REAR BUMPER SIDE, LH 52159 - COVER, REAR BUMPER 52161B - PIECE, REAR BUMPER 52161B - PIECE, REAR BUMPER 52161B - PIECE, REAR BUMPER 52161B - PIECE, REAR BUMPER 52171A - REINFORCEMENT, REAR BUMPER, NO.1 52181 - ARM, REAR BUMPER, RH 52182 - ARM, REAR BUMPER, LH 52188B - SPACER, REAR BUMPER MOUNTING 52462 - PAD, REAR BUMPER, RH 52463 - PAD, REAR BUMPER, LH 52575 - RETAINER, REAR BUMPER SIDE, RH 52576 - RETAINER, REAR BUMPER SIDE, LH 52581B - PROTECTOR, REAR BUMPER 52591 - SEAL, REAR BUMPER SIDE, RH 52592 - SEAL, REAR BUMPER SIDE, LH 52599 - STOPPER, REAR BUMPER, UPPER 52615 - ABSORBER, REAR BUMPER ENERGY ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
