TOYOTA SCION XB AZE151L-FHPNKA / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR SEAT SEAT TRACK

(1003- )

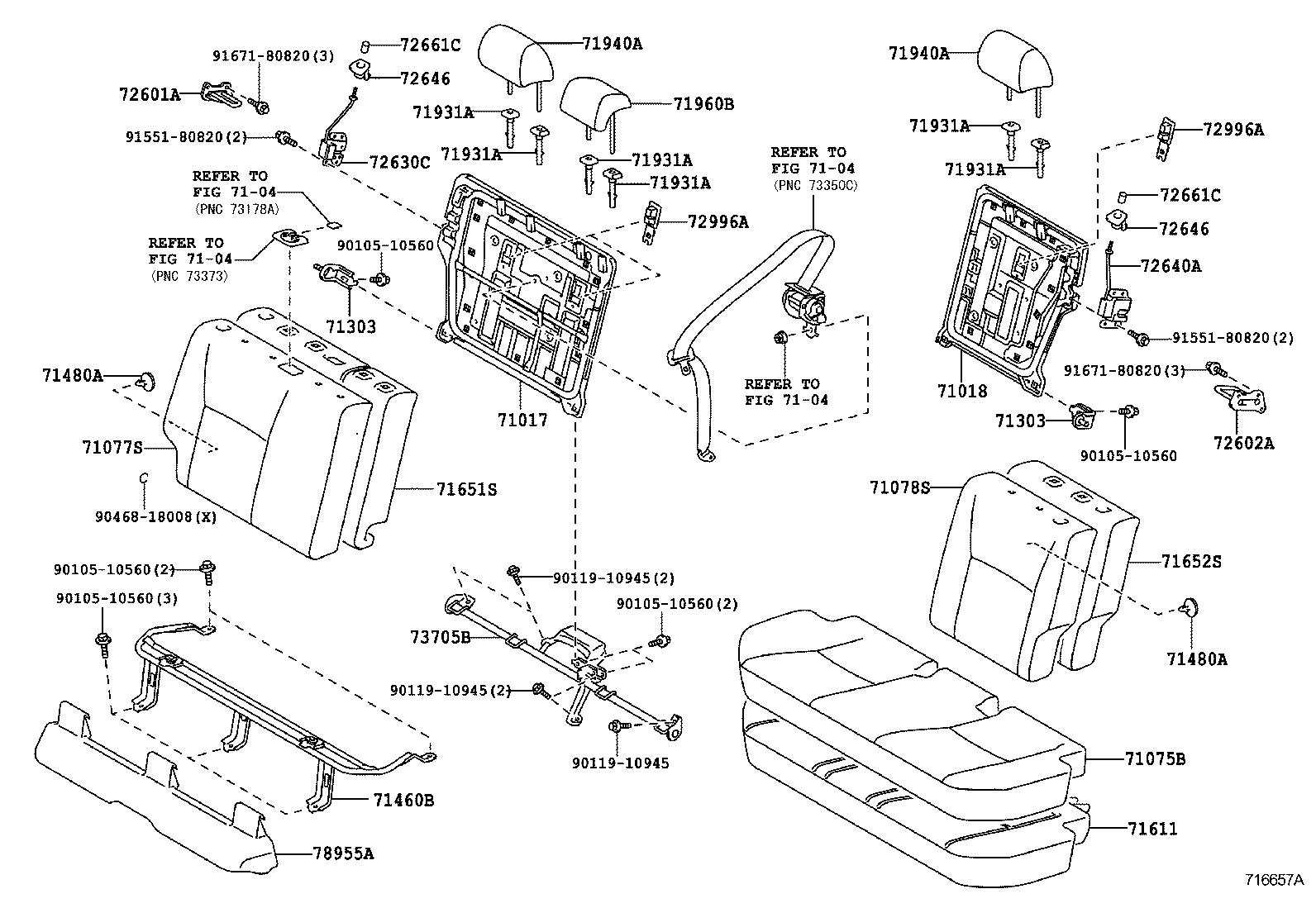

 SCION XB |  REAR SEAT SEAT TRACK 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71303 - HINGE SUB-ASSY, REAR SEAT BACK 71303 - HINGE SUB-ASSY, REAR SEAT BACK 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) 71480A - CLIP (FOR REAR SEAT BACK) 71480A - CLIP (FOR REAR SEAT BACK) 71611 - PAD, REAR SEAT CUSHION 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 71940A - HEADREST ASSY, REAR SEAT 71960B - HEADREST ASSY, REAR SEAT, CENTER 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH 72630C - LOCK ASSY, REAR SEAT BACK, RH 72640A - LOCK ASSY, REAR SEAT BACK, LH 72646 - GROMMET, REAR SEAT BACK STOP BUTTON 72646 - GROMMET, REAR SEAT BACK STOP BUTTON 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE 72996A - COVER, REAR SEAT BACK 72996A - COVER, REAR SEAT BACK 73705B - BRACKET SUB-ASSY, CROSS ANCHOR 78955A - COVER, REAR SEAT UNDER TRAY  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
