TOYOTA YARIS FRP NLP90L-CGLGXW / TOOL-ENGINE-FUEL / EXHAUST GAS RECIRCULATION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

EXHAUST GAS RECIRCULATION SYSTEM

EUROPE STEP4 (1007- )1NDTV..FRP..LHD

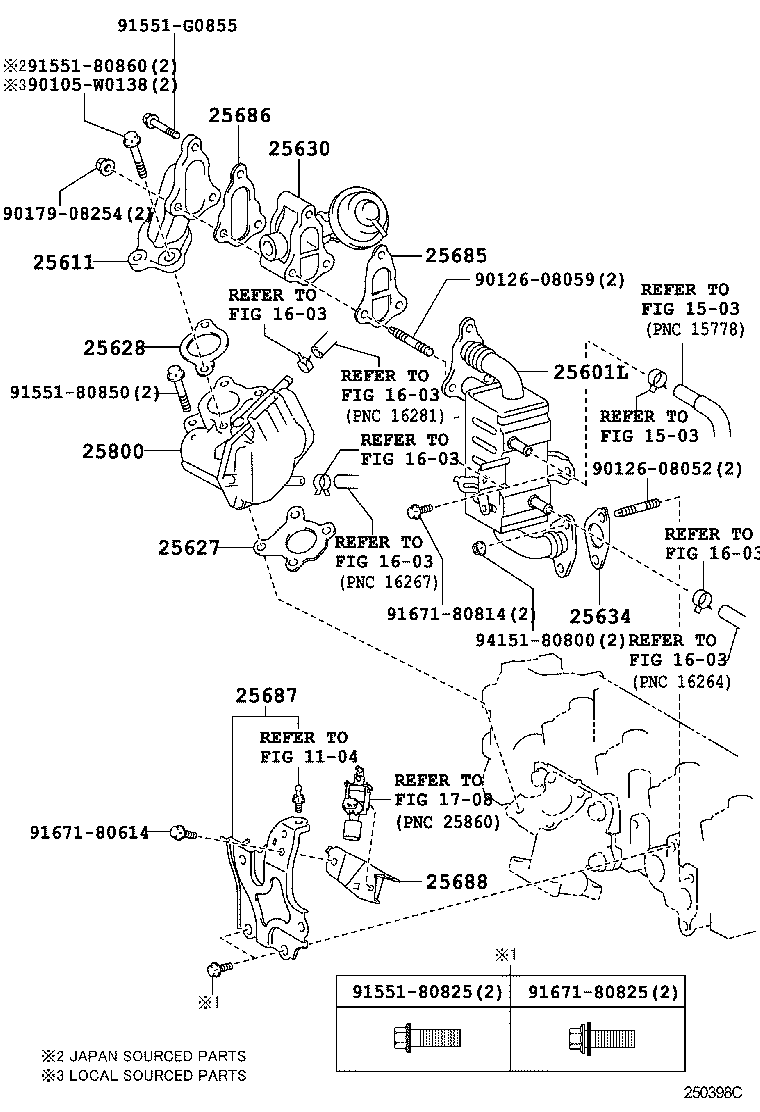

YARIS FRP | EXHAUST GAS RECIRCULATION SYSTEM ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 25601L - PIPE SUB-ASSY, EGR W/COOLER 25611 - CONNECTOR, EGR PIPE 25627 - GASKET, EGR VALVE 25628 - GASKET, EGR INLET 25630 - VALVE ASSY, EGR, NO.2 25634 - GASKET, EGR PIPE 25685 - GASKET, EGR COOLER, NO.1 25686 - GASKET, EGR COOLER, NO.2 25687 - BRACKET, EGR COOLER, NO.1 25688 - BRACKET, EGR COOLER, NO.2 25800 - VALVE ASSY, ELECTRIC EGR CONTROL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
