TOYOTA CAMRY HYBRID ASV50L-CETSKA / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

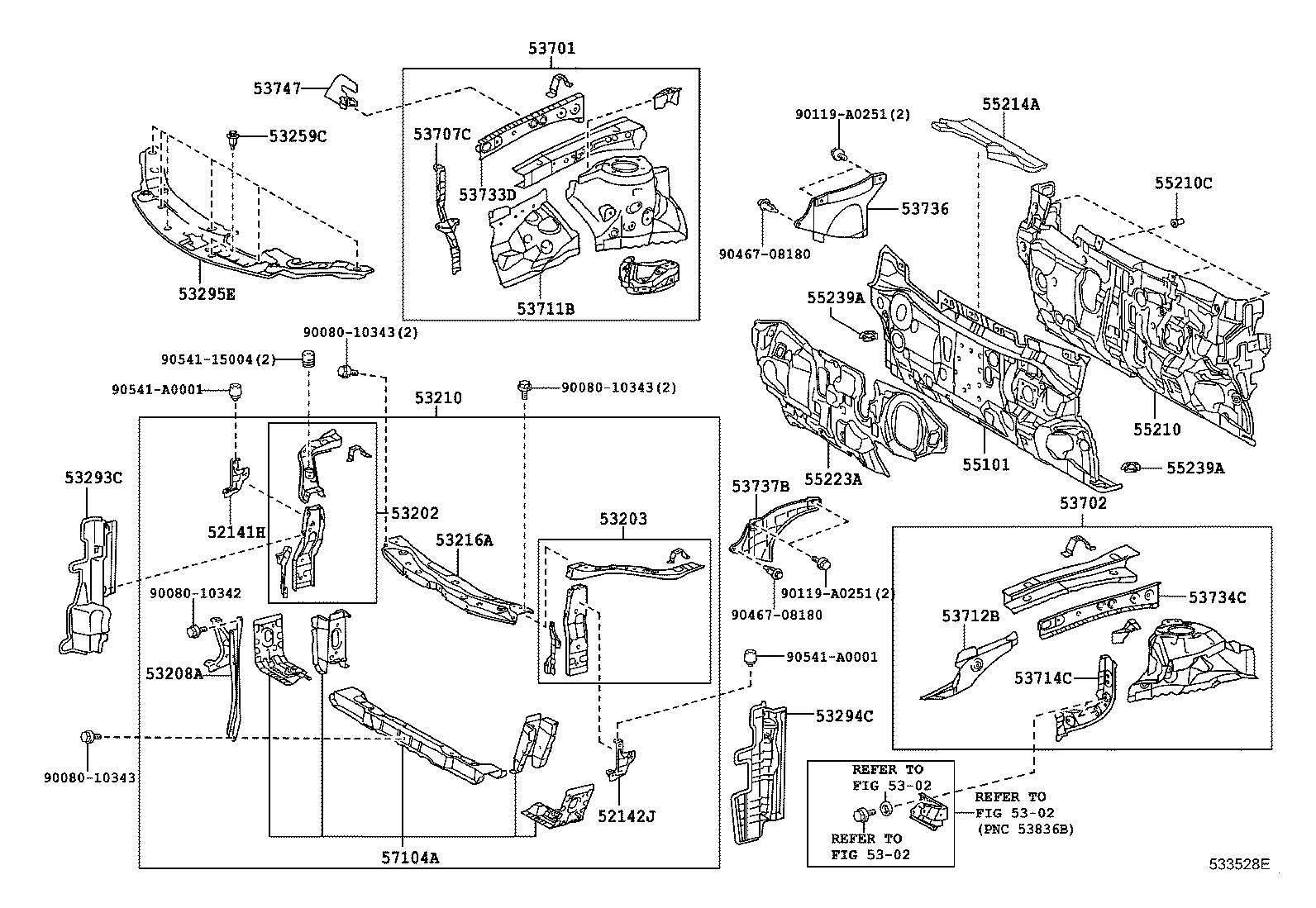

FRONT FENDER APRON DASH PANEL

(1109- )ASV50,GSV50..SE

CAMRY HYBRID | FRONT FENDER APRON DASH PANEL 52141H - ARM, FRONT BUMPER, UPPER RH 52142J - ARM, FRONT BUMPER, UPPER LH ** Refer Fig ** Refer Fig ** Refer Fig 53202 - SUPPORT SUB-ASSY, RADIATOR, RH 53203 - SUPPORT SUB-ASSY, RADIATOR, LH 53208A - SUPPORT SUB-ASSY, HOOD LOCK 53210 - SUPPORT ASSY, RADIATOR 53216A - SUPPORT, RADIATOR, UPPER 53259C - CLIP, RADIATOR SUPPORT TO FRAME SEAL 53293C - DEFLECTOR, RADIATOR SIDE, RH 53294C - DEFLECTOR, RADIATOR SIDE, LH 53295E - SEAL, COOL AIR INTAKE DUCT 53701 - APRON SUB-ASSY, FRONT FENDER, RH 53702 - APRON SUB-ASSY, FRONT FENDER, LH 53707C - EXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH 53711B - APRON, FRONT FENDER, FRONT RH 53712B - APRON, FRONT FENDER, FRONT LH 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH 53736 - SEAL, FRONT FENDER APRON, RH 53737B - SEAL, FRONT FENDER APRON, LH 53747 - PLATE, AIR SEALED, RH 55101 - PANEL SUB-ASSY, DASH 55210 - INSULATOR ASSY, DASH PANEL 55210C - CLIP 55214A - PAD, DASH PANEL INSULATOR, NO.2 55223A - INSULATOR, DASH PANEL, OUTER 55239A - PLATE, DASH PANEL INSULATOR, NO.3 55239A - PLATE, DASH PANEL INSULATOR, NO.3 57104A - MEMBER SUB-ASSY, FRONT CROSS ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
