TOYOTA MATRIX AZE141L-DHMNKA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

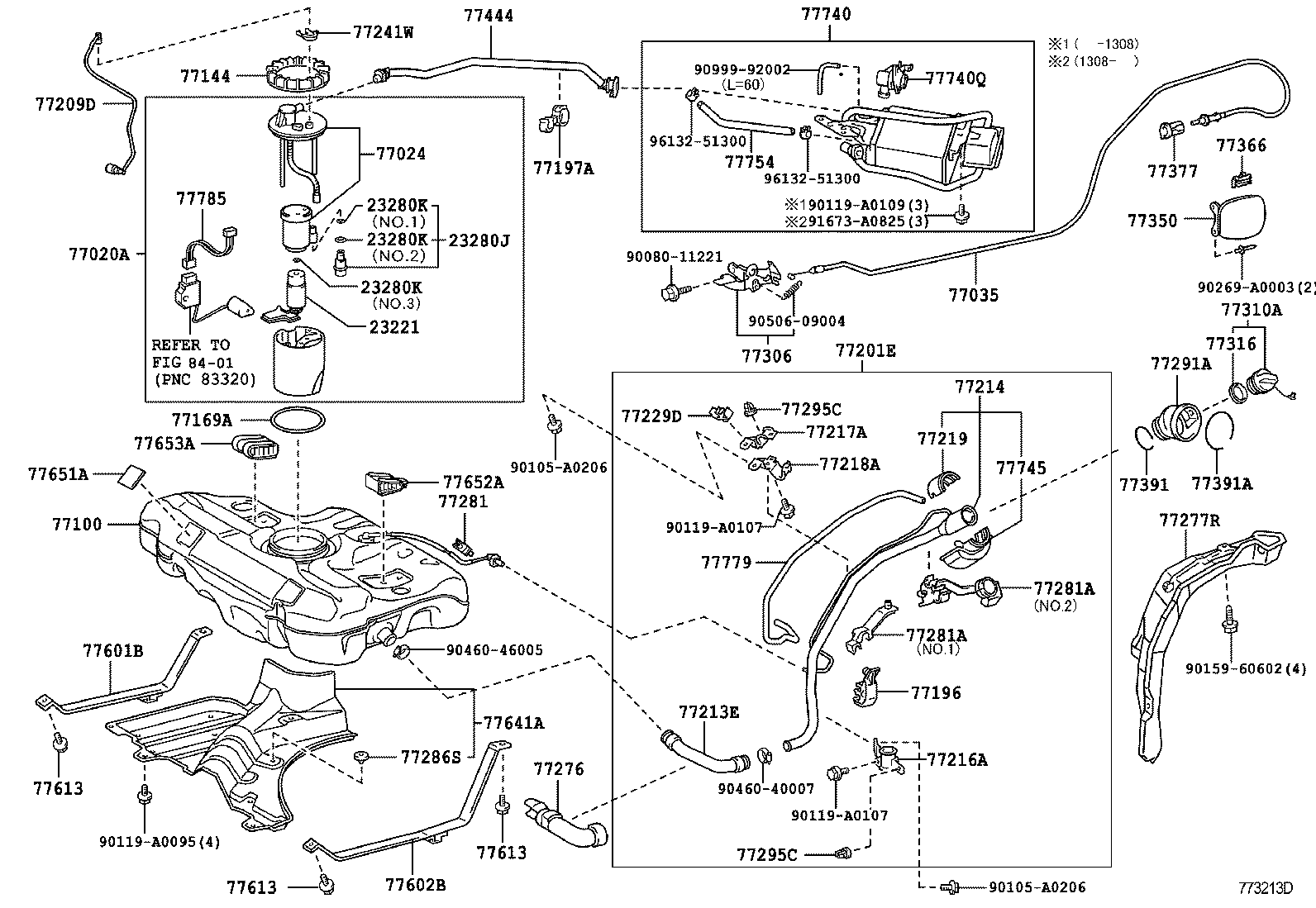

FUEL TANK ILLUST NO. 1 OF 2(1112- )AZE141,ZRE142

 MATRIX |  FUEL TANK TUBE 23221 - PUMP, FUEL 23280J - REGULATOR ASSY, FUEL PRESSURE 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE 77024 - TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77100 - TANK ASSY, FUEL 77144 - RETAINER, FUEL PUMP GAUGE 77169A - GASKET, FUEL SUCTION TUBE SET 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 77201E - PIPE SUB-ASSY, FUEL TANK FILLER 77209D - TUBE SUB-ASSY, FUEL TANK MAIN 77213E - HOSE, FUEL TANK TO FILLER PIPE 77214 - PIPE, FUEL TANK FILLER 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 77219 - COVER, FUEL TANK FILLER PIPE 77229D - SUPPORT, FUEL TANK FILLER PIPE, NO.4 77241W - CLIP, TUBE JOINT 77276 - PROTECTOR, FUEL HOSE 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77281 - BRACKET, FUEL MAIN TUBE, NO.1 77281A - CLAMP, FUEL FILLER PIPE 77281A - CLAMP, FUEL FILLER PIPE 77286S - CUSHION, FUEL TANK PROTECTOR 77291A - SHIELD, FUEL TANK FILLER PIPE 77295C - GROMMET, FUEL TUBE 77295C - GROMMET, FUEL TUBE 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77391 - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77444 - HOSE, FUEL TANK VENT 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH 77613 - BOLT, FUEL TANK BAND SET 77613 - BOLT, FUEL TANK BAND SET 77613 - BOLT, FUEL TANK BAND SET 77641A - PROTECTOR, FUEL TANK, NO.1 77651A - CUSHION, FUEL TANK, NO.1 77652A - CUSHION, FUEL TANK, NO.2 77653A - CUSHION, FUEL TANK, NO.3 77740 - CANISTER ASSY, CHARCOAL 77740Q - LEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER 77745 - FILTER, CHARCOAL CANISTER, NO.1 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 77779 - TUBE, CHARCOAL CANISTER OUTLET 77785 - HARNESS, FUEL PUMP ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
