TOYOTA MATRIX AZE146L-DHASKA / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

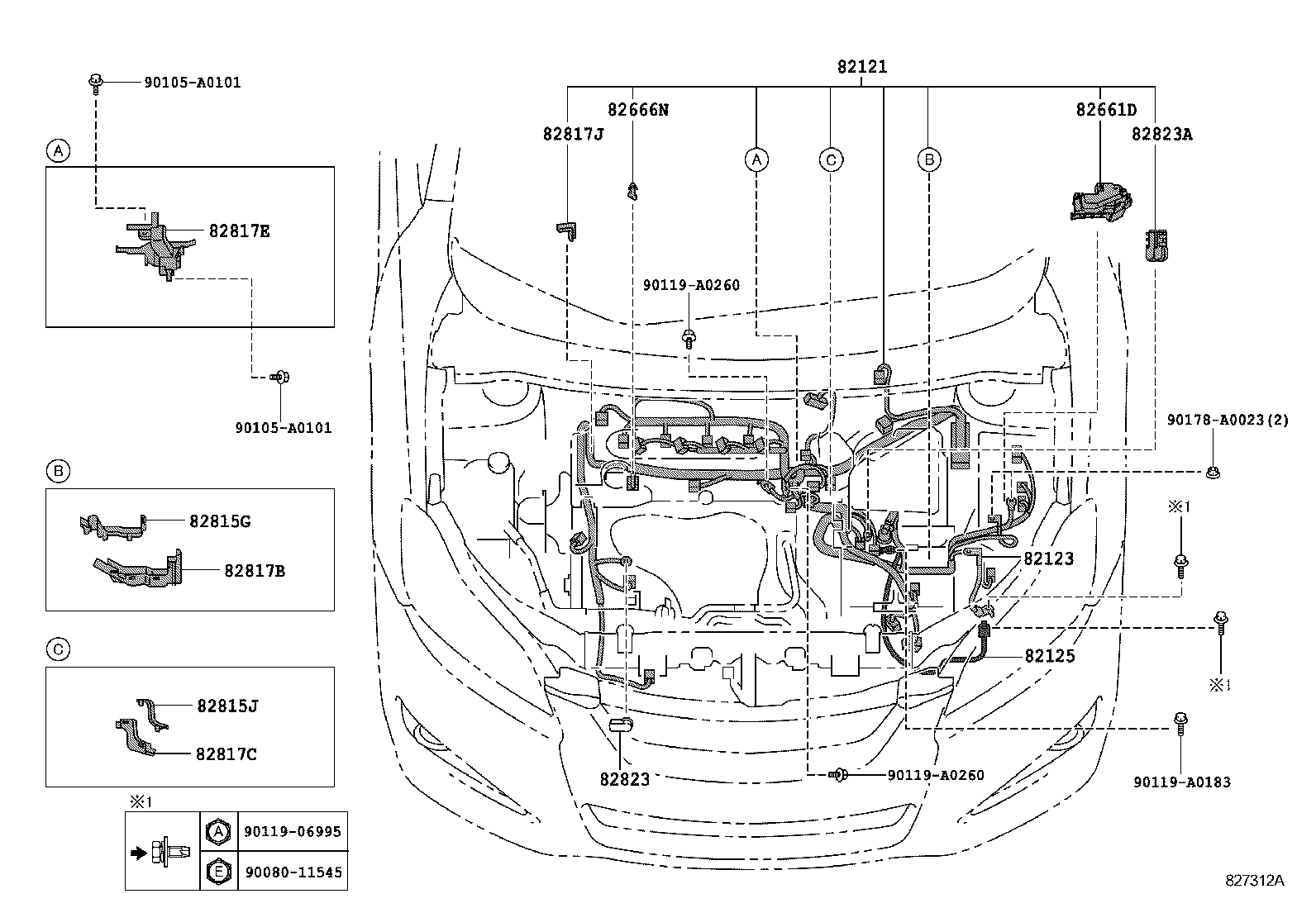

WIRING CLAMP

ENGINE ILLUST NO. 2 OF10(1012- )AZE14#

 MATRIX |  WIRING CLAMP 82121 - WIRE, ENGINE 82123 - WIRE, ENGINE, NO.3 82125 - WIRE, TRANSMISSION 82661D - COVER, RELAY BLOCK, SIDE NO.1 82666N - HOLDER, CONNECTOR NO.10 82815G - COVER, WIRING HARNESS PROTECTOR 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 82817B - PROTECTOR, WIRING HARNESS, NO.3 82817C - PROTECTOR, WIRING HARNESS, NO.4 82817E - PROTECTOR, WIRING HARNESS, NO.6 82817J - PROTECTOR, WIRING HARNESS, NO.9 82823 - CAP, TERMINAL, NO.1 82823A - CAP, TERMINAL, NO.2  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
