TOYOTA AVALON GSX40L-AETPKA / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

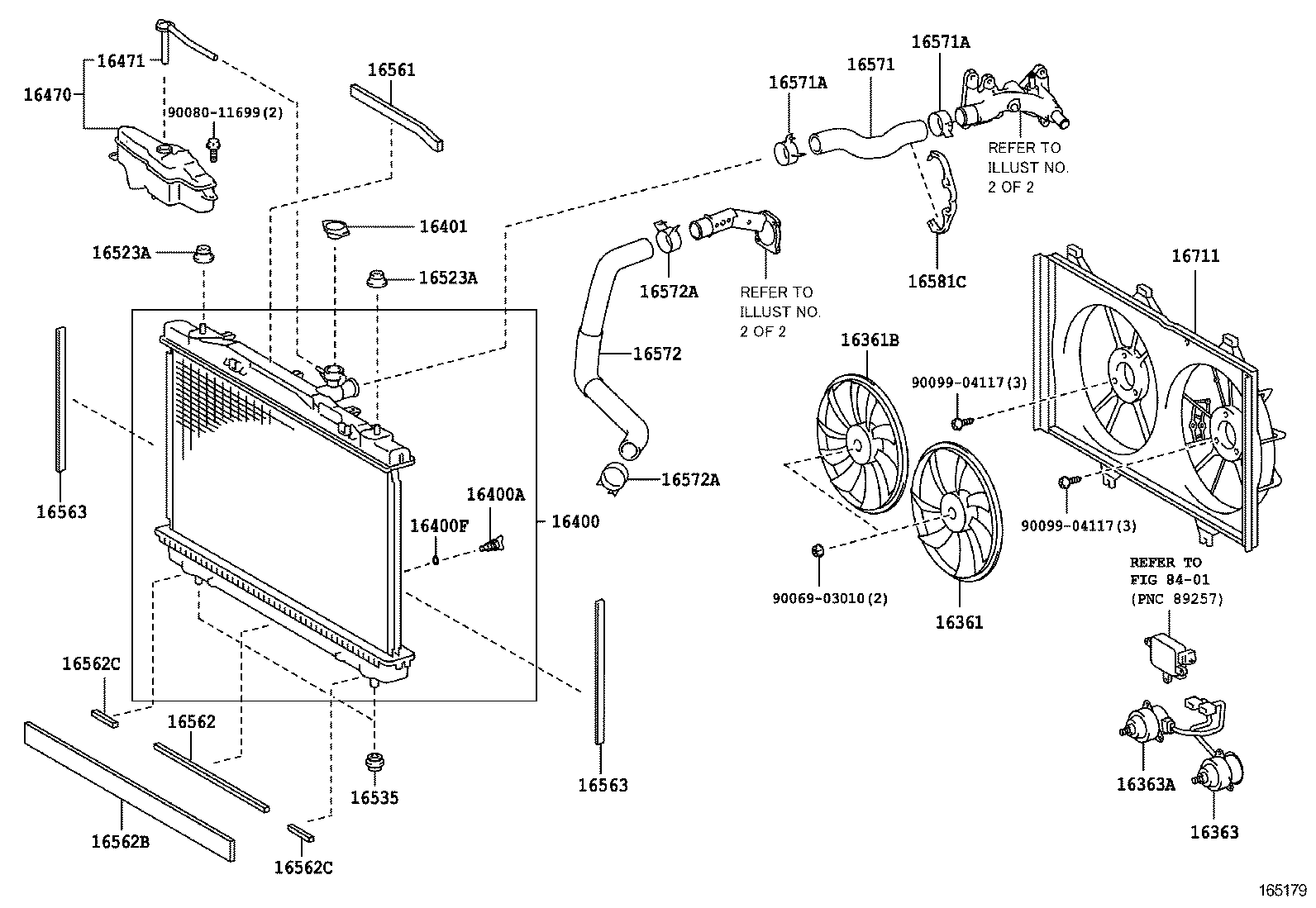

RADIATOR WATER OUTLET

(1210- )2GRFE

 AVALON |  RADIATOR WATER OUTLET 16361 - FAN 16361B - FAN, NO.2 16363 - MOTOR, COOLING FAN 16363A - MOTOR, COOLING FAN, NO.2 16400 - RADIATOR ASSY 16400A - COCK SUB-ASSY, RADIATOR DRAIN 16400F - PACKING(FOR RADIATOR DRAIN COCK) 16401 - CAP SUB-ASSY, RADIATOR 16470 - TANK ASSY, RADIATOR RESERVE 16471 - CAP SUB-ASSY, RESERVE TANK 16523A - CUSHION, RADIATOR SUPPORT 16523A - CUSHION, RADIATOR SUPPORT 16535 - SUPPORT, RADIATOR, LOWER 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 16562B - SEAL, RADIATOR TO SUPPORT, NO.4 16562C - SEAL, RADIATOR TO SUPPORT, NO.5 16562C - SEAL, RADIATOR TO SUPPORT, NO.5 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 16571 - HOSE, RADIATOR, INLET 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16572 - HOSE, RADIATOR, OUTLET 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16581C - CLAMP, HOSE(FOR RADIATOR HOSE NO.2) 16711 - SHROUD, FAN ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part
