TOYOTA CAMRY ASV50L-SETEKA / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR SEAT SEAT TRACK

(1109- )

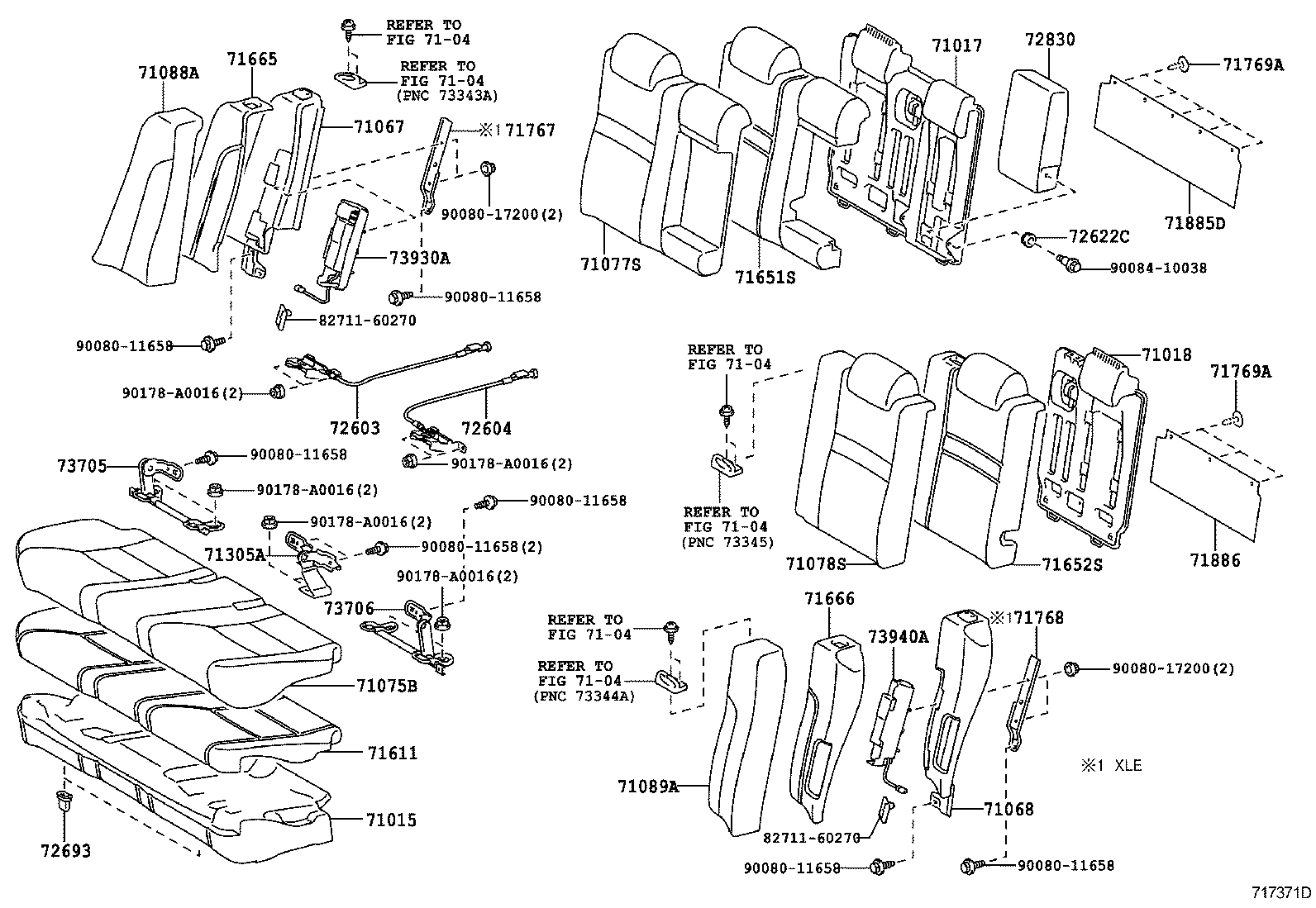

 CAMRY |  REAR SEAT SEAT TRACK 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71067 - FRAME SUB-ASSY, REAR SIDE SEAT BACK, RH 71068 - FRAME SUB-ASSY, REAR SIDE SEAT BACK, LH 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71088A - COVER SUB-ASSY, REAR SIDE SEAT BACK, RH 71089A - COVER SUB-ASSY, REAR SIDE SEAT BACK, LH 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER 71611 - PAD, REAR SEAT CUSHION 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71665 - PAD, REAR SEAT BACK SIDE, RH 71666 - PAD, REAR SEAT BACK SIDE, LH 71767 - BRACKET, REAR SIDE SEAT BACK SET, REAR RH 71768 - BRACKET, REAR SIDE SEAT BACK SET, REAR LH 71769A - CLIP, REAR SEAT BACK BOARD 71769A - CLIP, REAR SEAT BACK BOARD 71885D - CARPET, REAR SEAT BACK, RH 71886 - CARPET, REAR SEAT BACK, LH 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH 72622C - BUSH, REAR SEAT BACK PROTECTOR SHAFT 72693 - HOOK, REAR SEAT CUSHION LOCK 72830 - ARMREST ASSY, REAR SEAT, CENTER 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH 73930A - AIR BAG ASSY, REAR SEAT, RH 73940A - AIR BAG ASSY, REAR SEAT, LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
