TOYOTA RAV4 EV QEA38L-CNDGSA / BODY / FRONT FLOOR PANEL FRONT FLOOR MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT FLOOR PANEL FRONT FLOOR MEMBER

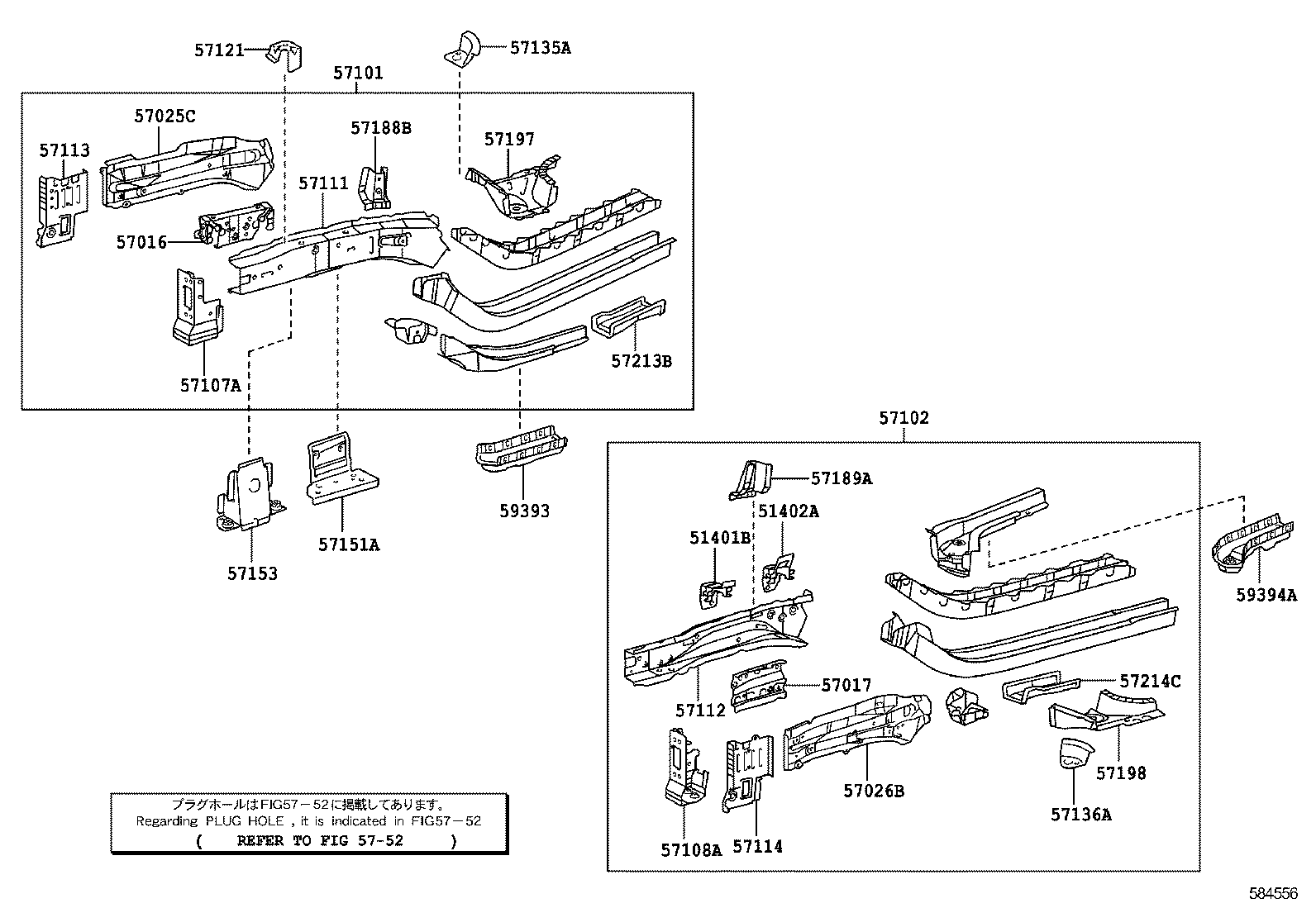

FRONT SIDE MEMBER ILLUST NO. 1 OF 2(1204- )

RAV4 EV | FRONT FLOOR PANEL FRONT FLOOR MEMBER 51401B - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING 51402A - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH 57025C - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH 57026B - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH 57107A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH 57108A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH 57111 - MEMBER, FRONT SIDE, RH 57112 - MEMBER, FRONT SIDE, LH 57113 - EXTENSION, FRONT SIDE MEMBER, RH 57114 - EXTENSION, FRONT SIDE MEMBER, LH 57121 - BRACKET, FRONT BODY MOUNTING, RH 57135A - BRACKET, FRONT FLOOR SIDE, RH 57136A - BRACKET, FRONT FLOOR SIDE, LH 57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH 57153 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH 57188B - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH 57189A - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH 57197 - BOX, TORQUE, FRONT RH 57198 - BOX, TORQUE, FRONT LH 57213B - EXTENSION, FRONT SIDE MEMBER, NO.2 RH 57214C - EXTENSION, FRONT SIDE MEMBER, NO.2 LH ** Refer Fig 59393 - BRACKET, FLOOR STEP SUPPORT 59394A - BRACKET, FLOOR STEP SUPPORT, NO.2
