TOYOTA TUNDRA UPK56L-CRTSKA / TOOL-ENGINE-FUEL / MANIFOLD AIR INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

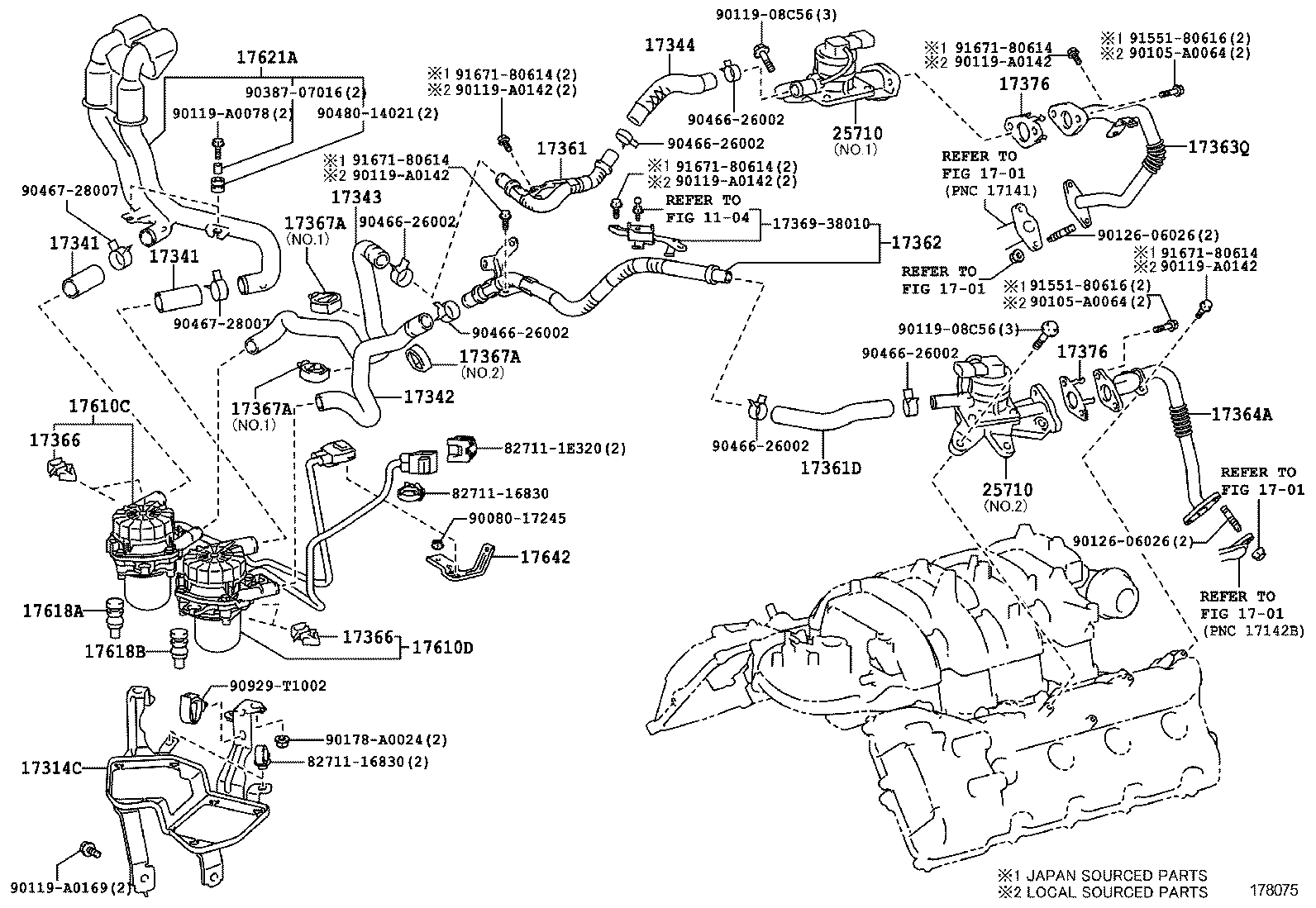

MANIFOLD AIR INJECTION SYSTEM

(1308- )1URFE

TUNDRA | MANIFOLD AIR INJECTION SYSTEM ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 17314C - BRACKET, AIR PUMP 17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM) 17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM) 17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM) 17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM) 17344 - HOSE, NO.4(FOR AIR INJECTION SYSTEM) 17361 - TUBE, AIR 17361D - HOSE, NO.2(FOR AIR TUBE) 17362 - TUBE, AIR, NO.2 17363Q - TUBE, AIR, NO.3 17364A - TUBE, AIR NO.4 17366 - CLAMP, AIR INJECTION HOSE, NO.1 17366 - CLAMP, AIR INJECTION HOSE, NO.1 17367A - CLAMP, AIR INJECTION HOSE, NO.2 17367A - CLAMP, AIR INJECTION HOSE, NO.2 17367A - CLAMP, AIR INJECTION HOSE, NO.2 ** Std Part 17376 - GASKET, AIR TUBE, NO.1 17376 - GASKET, AIR TUBE, NO.1 17610C - PUMP ASSY, AIR 17610D - PUMP ASSY, AIR, NO.1 17618A - INSULATOR, AIR PUMP 17618B - INSULATOR, AIR PUMP, NO.1 17621A - INLET, AIR PUMP 17642 - BRACKET, AIR PUMP WIRE 25710 - VALVE ASSY, AIR SWITCHING 25710 - VALVE ASSY, AIR SWITCHING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
