LEXUS LS400 UCF20L-AEAGKV / POWERTRAIN-CHASSIS / PARKING BRAKE CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

PARKING BRAKE CABLE

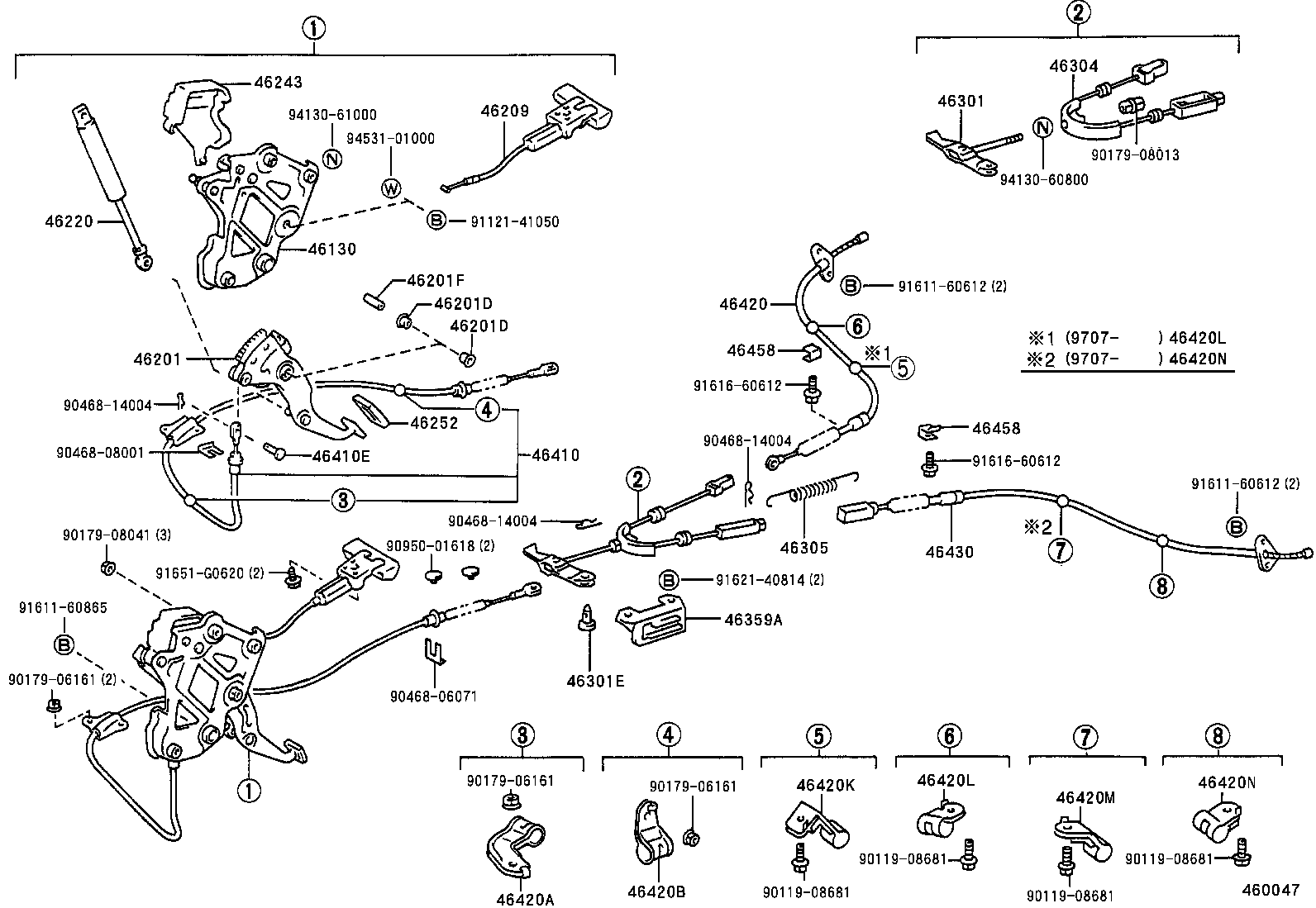

ILLUST NO. 1 OF 2(9410- )LHD

 LS400 |  PARKING BRAKE CABLE 46130 - BRACKET ASSY, PARKING BRAKE PEDAL 46201 - PEDAL SUB-ASSY, PARKING BRAKE 46201D - BUSH(FOR PARKING BRAKE PEDAL) 46201D - BUSH(FOR PARKING BRAKE PEDAL) 46201F - COLLAR(FOR PARKING BRAKE PEDAL) 46209 - CABLE SUB-ASSY, PARKING BRAKE RELEASE 46220 - ABSORBER ASSY, PARKING BRAKE PEDAL RETURN 46243 - COVER, PARKING BRAKE LEVER 46252 - PAD, PARKING PEDAL 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE 46301E - PIN, W/HOLE(FOR INTERMEDIATE LEVER) 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE 46305 - SPRING, PARKING BRAKE RETURN W/DAMPER 46359A - BRACKET, PARKING BRAKE INTERMEDIATE LEVER SUPPORT 46410 - CABLE ASSY, PARKING BRAKE, NO.1 46410E - PIN, W/HOLE(FOR PARKING BRAKE CABLE NO.1) 46420 - CABLE ASSY, PARKING BRAKE, NO.2 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) 46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE) 46420M - CLAMP, NO.6(FOR PARKING BRAKE CABLE) 46420N - CLAMP, NO.7(FOR PARKING BRAKE CABLE) 46430 - CABLE ASSY, PARKING BRAKE, NO.3 46458 - RETAINER, CABLE 46458 - RETAINER, CABLE  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
