LEXUS LS460 460L USF40L-AEZGKW / TOOL-ENGINE-FUEL / MANIFOLD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

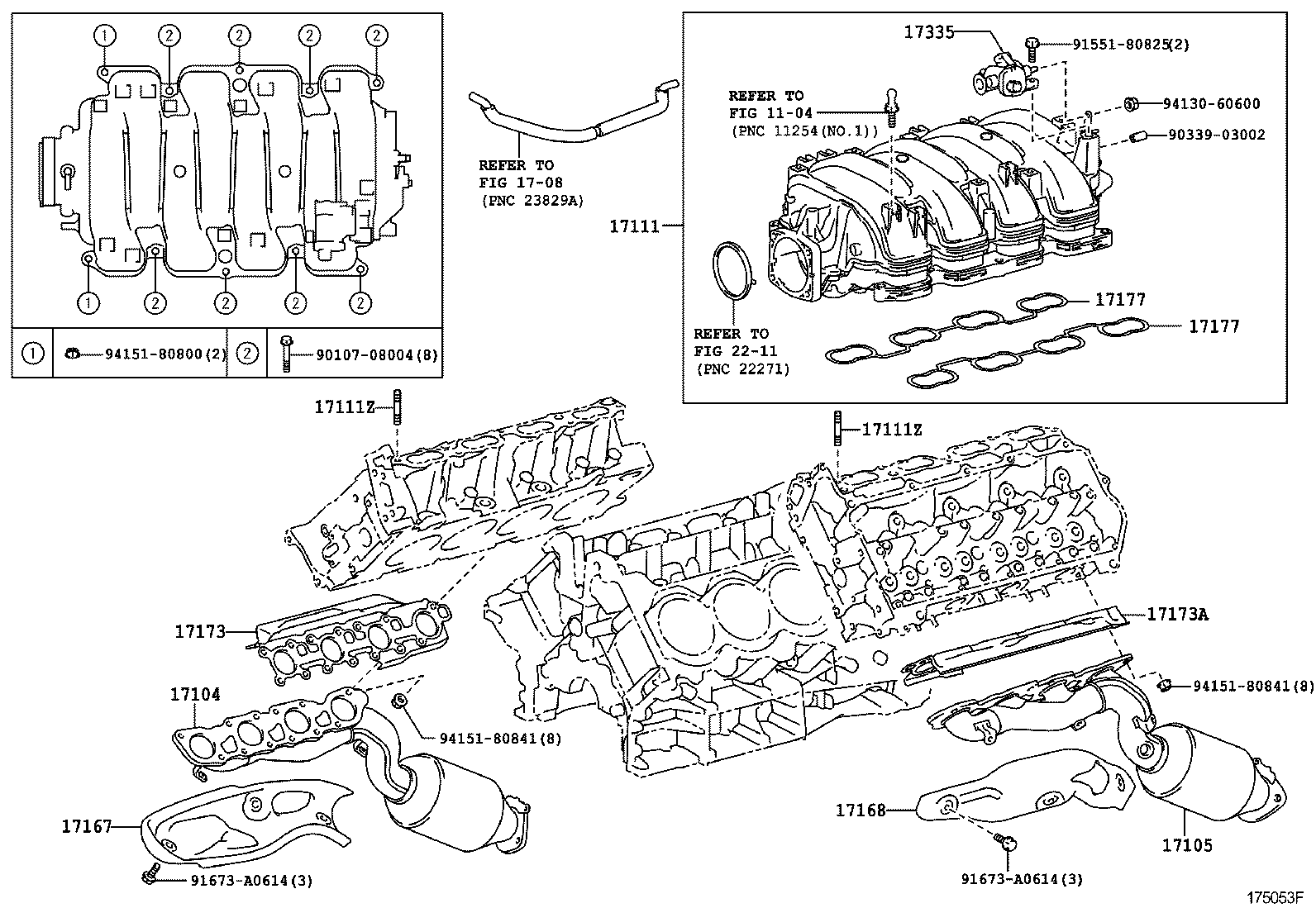

MANIFOLD

(0608- )1URFE

 LS460 460L |  MANIFOLD ** Refer Fig ** Refer Fig 17104 - MANIFOLD SUB-ASSY, EXHAUST, RH 17105 - MANIFOLD SUB-ASSY, EXHAUST, LH 17111 - MANIFOLD, INTAKE 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 17173 - GASKET, EXHAUST MANIFOLD TO HEAD 17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 17335 - ACTUATOR, INTAKE AIR CONTROL VALVE ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
