LEXUS SOARER SC430 UZZ40-DKTQK / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

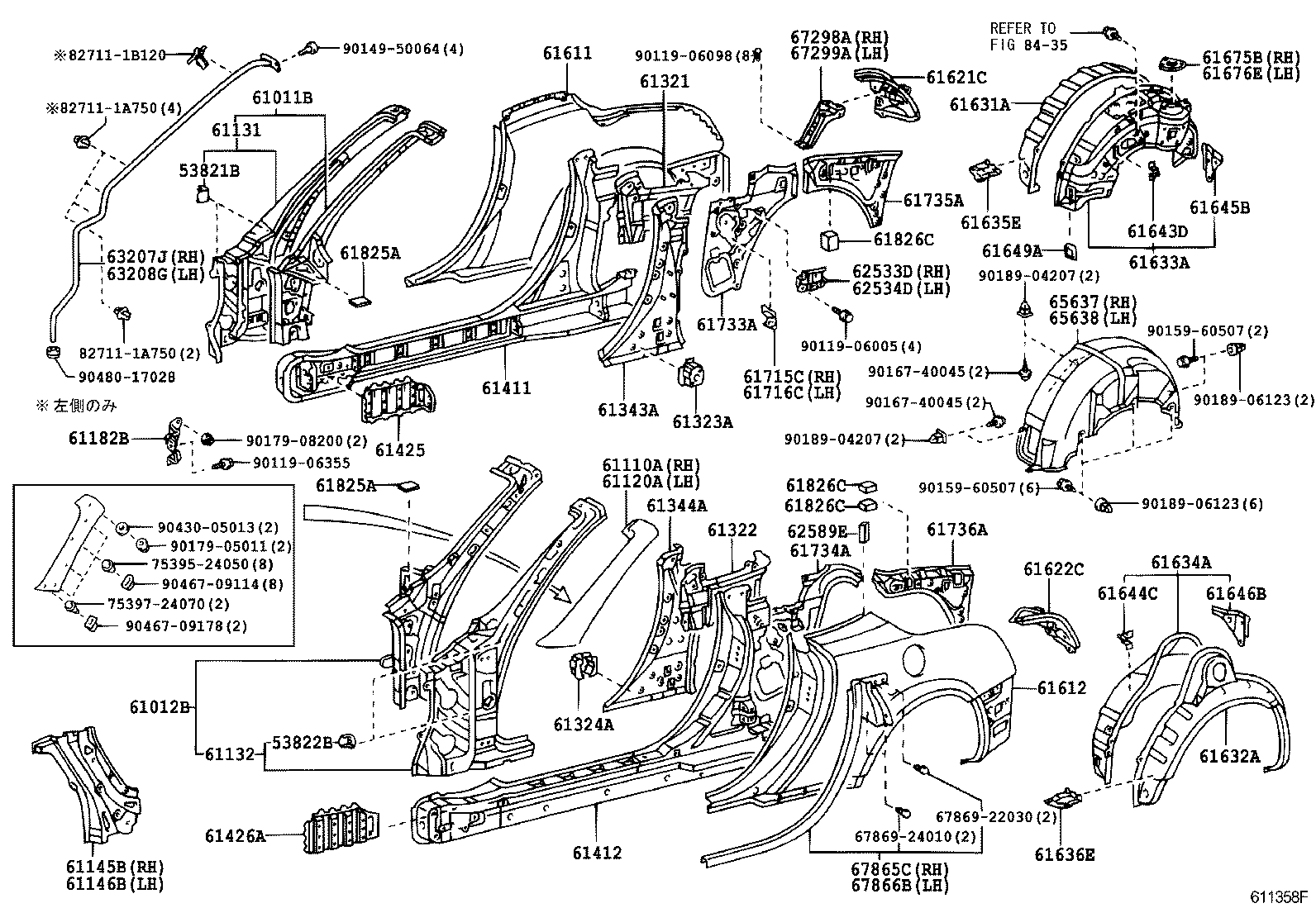

SIDE MEMBER

ILLUST NO. 1 OF 2(0104- )

 SOARER SC430 |  SIDE MEMBER 53821B - BRACKET, FRONT FENDER, REAR RH 53822B - BRACKET, FRONT FENDER, REAR LH 61011B - PANEL SUB-ASSY, SIDE, OUTER RH 61012B - PANEL SUB-ASSY, SIDE, OUTER LH 61110A - PILLAR ASSY, FRONT BODY, OUTER RH 61120A - PILLAR ASSY, FRONT BODY, OUTER LH 61131 - PILLAR, FRONT BODY, UPPER OUTER RH 61132 - PILLAR, FRONT BODY, UPPER OUTER LH 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH 61182B - BRACKET, INSTRUMENT PANEL SIDE, NO.1 LH 61321 - REINFORCEMENT, CENTER BODY PILLAR, UPPER RH 61322 - REINFORCEMENT, CENTER BODY PILLAR, UPPER LH 61323A - REINFORCEMENT, CENTER BODY PILLAR, LOWER RH 61324A - REINFORCEMENT, CENTER BODY PILLAR, LOWER LH 61343A - PILLAR, CENTER BODY, INNER RH 61344A - PILLAR, CENTER BODY, INNER LH 61411 - PANEL, ROCKER, OUTER RH 61412 - PANEL, ROCKER, OUTER LH 61425 - REINFORCEMENT, ROCKER PANEL, NO.4 RH 61426A - REINFORCEMENT, ROCKER PANEL, NO.4 LH 61611 - PANEL, QUARTER, RH 61612 - PANEL, QUARTER, LH 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH 61635E - EXTENSION, QUARTER WHEEL HOUSE, RH 61636E - EXTENSION, QUARTER WHEEL HOUSE, LH 61643D - PATCH, QUARTER WHEEL HOUSE, NO.1 RH 61644C - PATCH, QUARTER WHEEL HOUSE, NO.1 LH 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH 61649A - PLATE, QUARTER WHEEL HOUSE 61675B - REINFORCEMENT, REAR SUSPENSION SPRING SUPPORT 61676E - REINFORCEMENT, REAR SUSPENSION SPRING SUPPORT 61715C - BRACKET, ROOF SIDE, RH 61716C - BRACKET, ROOF SIDE, LH 61733A - PANEL, ROOF SIDE, INNER FRONT RH 61734A - PANEL, ROOF SIDE, INNER FRONT LH 61735A - PANEL, ROOF SIDE, INNER REAR RH 61736A - PANEL, ROOF SIDE, INNER REAR LH 61825A - PLATE, NOISE CONTROL, NO.2 61825A - PLATE, NOISE CONTROL, NO.2 61826C - PAD, NOISE SHUTTER, NO.3 61826C - PAD, NOISE SHUTTER, NO.3 61826C - PAD, NOISE SHUTTER, NO.3 62533D - BRACKET, QUARTER TRIM, NO.1, RH 62534D - BRACKET, QUARTER TRIM, NO.1, LH 62589E - PAD, QUARTER PILLAR 63207J - HOSE SUB-ASSY, REMOVE ROOF DRAIN, RH 63208G - HOSE SUB-ASSY, REMOVE ROOF DRAIN, LH 65637 - LINER, REAR WHEEL HOUSE, RH 65638 - LINER, REAR WHEEL HOUSE, LH 67298A - BRACKET, BACK DOOR STOPPER, RH 67299A - BRACKET, BACK DOOR STOPPER, LH 67865C - WEATHERSTRIP, CENTER PILLAR UPPER END, RH 67866B - WEATHERSTRIP, CENTER PILLAR UPPER END, LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
