LEXUS SOARER SC430 UZZ40-DKTQK / POWERTRAIN-CHASSIS / SHIFT LEVER RETAINER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

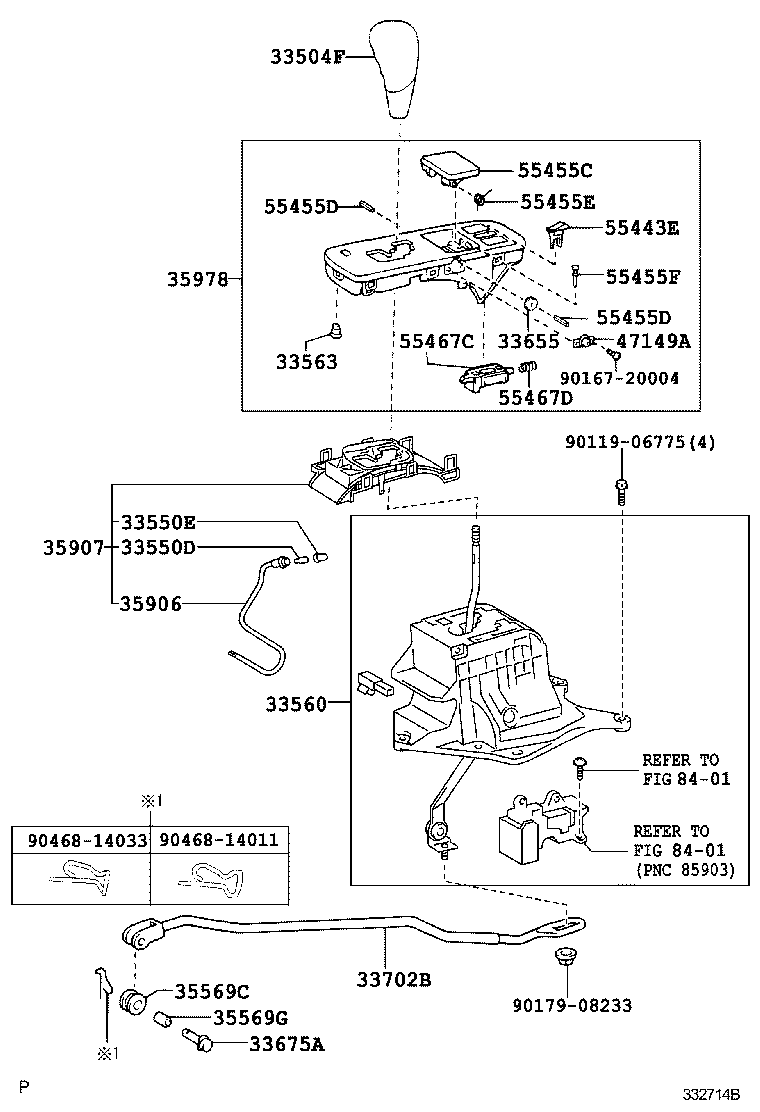

SHIFT LEVER RETAINER

(0508- )

 SOARER SC430 |  SHIFT LEVER RETAINER 33504F - KNOB SUB-ASSY, SHIFT LEVER 33550D - BULB, POSITION INDICATOR LAMP 33550E - CAP, POSITION INDICATOR LAMP 33560 - UNIT ASSY, SHIFT LOCK CONTROL 33563 - BUTTON, SHIFT LOCK RELEASE 33655 - GEAR, SHIFT LEVER, NO.1 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) 33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) 35569C - GROMMET (FOR TRANSMISSION CONTROL ROD) 35569G - BUSH (FOR TRANSMISSION CONTROL ROD) 35906 - WIRE SUB-ASSY, INDICATOR LAMP 35907 - HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT) 35978 - INDICATOR, SHIFT POSITION 47149A - DAMPER, RETURN SPRING 55443E - KNOB, SHIFT POSITION INDICATOR 55455C - PANEL, COIN BOX, NO.1 55455D - PIN, STRAIGHT 55455D - PIN, STRAIGHT 55455E - SPRING, TORSION(FOR COIN BOX PANEL) 55455F - PIN, STRAGHT(FOR COIN BOX PANEL) 55467C - LOCK, COIN BOX 55467D - SPRING, COMPRESSION(FOR COIN BOX LOCK) ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
