LEXUS LFA LFA10-FCRAF / TOOL-ENGINE-FUEL / VENTILATION HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

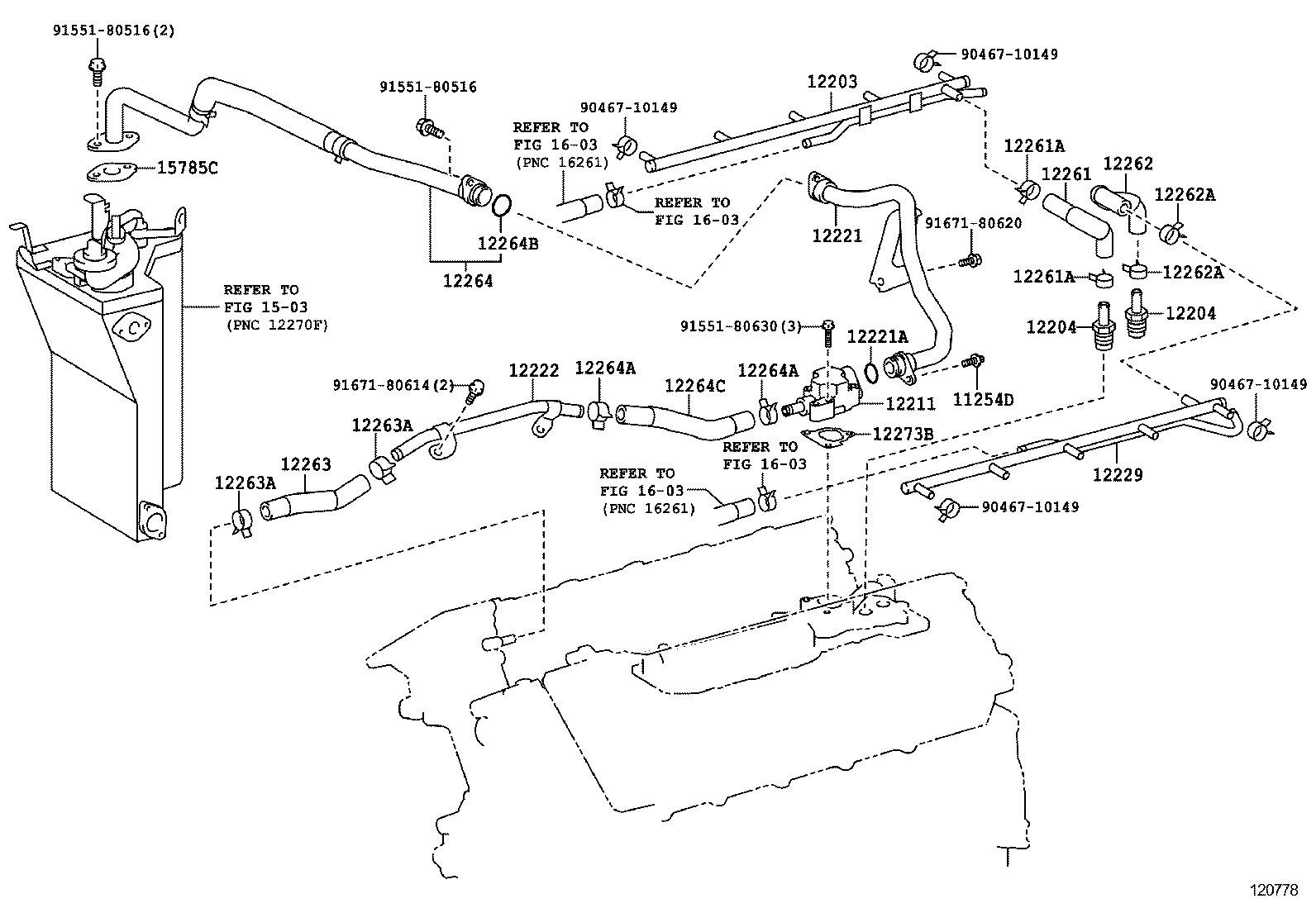

VENTILATION HOSE

(1012- )

 LFA |  VENTILATION HOSE 11254D - BOLT, V-BANK COVER 12203 - PIPE SUB-ASSY, VENTILATION 12204 - VALVE SUB-ASSY, VENTILATION 12204 - VALVE SUB-ASSY, VENTILATION 12211 - CASE, VENTLATION, NO.1 12221 - TUBE, VENTILATION NO.1 12221A - RING, O(FOR VENTILATION TUBE NO.1) 12222 - TUBE, VENTILATION, NO.2 12229 - PIPE, VENTILATION 12261 - HOSE, VENTILATION 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) 12262 - HOSE, VENTILATION, NO.2 12262A - CLIP(FOR VENTILATION HOSE NO.2) 12262A - CLIP(FOR VENTILATION HOSE NO.2) 12263 - HOSE, VENTILATION, NO.3 12263A - CLIP(FOR VENTILATION HOSE) 12263A - CLIP(FOR VENTILATION HOSE) 12264 - HOSE, VENTILATION, NO.4 12264A - CLIP(FOR VENTILATION HOSE) 12264A - CLIP(FOR VENTILATION HOSE) 12264B - RING O(FOR VENTILATION HOSE NO.4) 12264C - HOSE, VENTILATION, NO.5 12273B - GASKET, OIL SEPARATOR ** Refer Fig 15785C - GASKET, OIL COOLER ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
