LEXUS ES250 VZV21L-CTPNKK / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

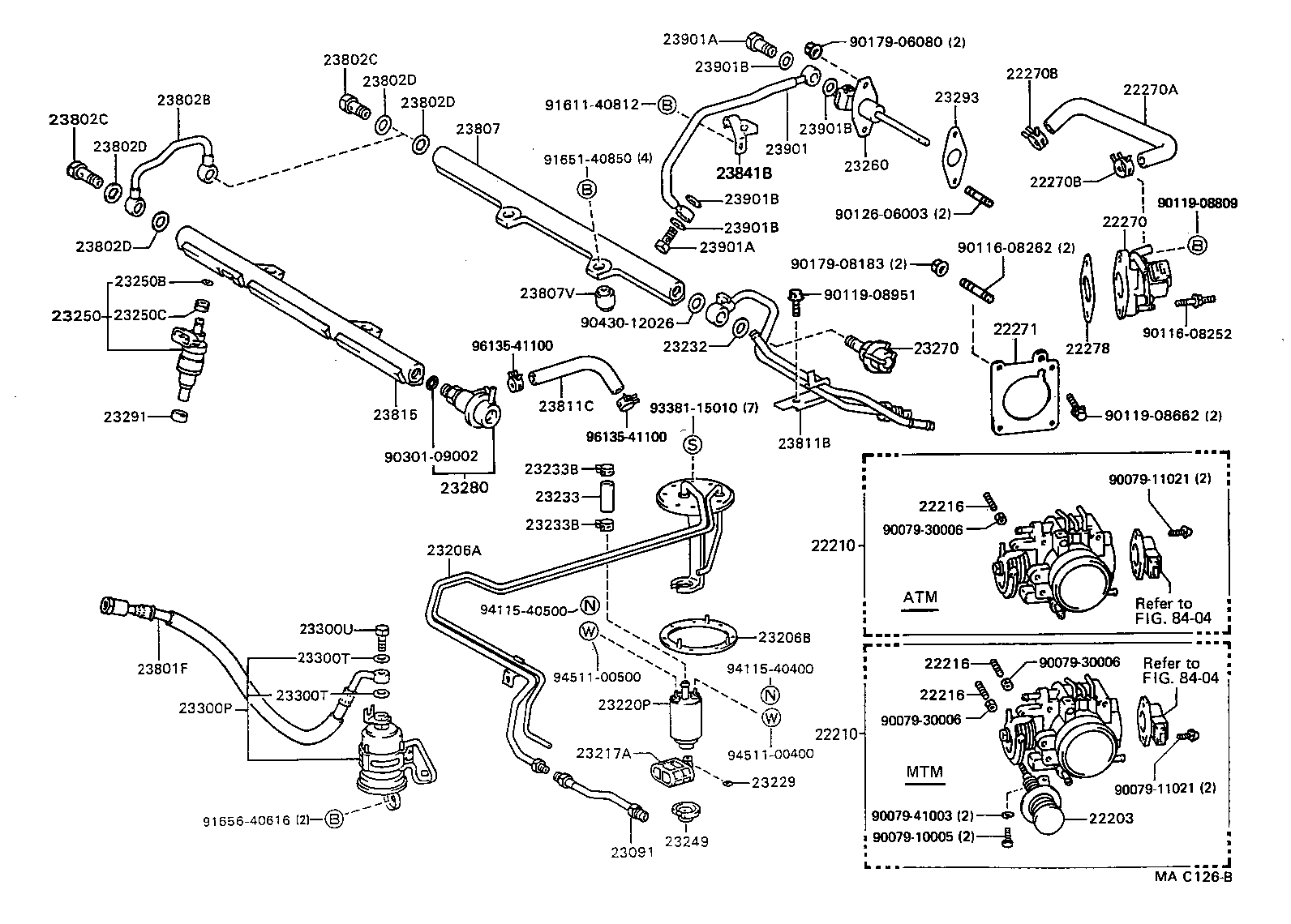

FUEL INJECTION SYSTEM

(8906- )

 ES250 |  FUEL INJECTION SYSTEM 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) 22210 - BODY ASSY, THROTTLE 22210 - BODY ASSY, THROTTLE 22216 - SCREW, DASH POT ADJUSTING 22216 - SCREW, DASH POT ADJUSTING 22216 - SCREW, DASH POT ADJUSTING 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) 22270A - HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE) 22270B - CLIP(FOR AIR HOSE) 22270B - CLIP(FOR AIR HOSE) 22271 - GASKET, THROTTLE BODY 22278 - GASKET, IDLE SPEED CONTROL VALVE 23091 - TUBE SUB-ASSY, FUEL PUMP 23206A - BRACKET, FUEL PUMP 23206B - GASKET, FUEL PUMP BRACKET 23217A - FILTER, FUEL PUMP 23220P - PUMP ASSY, FUEL 23229 - CLIP(FOR FUEL PUMP FILTER) 23232 - GASKET(FOR FUEL PUMP HOSE) 23233 - HOSE, FUEL PUMP 23233B - CLIP(FOR FUEL PUMP HOSE) 23233B - CLIP(FOR FUEL PUMP HOSE) 23249 - RUBBER, CUSHION(FOR FUEL PUMP) 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23250C - GROMMET(FOR FUEL INJECTOR) 23260 - INJECTOR ASSY, COLD START FUEL 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION 23280 - REGULATOR ASSY, FUEL PRESSURE 23291 - INSULATOR, INJECTOR VIBRATION 23293 - GASKET, COLD START INJECTOR 23300P - FILTER, FUEL(FOR EFI) 23300T - GASKET(FOR FUEL FILTER) 23300T - GASKET(FOR FUEL FILTER) 23300U - BOLT, UNION(FOR FUEL FILTER) 23801F - HOSE, FUEL, NO.1 23802B - PIPE SUB-ASSY, FUEL, NO.2 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) 23802D - GASKET(FOR FUEL PIPE NO.2) 23802D - GASKET(FOR FUEL PIPE NO.2) 23802D - GASKET(FOR FUEL PIPE NO.2) 23802D - GASKET(FOR FUEL PIPE NO.2) 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23807V - SPACER, NO.1(FOR DELIVERY PIPE) 23811B - PIPE, FUEL, NO.1 23811C - HOSE, FUEL(FOR FUEL PIPE TO PRESSURE REGULATOR) 23815 - PIPE, FUEL DELIVERY, NO.2 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) 23901 - TUBE SUB-ASSY, FUEL 23901A - BOLT, UNION(FOR FUEL TUBE) 23901A - BOLT, UNION(FOR FUEL TUBE) 23901B - GASKET(FOR FUEL TUBE) 23901B - GASKET(FOR FUEL TUBE) 23901B - GASKET(FOR FUEL TUBE) 23901B - GASKET(FOR FUEL TUBE) ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
