LEXUS ES300 MCV10L-BTPGKA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

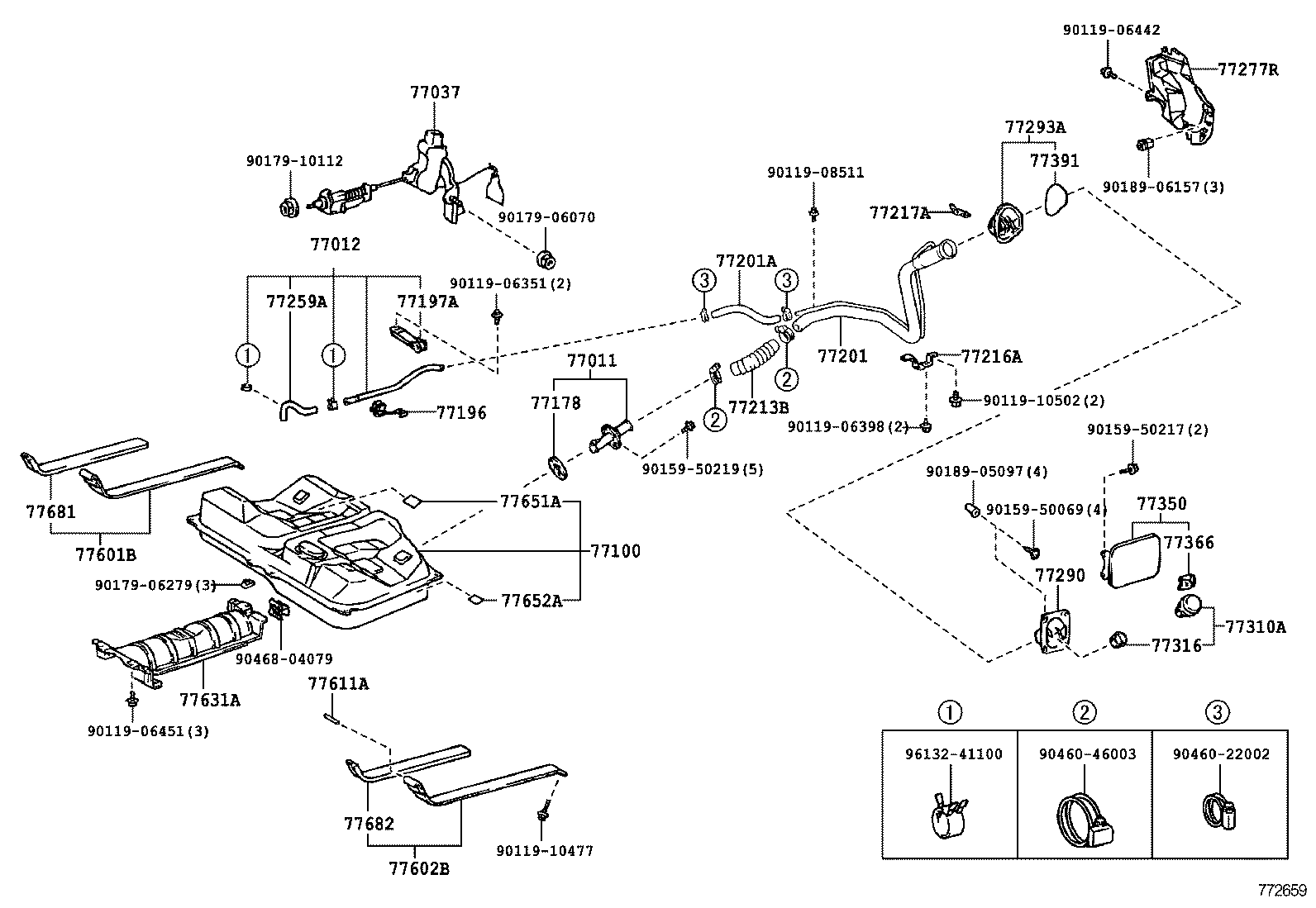

ILLUST NO. 1 OF 2(9107- )

ES300 | FUEL TANK TUBE 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID 77100 - TANK ASSY, FUEL 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) 77213B - HOSE, FUEL TANK TO FILLER PIPE 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77259A - HOSE, FUEL(FOR BREATHER TUBE) 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77391 - RING, FUEL INLET BOX 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH 77611A - PIN (FOR FUEL TANK BAND) 77631A - PROTECTOR, FUEL TANK, LOWER CENTER 77651A - CUSHION, FUEL TANK, NO.1 77652A - CUSHION, FUEL TANK, NO.2 77681 - SEAT, FUEL TANK BAND, RH 77682 - SEAT, FUEL TANK BAND, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
