LEXUS LS430 UCF30L-AEAGKA / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT FENDER APRON DASH PANEL

(0008-0208)

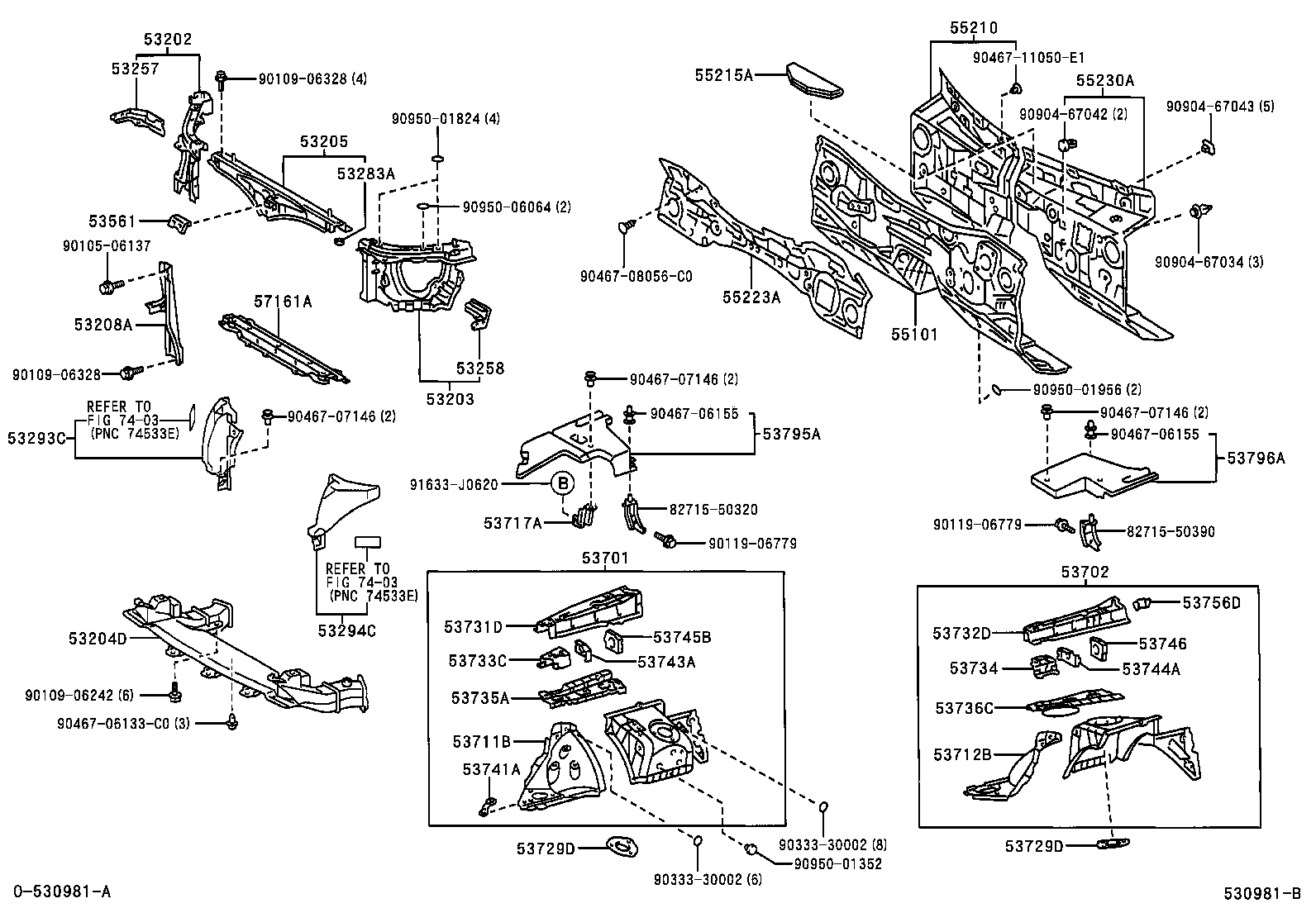

LS430 | FRONT FENDER APRON DASH PANEL 53202 - SUPPORT SUB-ASSY, RADIATOR, RH 53203 - SUPPORT SUB-ASSY, RADIATOR, LH 53204D - GUIDE SUB-ASSY, LOWER WIND 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER 53208A - SUPPORT SUB-ASSY, HOOD LOCK 53257 - BRACKET, FRONT END PANEL MOUNTING, RH 53258 - BRACKET, FRONT END PANEL MOUNTING, LH 53283A - REINFORCEMENT, RADIATOR SUPPORT, LOWER 53293C - DEFLECTOR, RADIATOR SIDE, RH 53294C - DEFLECTOR, RADIATOR SIDE, LH 53561 - GUIDE, HOOD AUXILIARY CATCH HOOK 53701 - APRON SUB-ASSY, FRONT FENDER, RH 53702 - APRON SUB-ASSY, FRONT FENDER, LH 53711B - APRON, FRONT FENDER, FRONT RH 53712B - APRON, FRONT FENDER, FRONT LH 53717A - PLATE, FENDER APRON 53729D - REINFORCEMENT, FRONT SPRING SUPPORT, NO.3 53729D - REINFORCEMENT, FRONT SPRING SUPPORT, NO.3 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH 53733C - PATCH, FRONT FENDER APRON 53734 - PATCH, FRONT FENDER APRON, NO.4 53735A - MEMBER, FRONT APRON TO COWL SIDE, LOWER RH 53736C - MEMBER, FRONT APRON TO COWL SIDE, LOWER LH 53741A - PLATE, FENDER APRON REINFORCE, RH 53743A - REINFORCEMENT, FRONT FENDER APRON, FRONT RH 53744A - REINFORCEMENT, FRONT FENDER APRON, FRONT LH 53745B - REINFORCEMENT, FRONT FENDER APRON, REAR RH 53746 - REINFORCEMENT, FRONT FENDER APRON, REAR LH 53756D - BRACKET, BRAKE ACTUATOR MOUNTING 53795A - COVER, ENGINE ROOM, SIDE 53796A - COVER, ENGINE ROOM SIDE, LH 55101 - PANEL SUB-ASSY, DASH 55210 - INSULATOR ASSY, DASH PANEL 55215A - PAD, DASH PANEL INSULATOR, NO.3 55223A - INSULATOR, DASH PANEL, OUTER 55230A - INSULATOR ASSY, DASH PANEL, NO.4 57161A - MEMBER, FRONT CROSS, FRONT W/REAR ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
