LEXUS GS30 35 43 460 GRS195L-BETQHA / ELECTRICAL / HEADLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

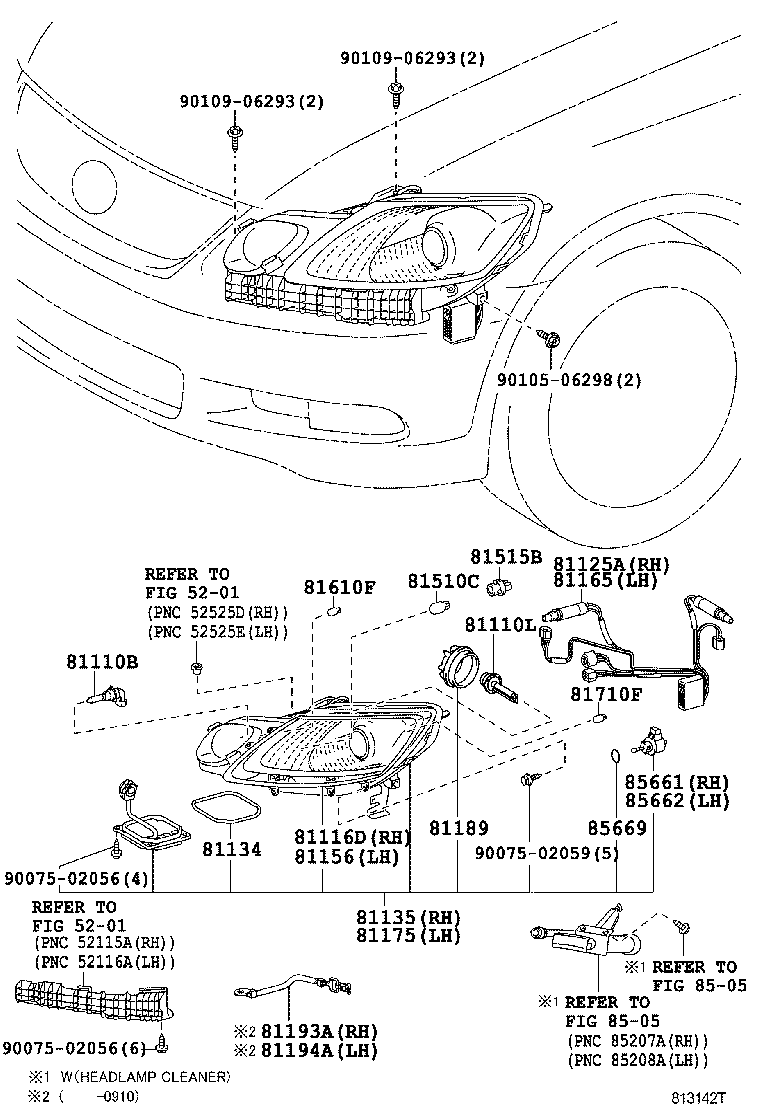

HEADLAMP

EXCEPT TAIWAN SPEC ILLUST NO. 1 OF 2(0501- )

GS30 35 43 460 | HEADLAMP ** Refer Fig ** Refer Fig 81110B - BULB(FOR HEADLAMP, NO.1) 81110L - BULB, DISCHARGE HEADLAMP 81116D - RIM, HEAD LAMP, RH 81125A - CORD, HEADLAMP, RH 81134 - GASKET, HEADLAMP 81135 - UNIT ASSY, HEADLAMP, RH 81156 - RIM, HEADLAMP, LH 81165 - CORD, HEADLAMP, LH 81175 - UNIT ASSY, HEADLAMP, LH 81189 - COVER, HEADLAMP 81193A - PROTECTOR, HEADLAMP, RH 81194A - PROTECTOR, HEADLAMP, LH 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) 81515B - SOCKET, FRONT TURN SIGNAL LAMP 81610F - BULB(FOR CLEARANCE LAMP) 81710F - BULB, FRONT SIDE MAKER LAMP ** Refer Fig ** Refer Fig 85661 - MOTOR, HEADLAMP LEVELING, RH 85662 - MOTOR, HEADLAMP LEVELING, LH 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
