LEXUS GS30 35 43 460 GRS195L-BETQHA / POWERTRAIN-CHASSIS / TRANSFER CASE EXTENSION HOUSING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

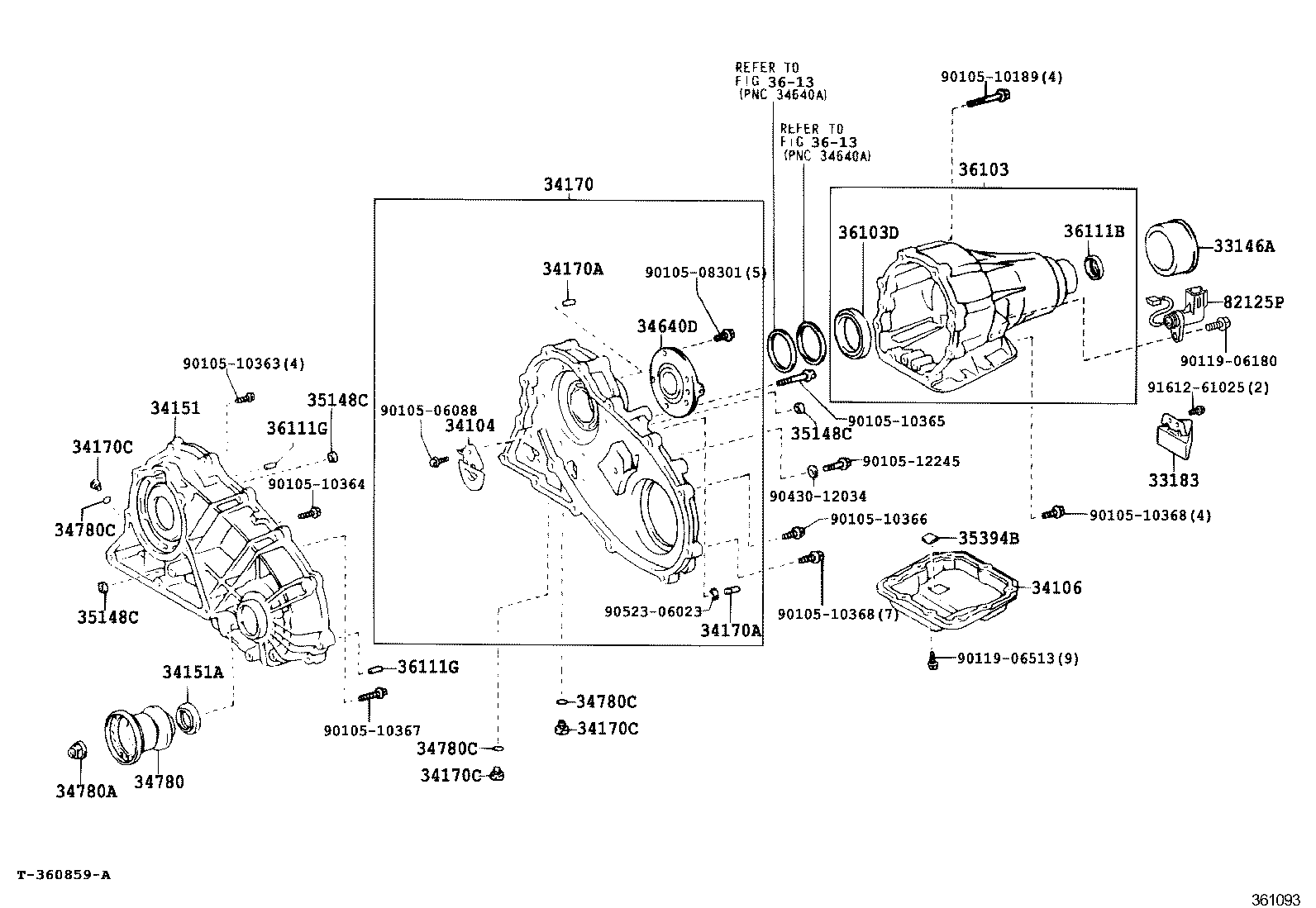

TRANSFER CASE EXTENSION HOUSING

(0501- )GRS195,196

GS30 35 43 460 | TRANSFER CASE EXTENSION HOUSING 33146A - DEFLECTOR, TRANSFER EXTENSION HOUSING DUST 33183 - DAMPER, TRANSFER DYNAMIC 34104 - VALVE SUB-ASSY, TRANSFER BAFFLE 34106 - PAN SUB-ASSY, TRANSFER OIL 34151 - CASE, TRANSFER CHAIN, FRONT 34151A - SEAL, OIL (FOR TRANSFER CHAIN CASE) 34170 - CASE ASSY, TRANSFER CHAIN, REAR 34170A - PIN, STRAIGHT (FOR TRANSFER CHAIN CASE) 34170A - PIN, STRAIGHT (FOR TRANSFER CHAIN CASE) 34170C - PLUG (FOR TRANSFER CHAIN CASE) 34170C - PLUG (FOR TRANSFER CHAIN CASE) 34170C - PLUG (FOR TRANSFER CHAIN CASE) 34640D - SUPPORT ASSY, TRANSFER CENTER 34780 - YOKE ASSY, FLANGE 34780A - NUT (FOR FLANGE YOKE) 34780C - RING, O (FOR FLANGE YOKE) 34780C - RING, O (FOR FLANGE YOKE) 34780C - RING, O (FOR FLANGE YOKE) 35148C - GASKET, GOVERNOR APPLY (FOR ATM TRANSFER CHAIN CASE) 35148C - GASKET, GOVERNOR APPLY (FOR ATM TRANSFER CHAIN CASE) 35148C - GASKET, GOVERNOR APPLY (FOR ATM TRANSFER CHAIN CASE) 35394B - MAGNET, OIL CLEANER (FOR TRANSFER) 36103 - CASE SUB-ASSY, TRANSFER 36103D - BEARING (FOR TRANSFER CASE) 36111B - SEAL, OIL (FOR TRANSFER CASE) 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) ** Refer Fig ** Refer Fig 82125P - TRANSMISSION WIRE(FOR TRANSFER) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
